Problem with representate the Stress ZX in hyperview

User: "Rafa0123"

Altair Community Member

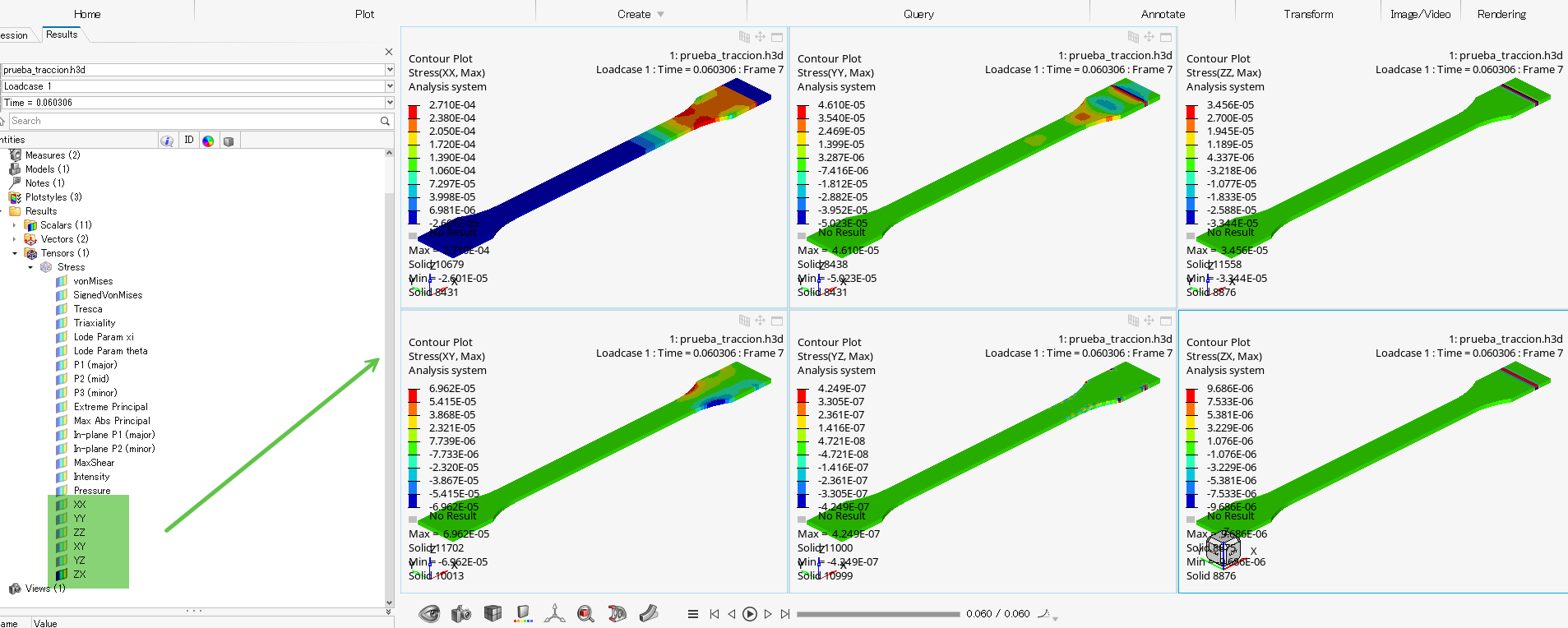

Hello everyone, I am new to the radios program and I have been trying to learn this tool for a short time. I am doing small simulations where I am subjecting to traction a specimen formed by solid hexahedrons to analyze the tensional state of the elements that form sigmaX,Y,Z,XY,YZ,ZX in hyperview. But I have problems when I see sigma ZX that does not represent it, I do not understand why. Could someone help me?

I attach the .hm model file.

Translated with DeepL.com (free version)

prueba_traccion.hm

Find more posts tagged with

Student Edition License

Sort by:

1 - 3 of 31

User: "Rafa0123"

Altair Community Member

OP

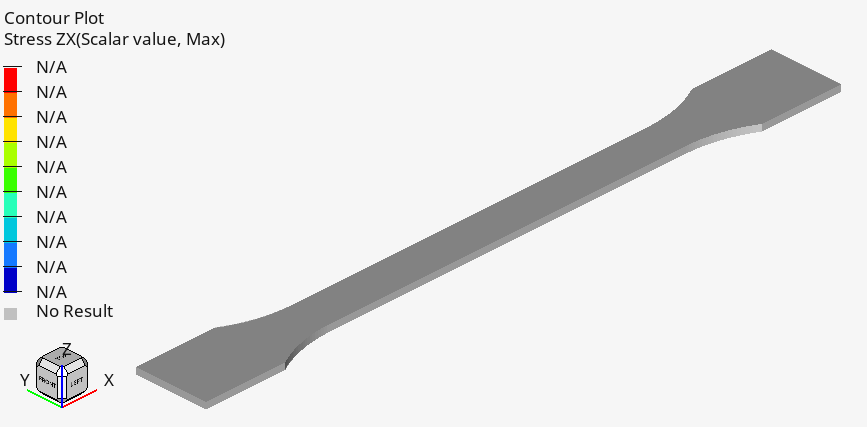

When I represent in hyperview the stress ZX it appears to me as if this variable is empty

User: "altair_fukuoka"

Altair Employee

Hi,

It seems an issue for /H3D/SOLID/SIGZX. Thank you for reporting it.

Could you try /H3D/SOLID/TENS/STRRESS instead?

https://help.altair.com/hwsolvers/rad/topics/solvers/rad/h3d_solid_engine_r.htm

prueba_traccion_0001.rad

(I also removed /H3D/ELEM/xxxx because these are not exist atleast Radioss 2024.0 and later.)

It outputs all components of stress tensor.

Regards,

User: "Rafa0123"

Altair Community Member

OP

Thank you very much for the help.
Yes, I have been testing the command you mentioned (/H3D/SOLID/TENS/STRRESS) and it works perfectly.
Thank you.

User: "Rafa0123"

Altair Community Member

OP

Thank you very much for the help.
Yes, I have been testing the command you mentioned (/H3D/SOLID/TENS/STRRESS) and it works perfectly.
Thank you.
