SPH Components Not Visible After Simulation in Altair Radioss

Thusalini

I am attempting to model the soil–tool interaction using Altair Radioss. The soil bin was meshed using SPH (Smoothed Particle Hydrodynamics) particles. The input files used for the setup are attached. However, after running the simulation, the SPH components are not visible in the results. I am unable to identify the cause of this issue. Could anyone please assist me in resolving it?

PierreChristophe_Altair

Hi,

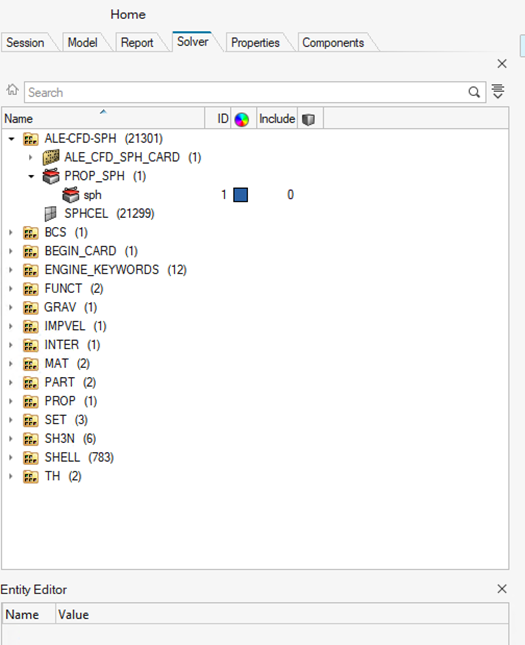

There is no input deck attached to your message, only a screenshot showing HM Solver Browser, which is quite limited.

Could you also share which Radioss version you are using and confirm you are using HyperView to visualize the results?

Would there be any failure defined? Any specific warning or messages in 0.out & 1.out files?
