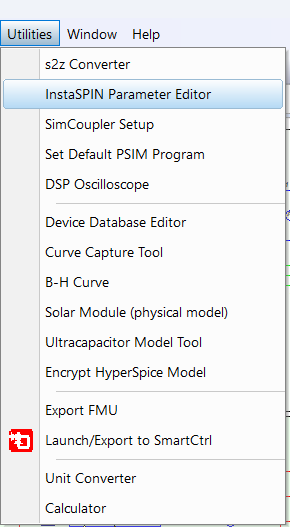

To connect PSIM with Hyperlink, there is no option shown in Utilities for me. For both PSIM and Hyperstudy I used Version 2025,1. Do anyone know how can i add the link to use PSIM models in Hyperstudy?
Hi @Ali_Esmaeilnia,

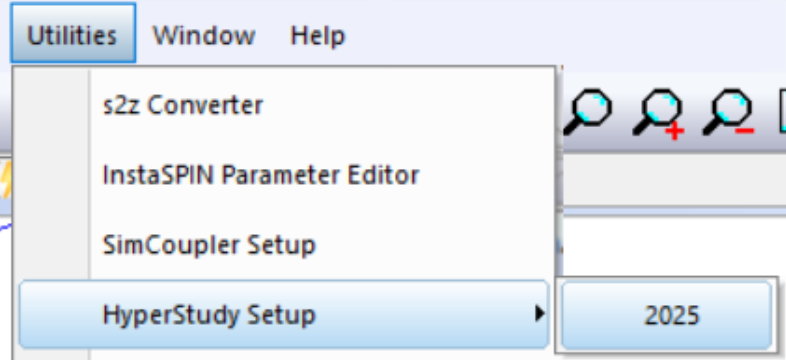

The Utilities tab should have HyperStudy icon by default (as shown below).
Since, it is not appearing in your case, I am inferring that HyperStudy is not installed on the machine. Have you installed HyperWorks desktop? If not, then, kindly do so.
If HyperWorks desktop has indeed been installed, then, @NikosDimitrakopoulos (PSIM Expert) should be able to suggest further on the query.
Many thanks.
Kind Regards
Garima Singh
Dear @Ali_Esmaeilnia,

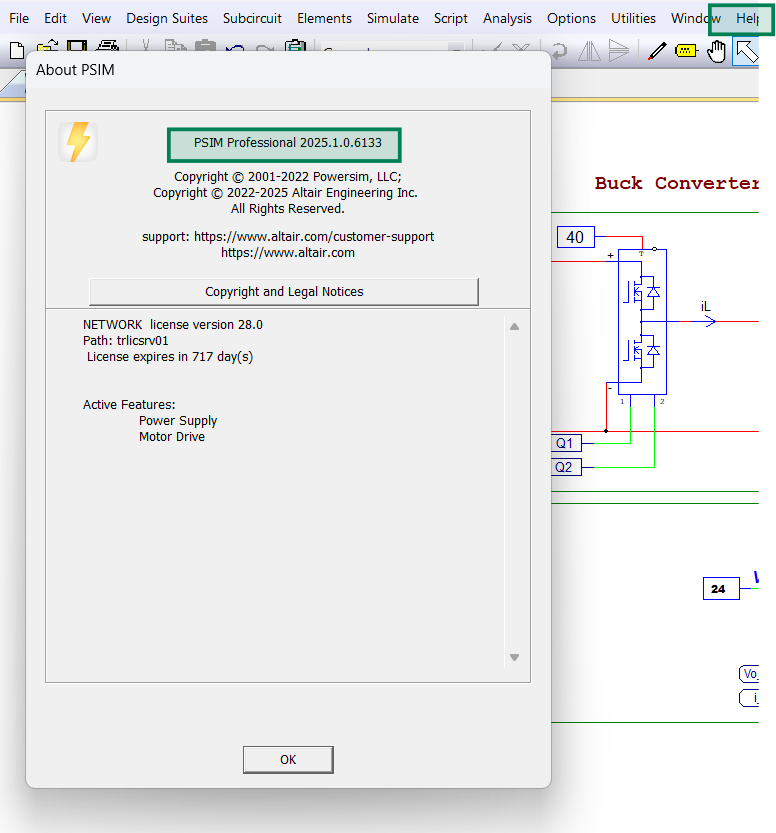

You can follow the steps of this tutorial to connect PSIM+HyperStudy:Accelerate your power converter design with PSIM & HyperStudy | Tutorial In the link above you will find a video covering the steps inside HSt and the example PSIM file. If you are using PSIM v2025.1, you should have the HyperStudy Setup option in the Utilities. Could you please navigate to Help » About in order to check your active PSIM version?

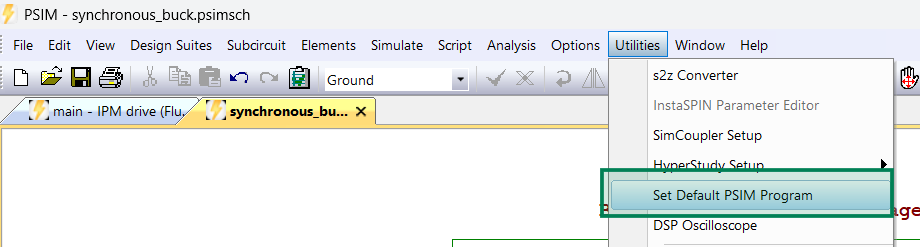

In order to make PSIM v2025.1 the default version, you should open v2025.1 and navigate to Utilities » Set Default PSIM Program.
Hope this helps! BR Nikos
