Condensation using CMS method(CMSMETH)

REDDYRAMU

Hello,

I want to create an EXB file that is condensed in Optistruct using CMSMETH which is later used in AVL excite MBS software. I have one example file but I don´t know how it was created and where (simlab or Hypermesh).

Can anyone help me with how to do it? For example I have an gear model as you can see in tha below image in which the center nodes are attached to the structure using RBE3 elements and I want condense entire model to that two nodes.

Thank you and best regards

solon

Hello,

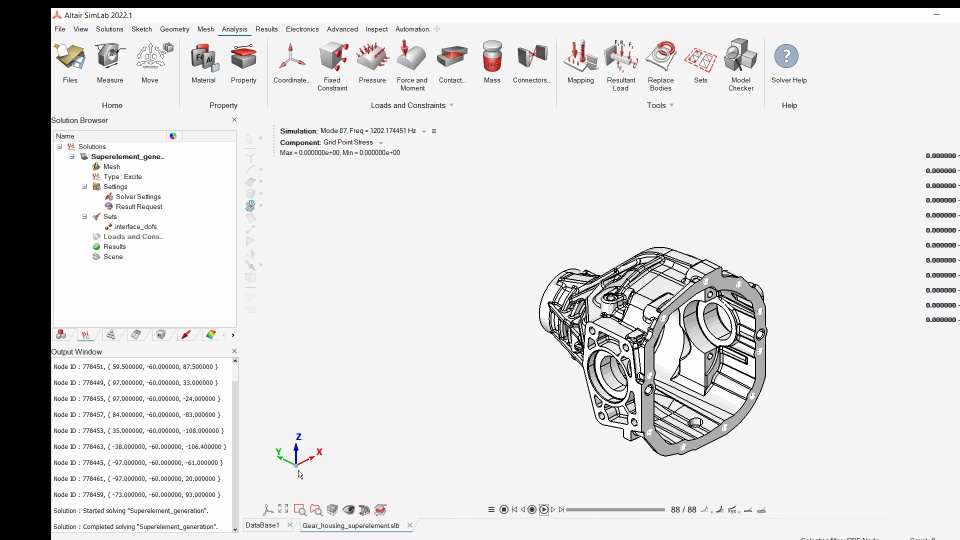

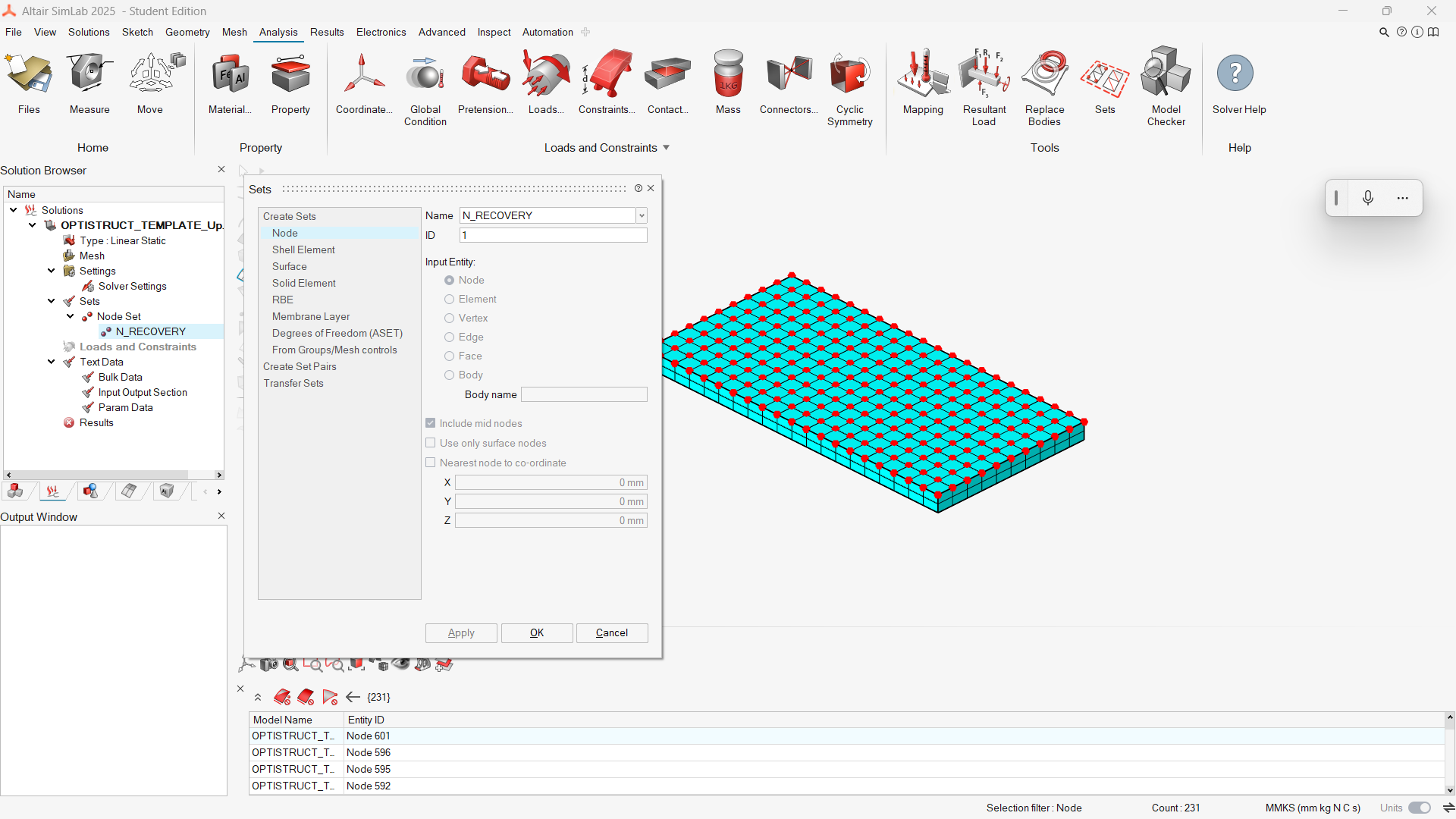

You can refer to the tutorial bellow for Simlab:

https://altair-2.wistia.com/medias/o94aoyzjpn

For Hypermesh:

https://help.altair.com/hwsolvers/os/topics/solvers/os/hw_reduced_structure_by_superelement_implementation_intro_r.htm
