motionview soft soil

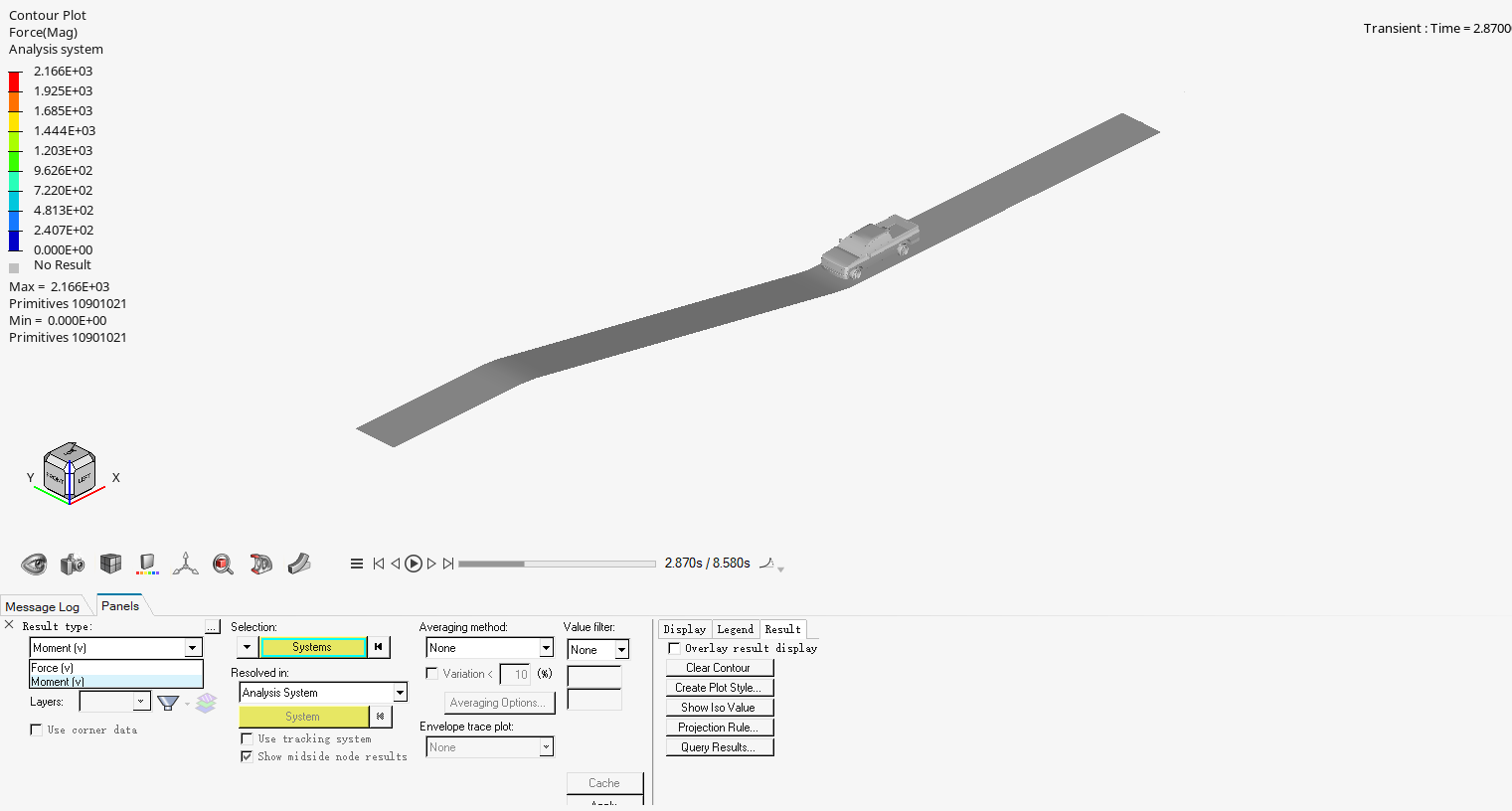

Hi all, I am having some problems with soft soil simulation using motionview2024. I have created a ramp terrain using my own edited .crg file, but after the simulation run is completed as shown below I am unable to visualise the road deformation when using hyperview post-processing, there is no option for road deformation in the drop down menu and I don't find the output of a few specific parameters for soft soils as mentioned in the figure, may I ask what this is? What is the reason for this, thank you very much!
Find more posts tagged with
Altair EmployeeHello @xiejiyin,

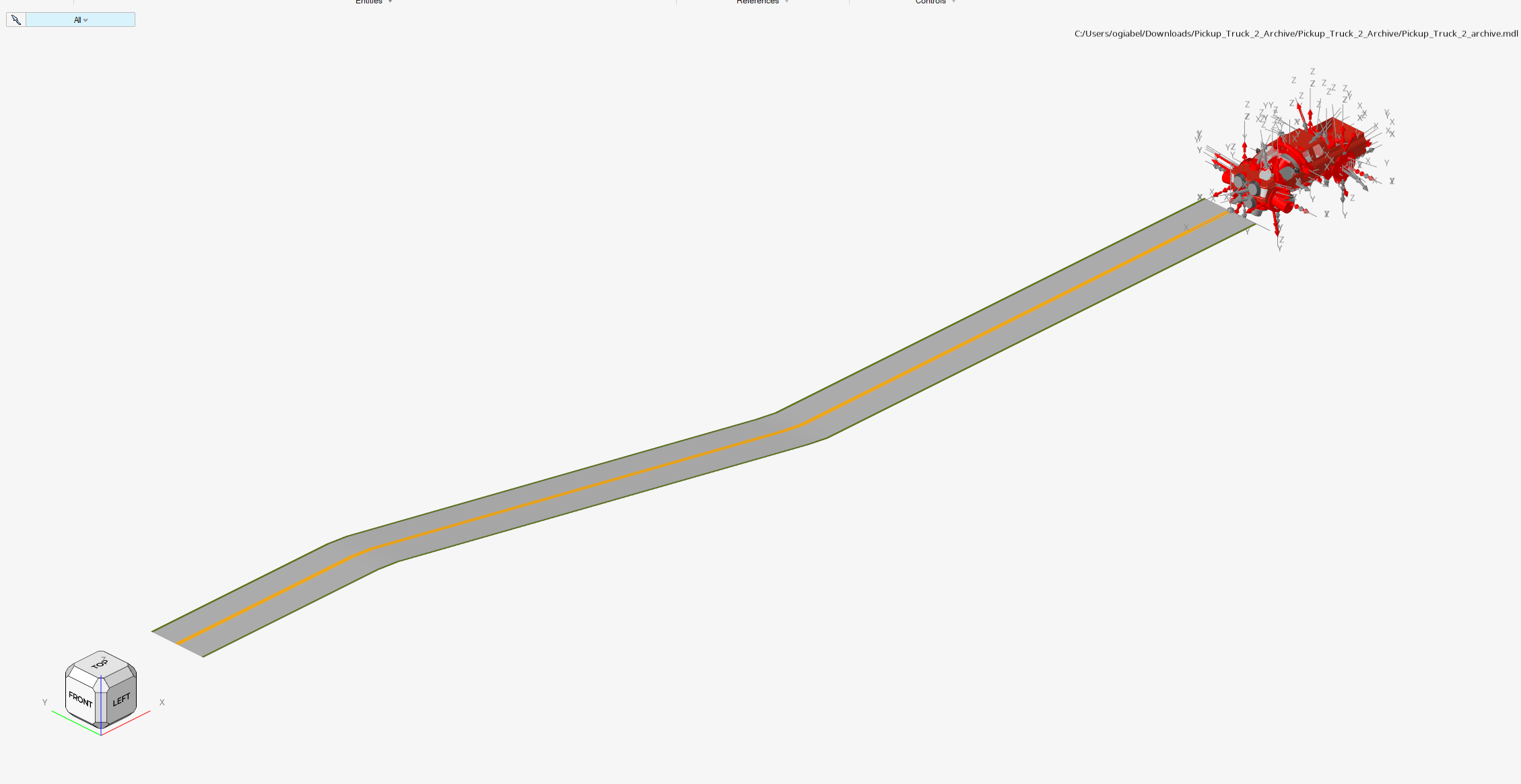

In your model I see that road graphics haven't loaded properly to represent a soft soil road.

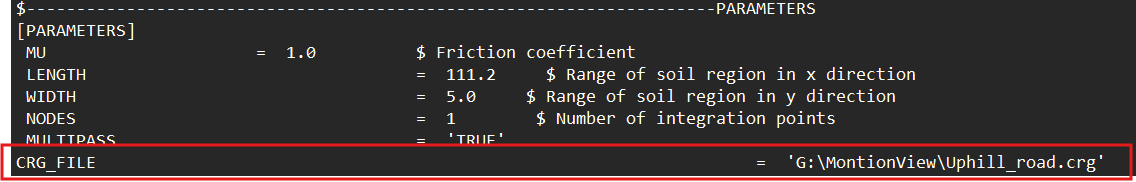

Before using the road tool to create the road graphics, make sure that the path for the crg file in the rdf file is valid. Below is the one that you are using.

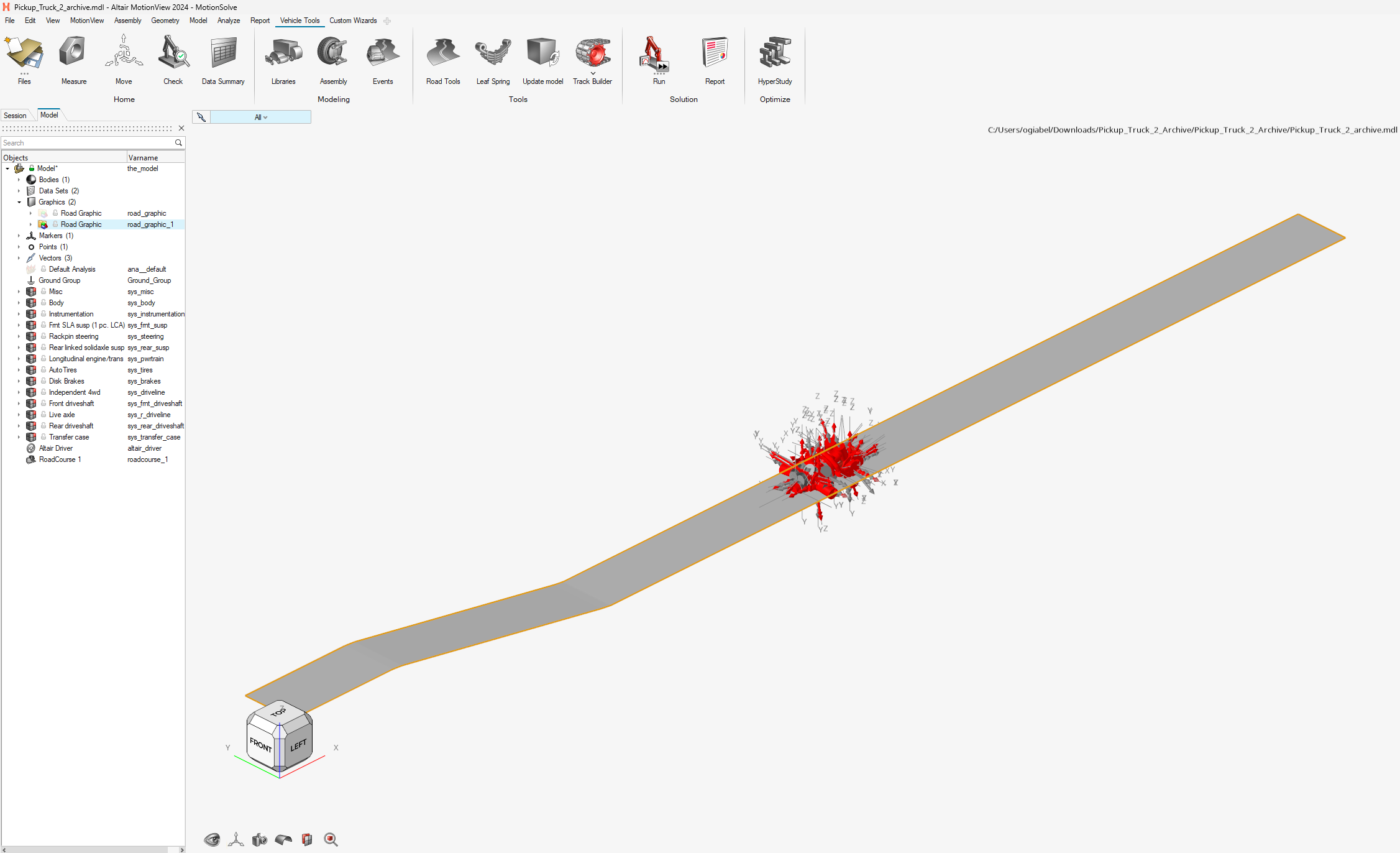

I update the path to a path in my PC and then I used the rdf in the road tool. After changing the reference marker from Global to Road reference marker front this is what the soft soil road graphics look like in MotionView. The previous Road Graphic was automatically deactivated when I loaded the new one (you can also delete it).

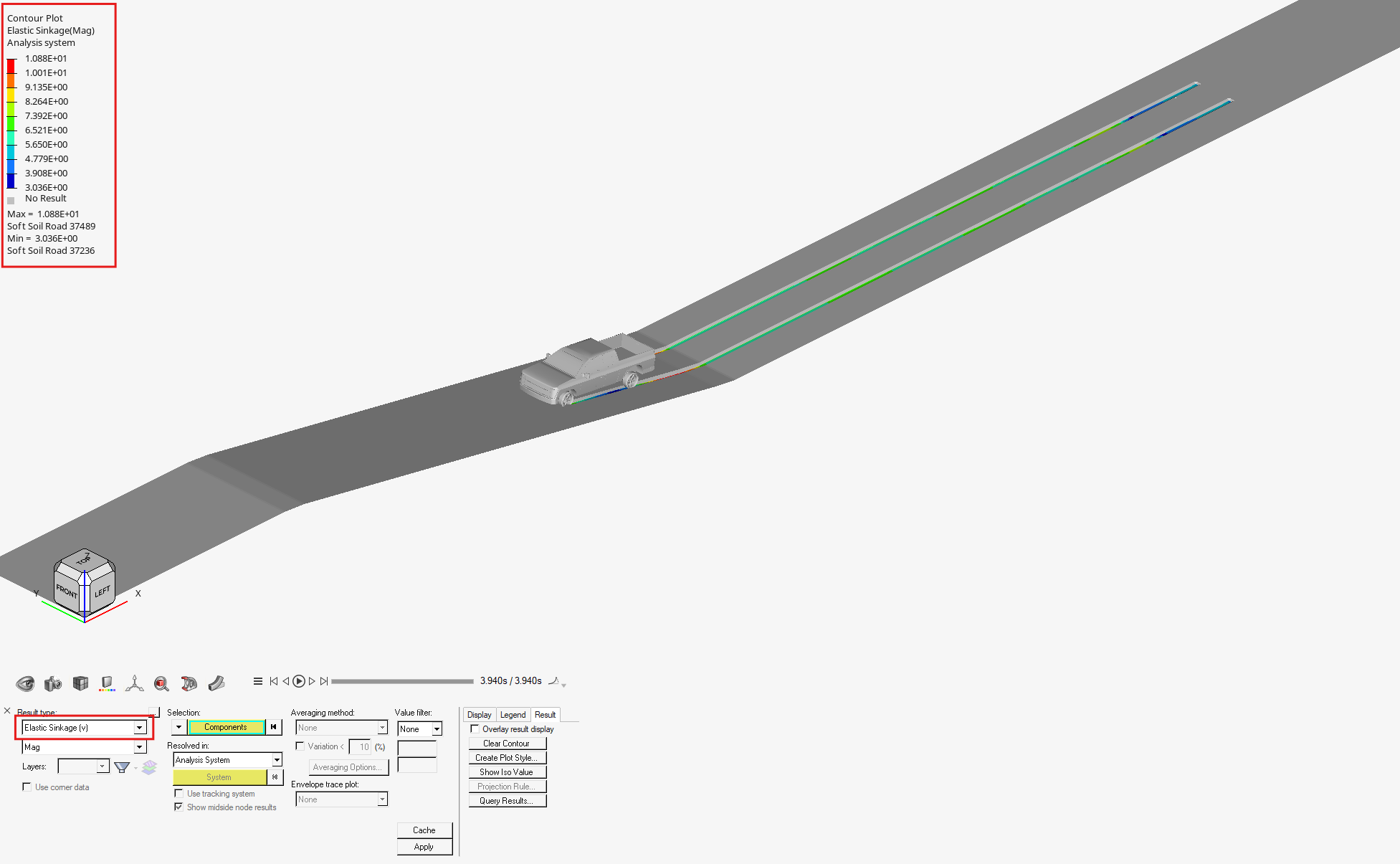

Soft soil results will be available now.
Hope this helps!
Best regards,
Orestes
Hello @xiejiyin,
In your model I see that road graphics haven't loaded properly to represent a soft soil road.
Before using the road tool to create the road graphics, make sure that the path for the crg file in the rdf file is valid. Below is the one that you are using.
I update the path to a path in my PC and then I used the rdf in the road tool. After changing the reference marker from Global to Road reference marker front this is what the soft soil road graphics look like in MotionView. The previous Road Graphic was automatically deactivated when I loaded the new one (you can also delete it).
Soft soil results will be available now.
Hope this helps!
Best regards,
Orestes

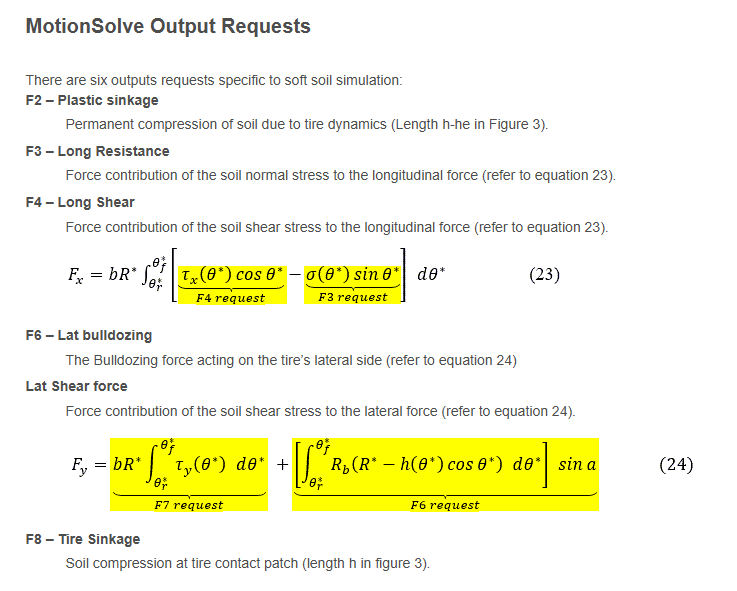

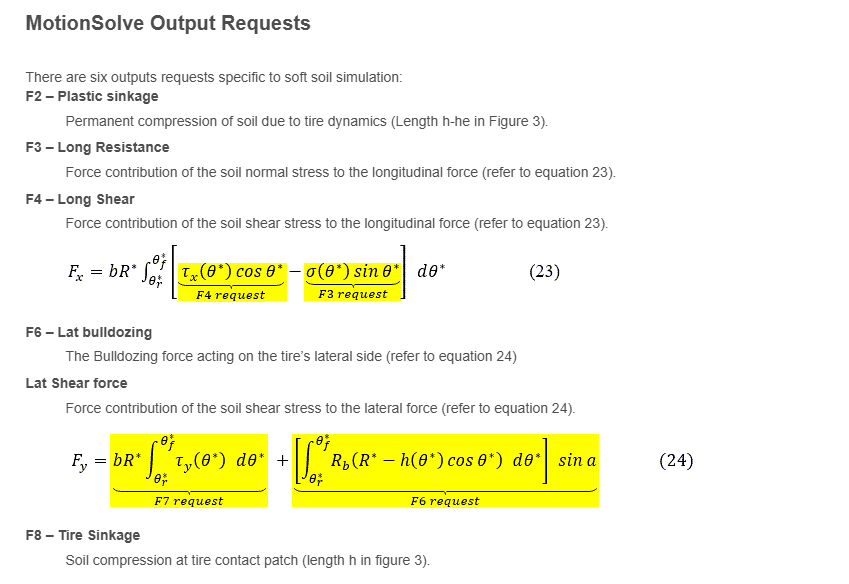

Thank you very much for your help, I have solved the problem, also I would like to get the output of these parameters in the graph what do I need to do, thanks again!
You are welcome! I have described how to create graphs from the result files on the other community post.
Thanks,
Orestes
