DEM 지오메트리 불러오기 관련 문의

JaeSeoHwang

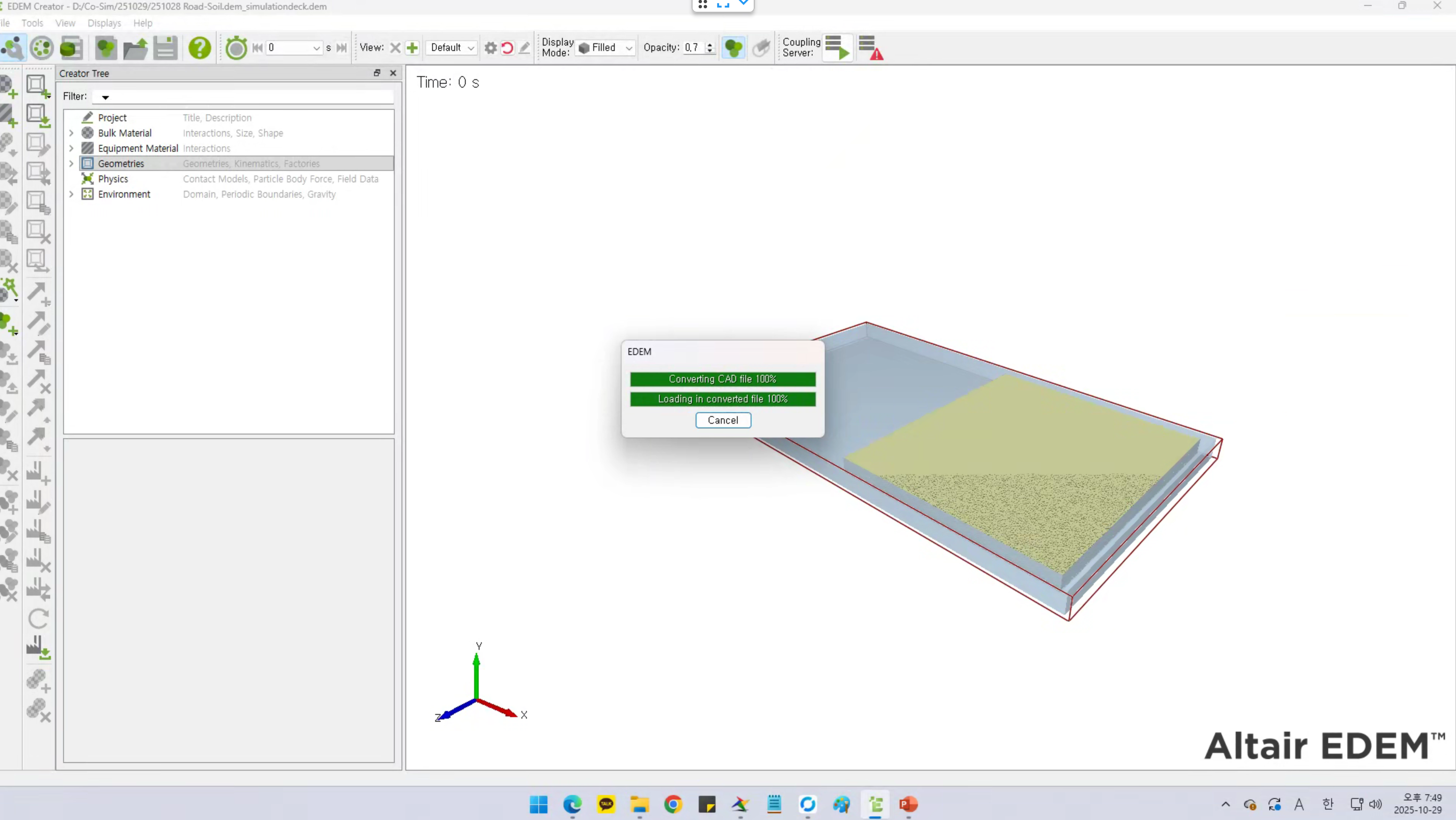

Description: CAD에서 그려진 부품 도면을 불러오기 했을때 사진과 같이 100%에 도달은 했으나 이 상태에서 무한로딩이 걸리는 에러가 발생합니다.

혹시 해당 문제 해결방법이 있을지 문의드립니다.

감사합니다.

황재서 드림

Product/Topic Name : EDEM 2022

*Note from Community Team - Once you receive a satisfactory answer on your question, kindly mark your answers as "Accepted" so it can help others with similar problems. Thanks.



Stephen Cole

Hi,

Could you confirm which version of EDEM you are using, does this occur with the latest 2025.1.1 version?

Sometimes if the CAD import fails then the import process still runs in the background. Can you try restarting the computer to check if it still occurs.

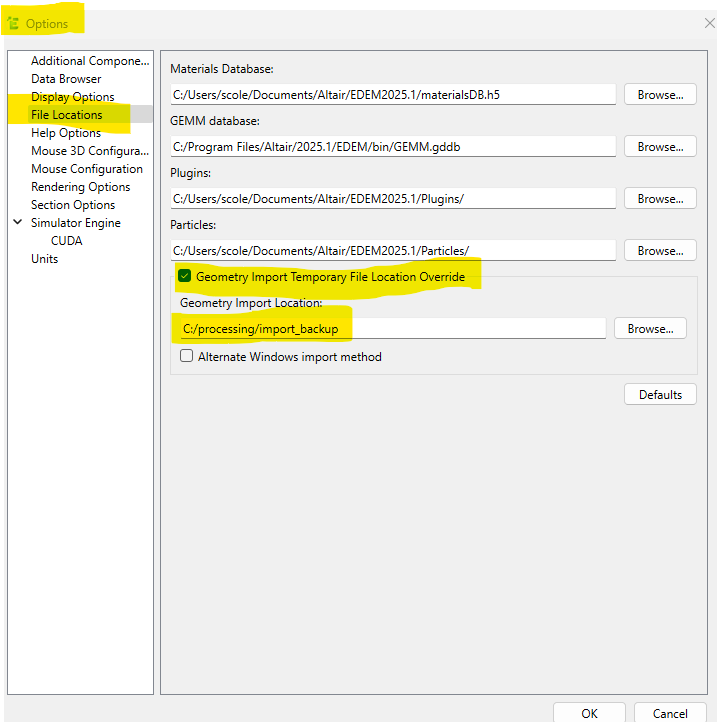

If the problem still occurs can you try changing the Geometry Import Temporary File Location Override option in EDEM Tools > Options . You can specify any folder so long as you have read/write permissions:

Regards

Stephen
