Hyperworks 2022.1 run options analyze to optimization

Ezequiel

Hi, I'm doing the tutorial:

Track 2: Design Composite Structures with Simulation 3 Composite Optimization

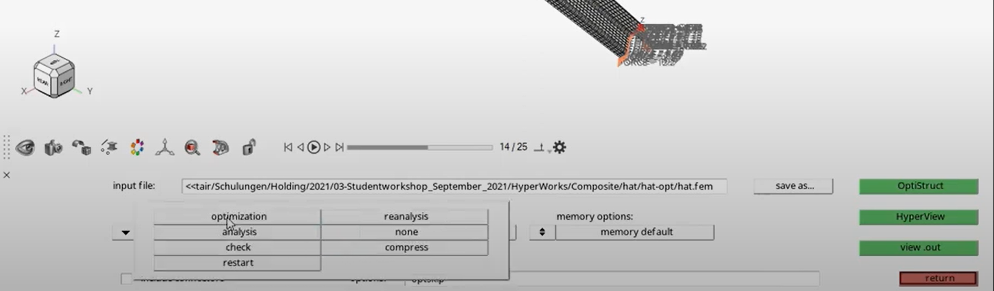

While doing the free-size optimization, changing the run options from analyze to optimization seems possible. I tried with 2022.1, and it's clearly not possible in this menu.

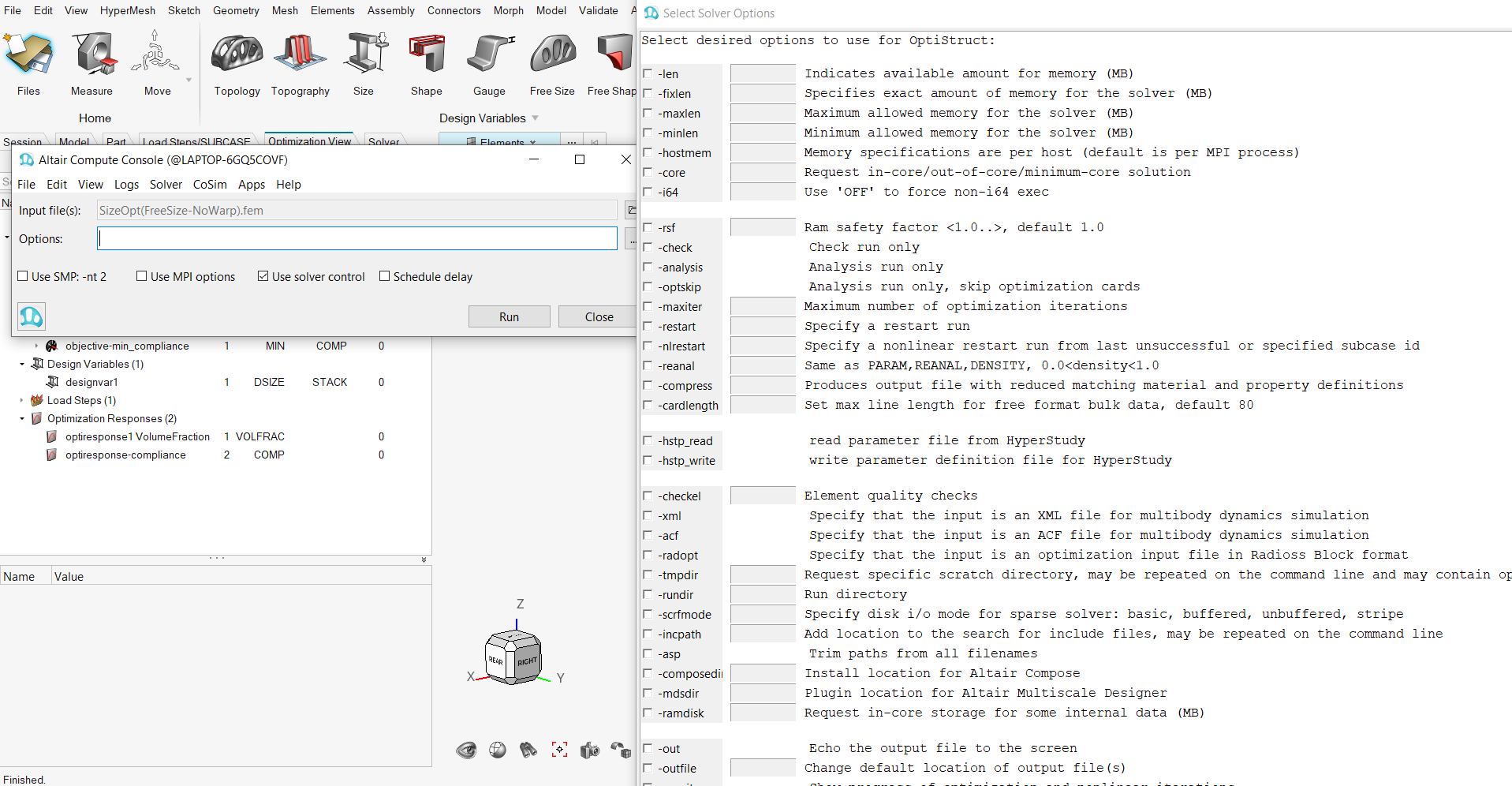

I was looking at the Solver Options but I don't see an option for this.

Could you help me please?

Rajashri_Saha

Hi,

In Solver option, you have -optskip and -analysis to do only analysis run but there is no option for optimization to activate. you can just directly submit the run and it will do optimization, no need for any method selection like in panel as in your 1st pic.

Thanks

Rajashri
