Sampling rate and stress plot

Penarol

Hi everyone,

I would like to ask two questions:

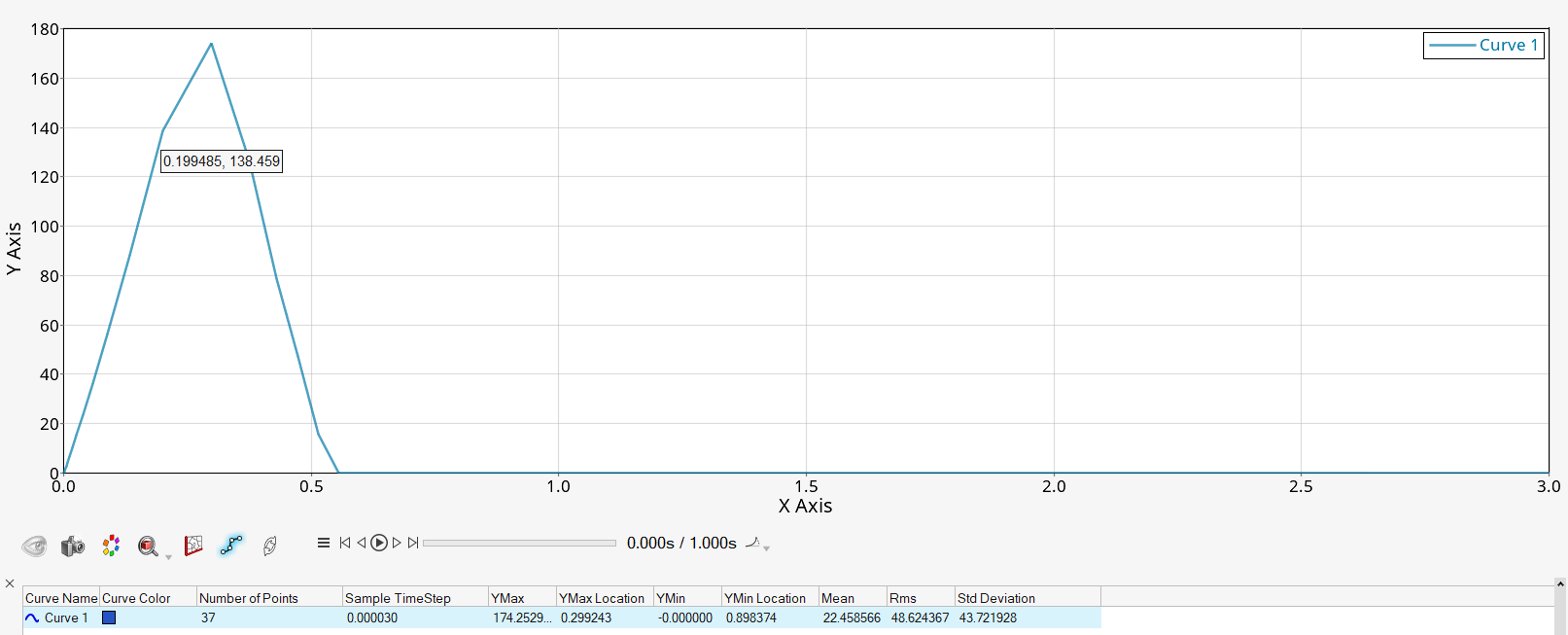

I'm trying to increment the sampling rate for acquiring points of the curve by increasing NLOUT, NINT but I'm still getting the same amount of points. Do you know how to properly to this in order to have a smoother curve?

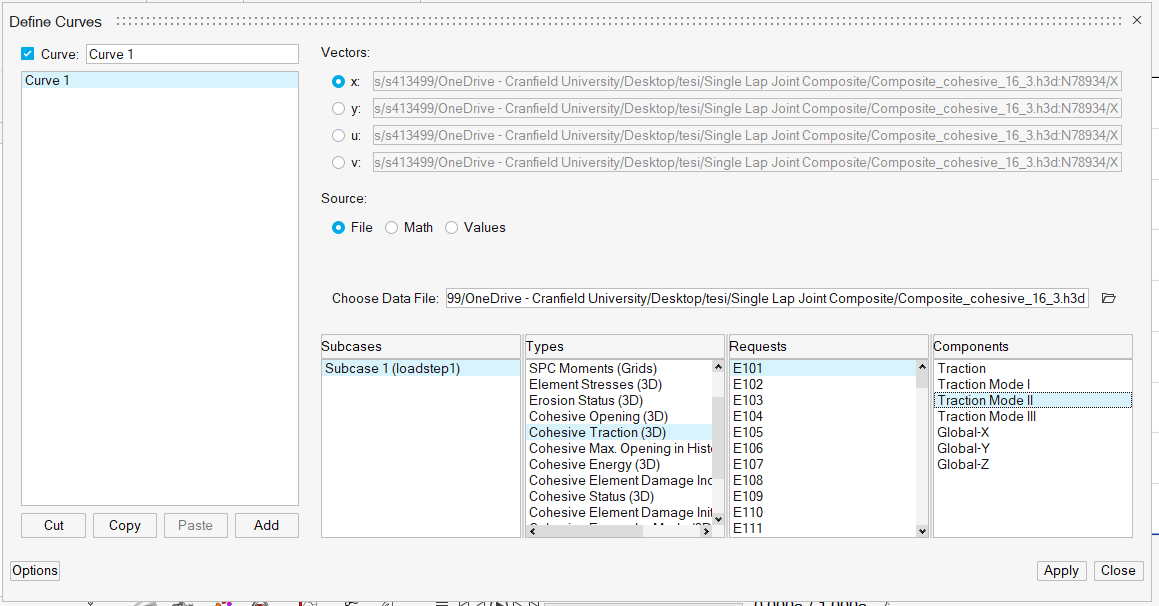

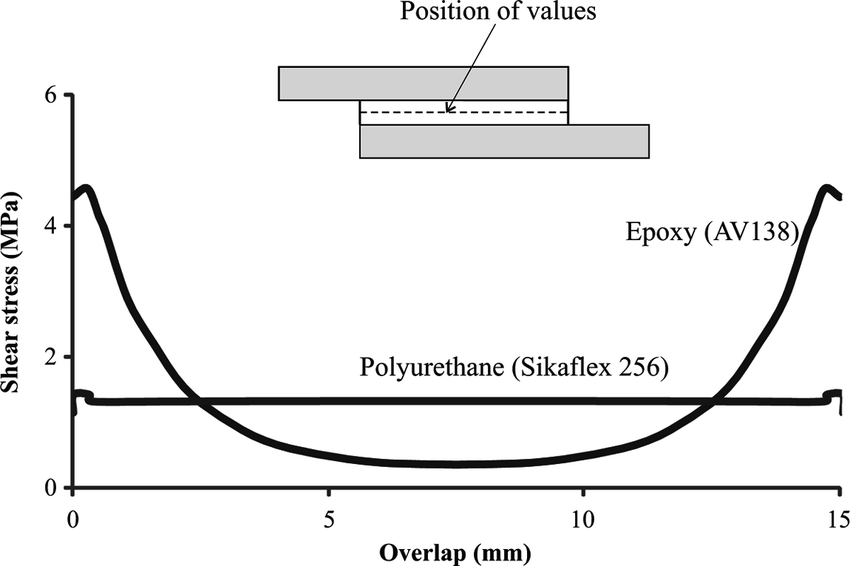

In addition, I would like to obtain a plot like this below but I'm just able to plot the stress on a single element

I would really apreciate your help, thank you so much!

Adriano_Koga

hi,

in order to get a fixed increment, refer to this post, using NLOUT, TIME option. By using this, you enforce the output to specific increments:

y

https://community.altair.com/discussion/39756/fixed-time-point-output-with-nlout-using-hypermesh-optistruct

For your second question refer to this approach:

https://community.altair.com/discussion/39685/dealing-with-relative-outputs-in-hyperview
