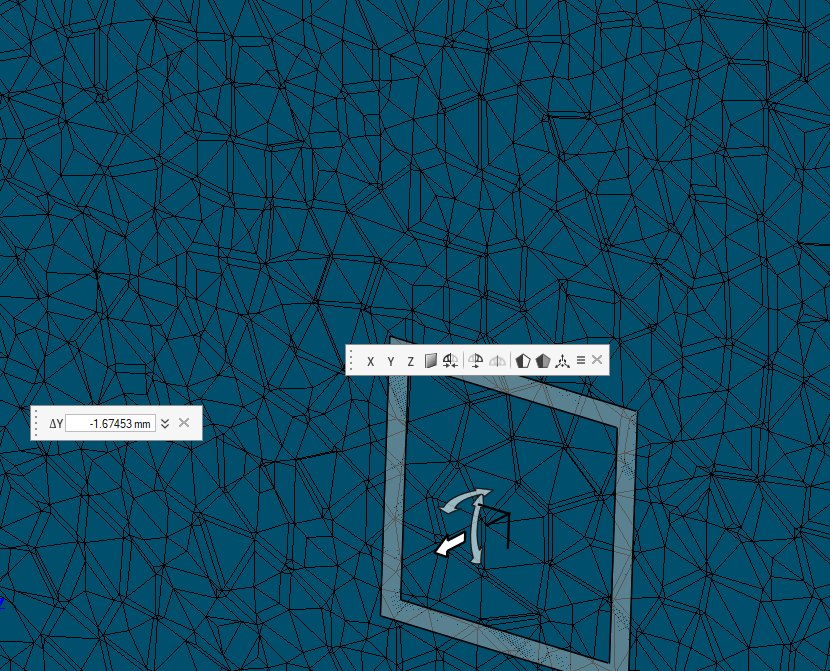

Hi, im a new in this software and i have a question, how do i improve my mesh, my size is a 0.02mm in mesh and volumen mesh, but my internal mesh look like this.
Hi there,
Is this for a CFD analysis?, depending on your answer I can let you know some options.
I don't know what software you're using, but by deafult in general, a growth ratio is defined at the internal elements when meshing is performed.
Because of that you might have a fine mesh on the outside, and a larger mesh size on the inside.
There are ways of improving and controlling that.
But the question is: is it really needed to have better control on the inner elements for your application?
Perhaps it's not as necessary in the application, but I'd like to be able to improve the internal meshes to achieve better results. However, I don't know how to improve them. Could you explain some methods to improve them? In this case, I'm using Simlab for fluid analysis.

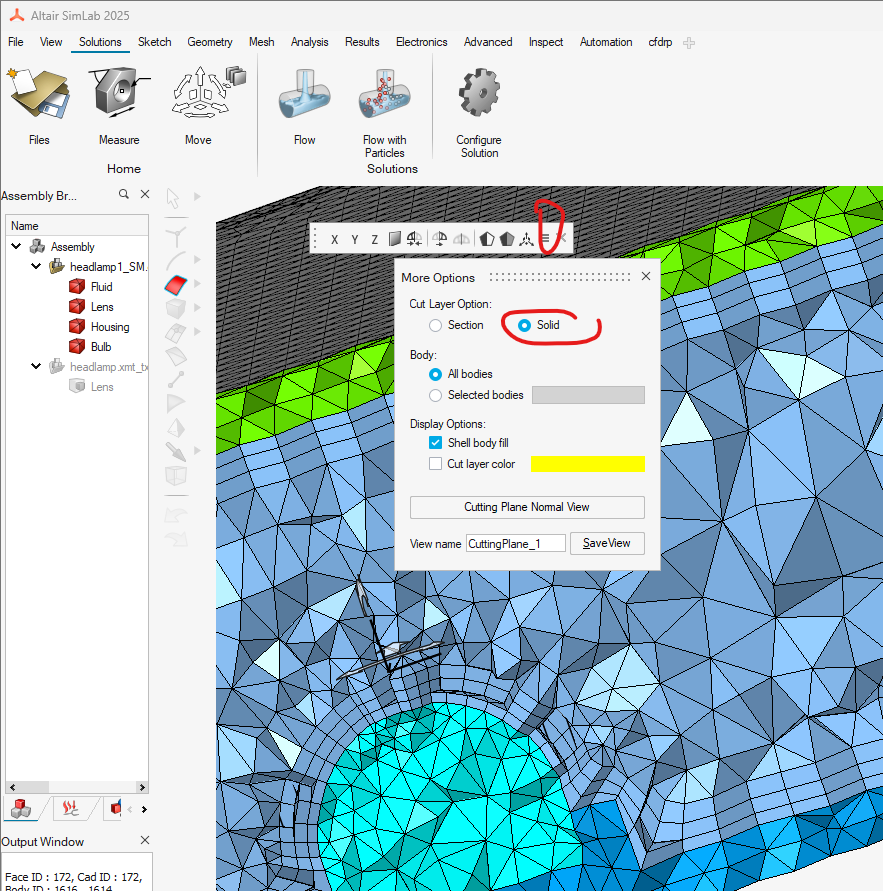

It appears that you are looking at the cut section, where elements are being cut. You can avoid that by using the "solid" cut option in SimLab.
Then post a screenshot of the mesh, so that we get a better idea of how the mesh looks and where you think, you might want to improve it.
