How to do Tensorflow image recognition?
MarkB
New Altair Community Member
I want to load "fashion_mnist" dataset from "tensorflow_datasets" and process it with "Deep Learning" extension.
The original "fashion_mnist" data is (60000,(28,28,1),(1)) so, I converted it to the BATCH/ID Tensor by "Execute Python":
If I want to set Batch on 32 or 64. How to reshape the tensor with Rapidminer blocks?
The original "fashion_mnist" data is (60000,(28,28,1),(1)) so, I converted it to the BATCH/ID Tensor by "Execute Python":
import pandas as pd import numpy as np import tensorflow as tf import tensorflow_datasets as tfds tfds.disable_progress_bar() image_size = 28 def normalize_img(row): img = row.image.reshape((image_size,image_size))/255.0 img = np.append(img, [range(image_size)], axis=0) img = np.append(img, [np.ones(image_size)*row.name], axis=0) img = np.append(img, [np.ones(image_size)*row.label], axis=0) row.image = img.T return row def preprocess_df(df): df.image = df.apply(normalize_img, axis=1) df = pd.DataFrame(np.dstack(df.image.to_numpy()).transpose(2,0,1).reshape(df.shape[0]*image_size,image_size+3)) df.rename(columns={28: 'id', 29:'batch', 30:'label'}, inplace=True) return df def rm_main(): dataset, metadata = tfds.load('fashion_mnist', shuffle_files=True, as_supervised=True, with_info=True) df_train = tfds.as_dataframe(dataset['train'], metadata) df_test = tfds.as_dataframe(dataset['test'], metadata) df_train = preprocess_df(df_train) df_test = preprocess_df(df_test) return df_train, df_testFirst of all, is it correct format?
If I want to set Batch on 32 or 64. How to reshape the tensor with Rapidminer blocks?

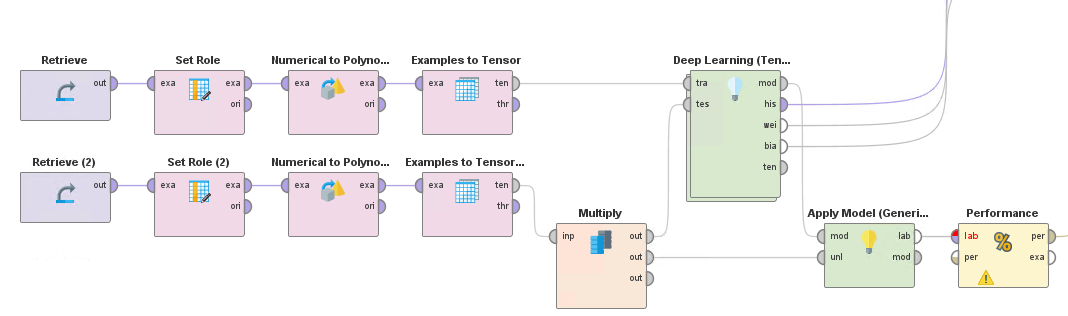

After that I converted it to Tensor, built model with "Deep Learning (Tensor)", receive the warnings:
WARNING: Couldn't update network in epoch x
Finally, when applied it with "Apply Model (Generic)" I receive an error:
Process failed: operator cannot be executed (getColumn() can be called on 2D arrays only).
WARNING: Couldn't update network in epoch x
Finally, when applied it with "Apply Model (Generic)" I receive an error:
Process failed: operator cannot be executed (getColumn() can be called on 2D arrays only).
