Add a Spot on Cylindrical Face with Altair SimSolid
Evan Brennan_20557
New Altair Community Member

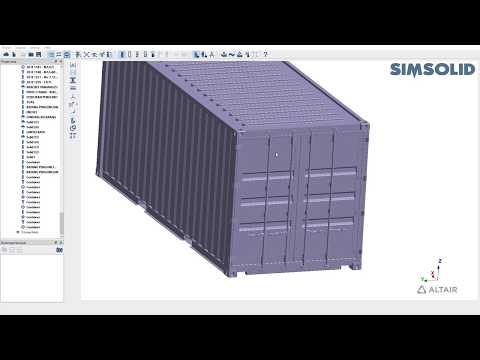

This video demonstrates how to use the Spots on Cylinder tool in SimSolid. Spots are used to create local areas where connections or boundary conditions can be applied. The Spots on Cylinder tool allows for creation of these local areas on the inner or outer faces of cylinders. Watch this workflow to see how to:
- Isolate parts of interest in the assembly
- Locate cylindrical faces
- Apply a spot to a cylinder
https://www.youtube.com/watch?v=YmovrTxdy4A0
