I am encountering a problem with the sublaminate, more specifically when making the interface to join them together. I have followed the steps in the video https://altairuniversity.com/learning-library/creating-sub-laminates-and-interface-laminates-using-hypermesh/?wvideo=b96z1m88gf, but I do not get the correct results.

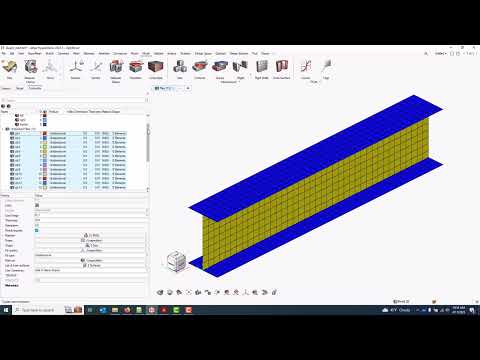

I select the sublaminates that I want to join by means of the interface (Picture 1).Once created it only recognizes three of the six sublaminates that have been inserted (Picture 2 and 3).
I would be very grateful if you could tell me how I can solve this problem.
Hello Mairena,
I recommend you start by taking a look at this youtube series on composite modeling in Hyperworks.
https://www.youtube.com/playlist?list=PLGNemB0NFb0BcNU7CMkFcgrGRBVGMrwPj
Specifically the sublaminate section can be found in this video
https://www.youtube.com/watch?v=GxwktYhmH6c&list=PLGNemB0NFb0BcNU7CMkFcgrGRBVGMrwPj&index=5
Thanks
jason
