script to draw curve from a file

Atul Hande_22365

Hello All,

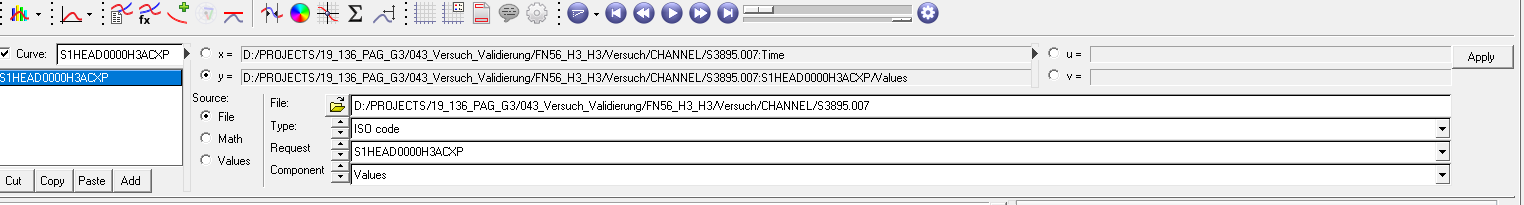

I have a test data attached in a file, i can plot it in hypergaph by manually selecting the file/component/request etc...

I want to do it via a tcl script, i have done it until adding a curve and adding the file information to the vectors but did not succeed in displaying the curve in the window.



can you help me by creating a curve from the attached file using a tcl script(assuming the file is saved as a variable )




S3895_007.txt

Adriano Koga_20259

Have you tried using the commands 'Draw'?



p${PageNum}w${WindowNum}_cv1_x SetType "file"
p${PageNum}w${WindowNum}_cv1_y SetType "file"

p${PageNum}w${WindowNum}_cv1_x SetFilename $input_file
p${PageNum}w${WindowNum}_cv1_y SetFilename $input_file

p${PageNum}w${WindowNum}_cv1_x SetDataType $X_Type
p${PageNum}w${WindowNum}_cv1_x SetRequest $X_Request
p${PageNum}w${WindowNum}_cv1_x SetComponent $X_Component

p${PageNum}w${WindowNum}_cv1_y SetDataType $Y_Type
p${PageNum}w${WindowNum}_cv1_y SetRequest $Y_Request
p${PageNum}w${WindowNum}_cv1_y SetComponent $Y_Component

#p${PageNum}w${WindowNum}_cv1_$ui SetName "peel_Target"

p${PageNum}w${WindowNum}cl_$ui Recalculate
p${PageNum}w${WindowNum}cl_$ui Autoscale
p${PageNum}w${WindowNum}cl_$ui Draw
