Error #15 negative jacobian

David_21639
David_21639 New Altair Community Member
edited June 2021 in Community Q&A

Hi,

I want to calculate my meshed model, but the Program tells me that there is a Error#15, negative jacobian at one of my elements.

Tried to remesh it a couple times... but it doesn´t work...

What can I do to fix this problem?

I tried to set Param<Checkel_V1 to "no" but that didn´t solve my problem.



sincerely,

David

Tagged:

Answers

  • Adriano A. Koga
    Adriano A. Koga
    Altair Employee
    edited June 2021

    probably there's some part of your model that is failing the jacobian quality test, that even checkel_no can't ignore it.

    Can you check your model for failed elements (F10 >> check elements)?

    Find the ones with poor jacobian values and correct that region in the geometry or in the mesh directly, depending on your HM skills.

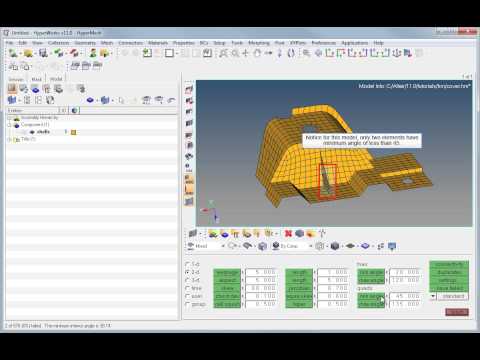

    A video showing how to check and identify the failed elems:

    https://www.youtube.com/watch?v=ldWR7RNLcgg
