1D-2D mesh

Amith Anoop Kumar

I want to convert my 1D mesh to 2d mesh. Is there a way we can convert 1D mesh to 2d mesh or generate a 2d mesh on a line sketch

Hoping for your inputs

Thank you

Hakan_20716

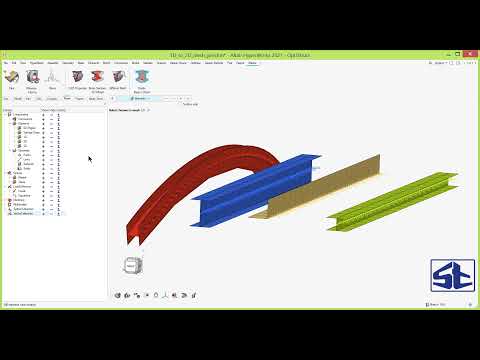

You can convert 1D beam elements to 2D elements. You can watch the video below.

https://www.youtube.com/watch?v=gzgfjNWx-dY

Amith Anoop Kumar

Hakan_21046 said:

You can convert 1D beam elements to 2D elements. You can watch the video below.

https://www.youtube.com/watch?v=gzgfjNWx-dY

I didnt understand much due to language issue so if you don't mind could you just brief like what to do

Hakan_20716

Amith Anoop Kumar said:

I didnt understand much due to language issue so if you don't mind could you just brief like what to do

You can check the Help section

https://2021.help.altair.com/2021/hwdesktop/hwx/topics/pre_processing/marine/beams_convert_to_shells_surfaces_t.htm#beams_convert_to_shells_surfaces_t
