Force vs Displacement Curve
Altair EmployeeHello George,

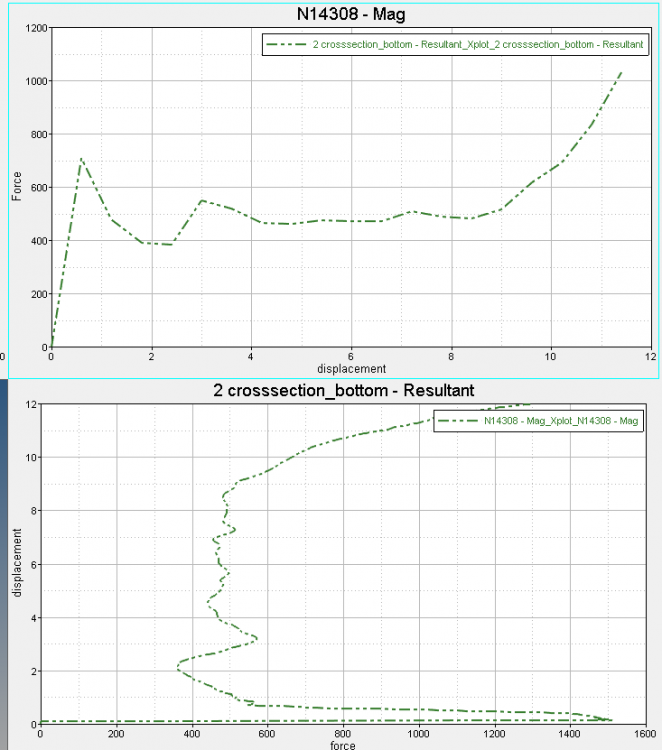

Thanks for your eply. The error with the values is still persisting. I had choosen displacemnt vs time curve as x axis and force vs time as y axis.. It still shows me lower values for the force. When i do it dispalcement vs force with displacemnt as y axis and force as x axis. It plots the correct values for the force.
<?xml version="1.0" encoding="UTF-8"?>
Find more posts tagged with
Sort by:
1 - 3 of
31
Altair EmployeeSorry, got the solution for excel sheet.
But the force vs displacement diagramm requires clarification.
Thanks in advance.
With Regards
Abhinav
Please refer attached cross plot video for Force Vs Disp plot.

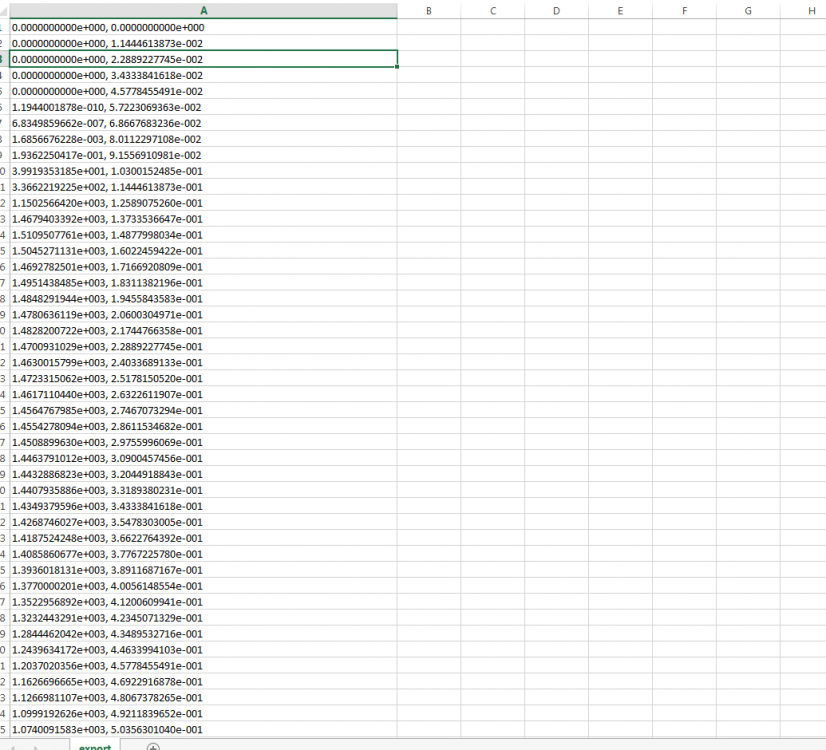

When i transfer through export, why are the values being showed in one column of excel sheet? is it normal?
