Decreasing Force Applied

Altair Forum User

Hello everyone,

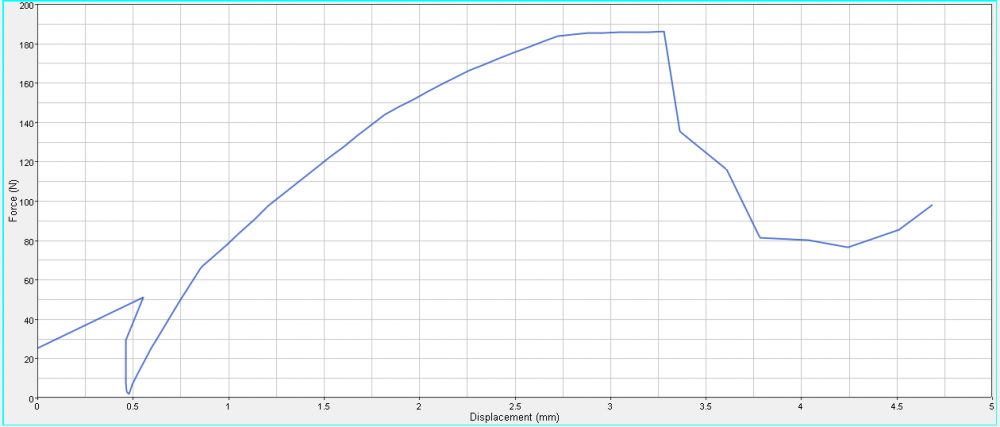

I have question regarding force vs displacement graph. Anyone know how come my result force vs displacement was as below.

<?xml version="1.0" encoding="UTF-8"?>

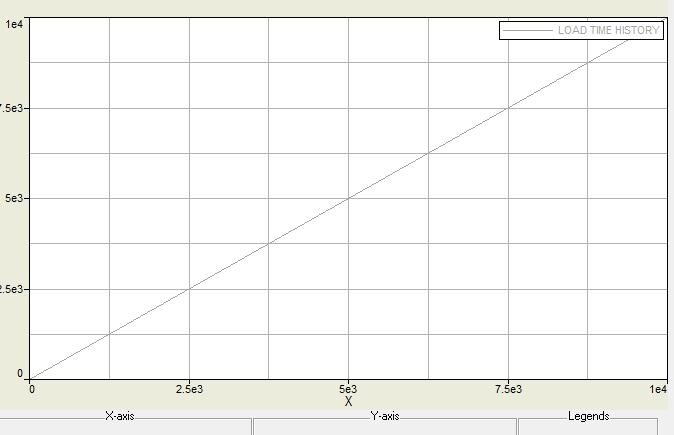

but i have ramp force vs time as below. Supposed to be the force is directly increasing but my force applied have decreased as time increased. what the problem actually? Thank you.


Find more posts tagged with

English

HyperGraph

Accepted answers

All comments

Rahul Rajan_21763

Which version of HyperWorks you are using at your end?If you are using Radioss solver then please share t01 & h3d file to check same at our end.
