How can add wire probe at the center of the patch transmission line here?[Feko v 2023.1]

sswh2

MIDE_PROJECT_FEKO_WIRE_PROBE_try_bend.cfx

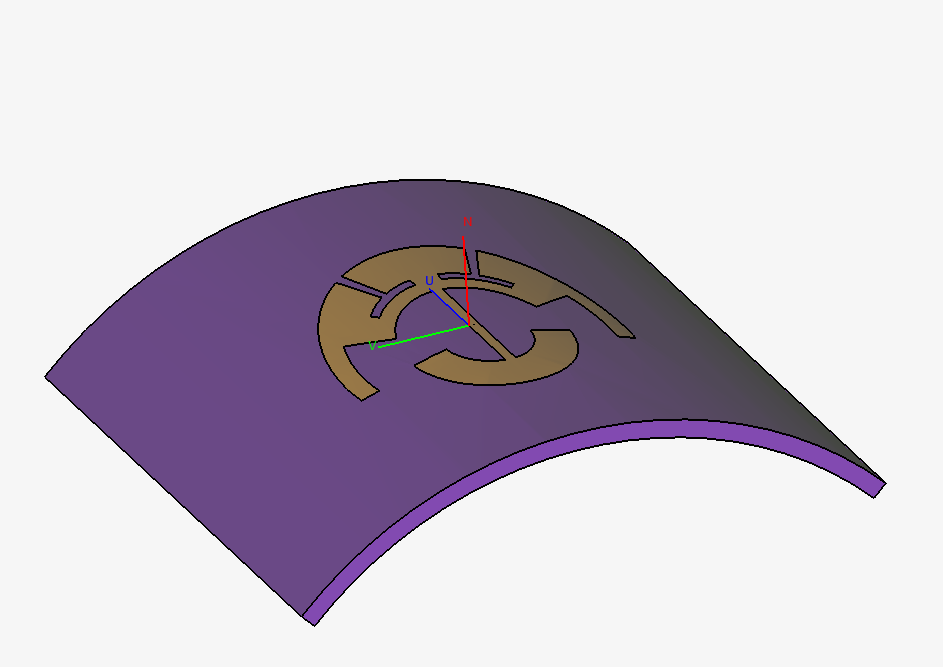

Here in this model, I have two problems

1. How to add a wire probe along the vertical line center of the patch? I can't create the line above the patch due to a coordinate problem.
2. How to remove the air gap coming inside the patch when I used "project" tab to bend above the substrate? you can see one corner of the patch has air gap.

Could anybody kindly fix this wire probe location and air gap?

Shannon_Mistry

Hi @sswh2 ,

When trying to project "default_Boss_Extrude4" on the "Split_back1" (cylinder), remove the thickness from "default_Boss_Extrude4", so that a single surface is being projected instead of a volume. This will solve the issue of gap that you see.

To create a wire probe, it is best if you bring the geometry to (0,0,0) co-ordinates so that it is easier to create the wire.

mide-project-feko-wire-probe-try-bend_MODIFIED.cfx

Regards,

Shannon Mistry
