AC component measurement of a DC current

Hi,

I want to measure an AC component of a DC current at the DC Battery Bus. In physical experiment I can use a rogwoski coil and put the oscilloscope in AC coupled mode to extract the AC current at a DC bus. I am trying to get a similar measurement in PSIM simulation.

The current probes available in PSIM includes the DC component. I would like to see the AC component of the current filtering the DC component completely.

Is there any probing arrangements PSIM has? Any suggestion will be appreciated.

Find more posts tagged with

PSIM

Accepted answers

All comments

VSiddhartha

Hi @ashikamineee08

Yes, you can measure AC component of signal by using Oscilloscopes in PSIM.

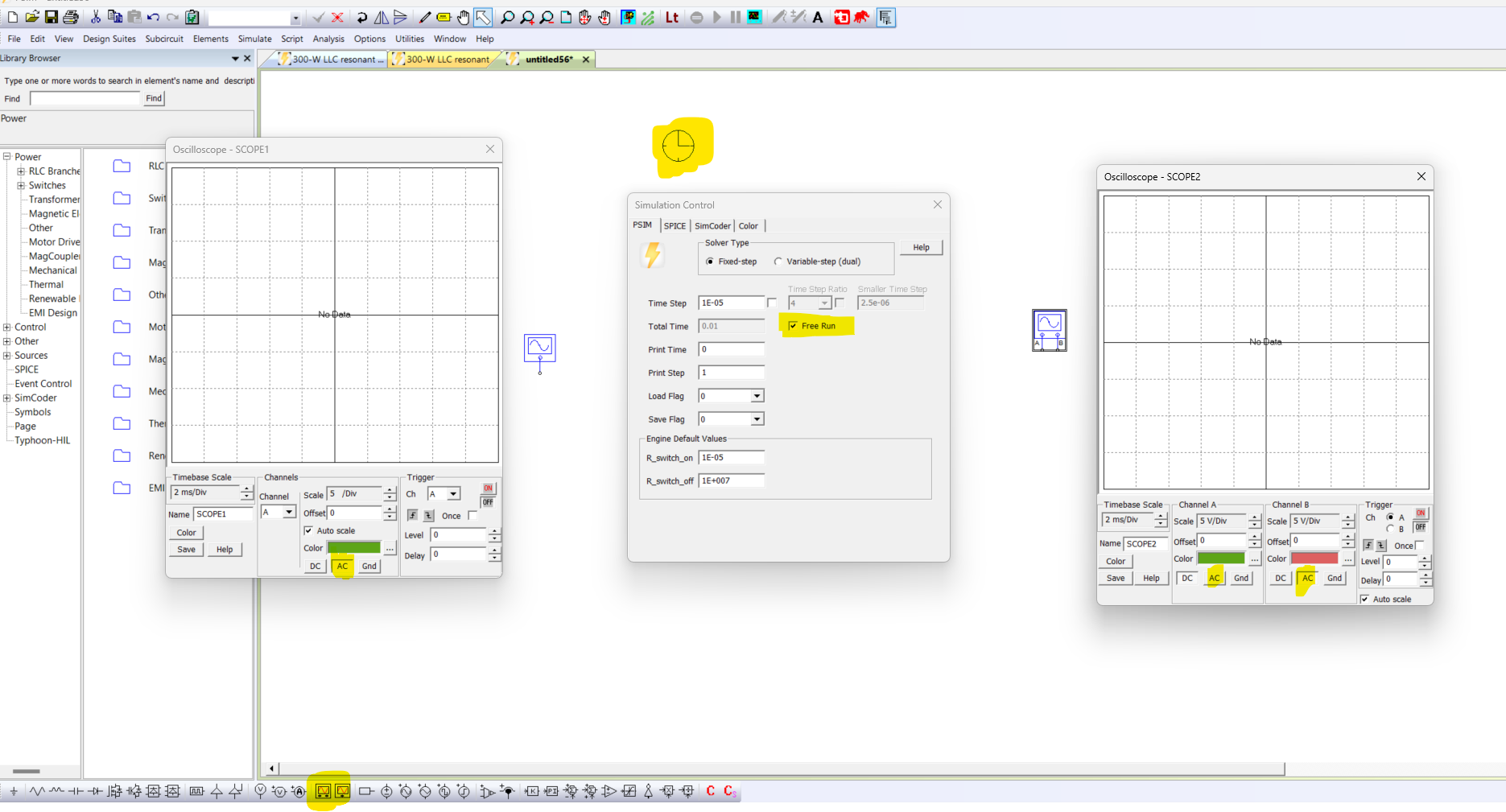

You have to operate in Free run mode. Image is attached for your reference.

Best Regards,

Vishwanatha Siddhartha

ashikamineee08

Thanks Siddhartha. I will check it.
