SimLab 2025.1| How to view rigid body modes and mass participation factor in normal mode analysis

Hello, I'm new to normal mode analysis. I ran one (no boundaries in this case) and I would like to know where and how to find the mass participation factor.

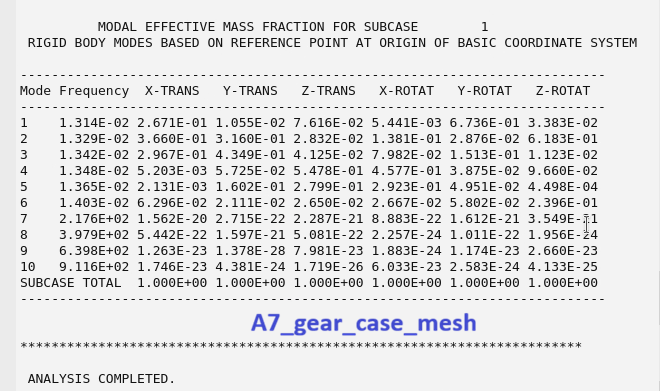

I have an additional problem: the normal modes analysis with no constraints was to get the first 6 rigid body modes. I realize I couldn't get any translation of the body in the results, just rotations, which I should instead obtain (if I recall correctly from the theory). I even tried using one of the given models (A7_gear_case_mesh), but got the same results: just rotations, no translation. Is there anything wrong in what I'm doing or doesn't the software contemplate calculating zero frequency modes?

Find more posts tagged with

SimLab

Results View

Accepted answers

All comments

Marc_21384

Hi,

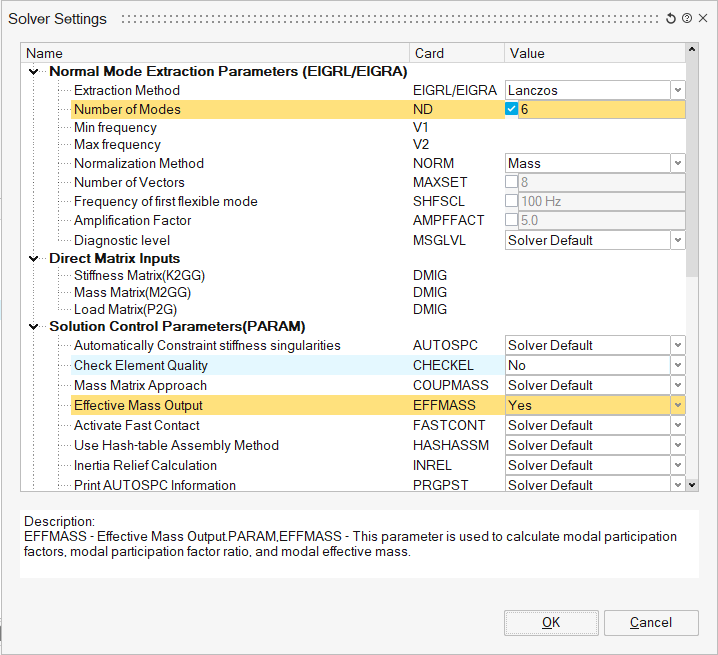

You need to ask for the output of mass participation in the solver setting. Like this:

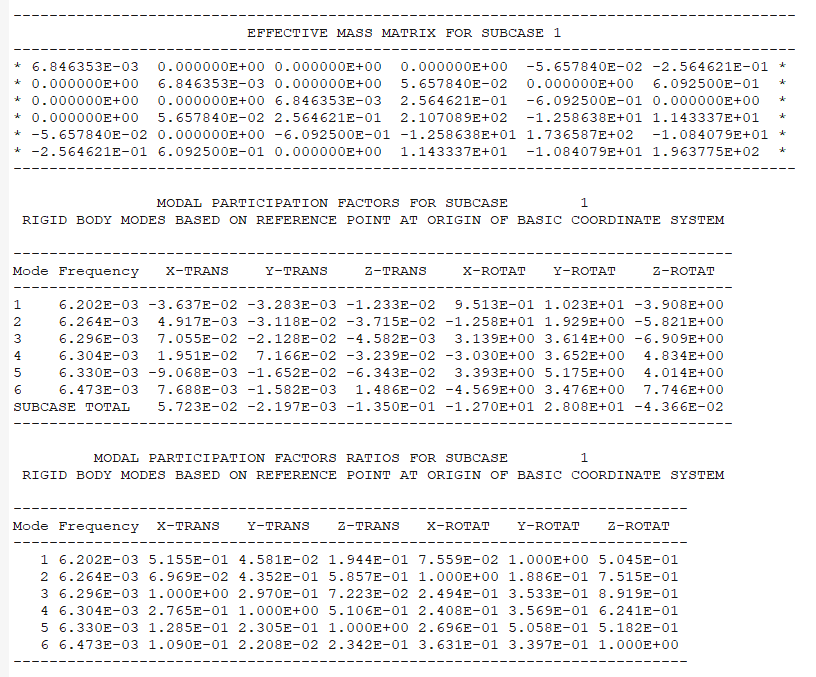

Once you do, you can find in the out file. Right click on results and open solver log:

Hope this helps.

Kind regards,

Marc Steiger

CA_Hipparcos

Hi Marc!

Thank you so much.

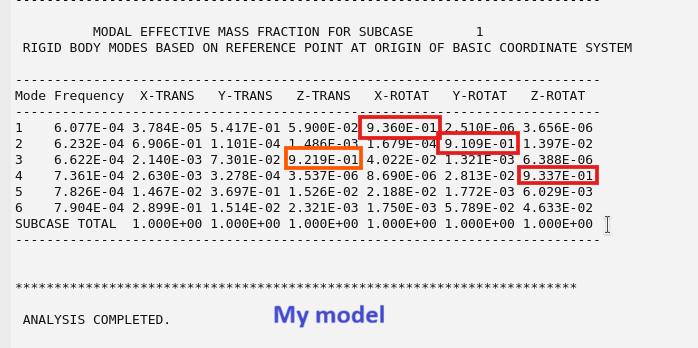

I still have a problem though: I can't get final result modes where it's almost pure translations (like 9.xxxE-01) especially in x and y, whereas this happens with rotations. As I said, I even tried with a couple of models from your learning center, but I have the same issue.

CA_Hipparcos

Is there anything else I need to set in the solver? The approximations seem a little off.

Is there anything I'm missing (even from the theory)?
