This script extracts the Mag, X, Y, and Z deformation values of a specific node in HyperView into a text file.

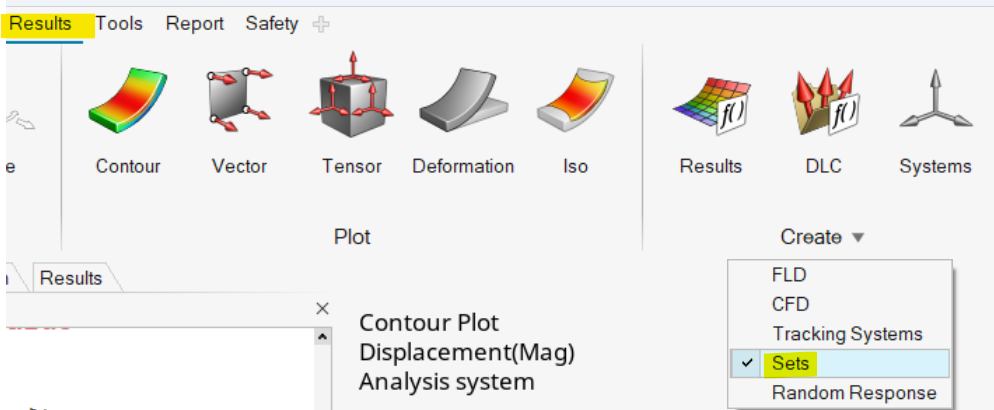

To select a specific node, define it using a set.

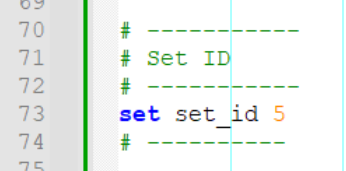

Adjust the set ID to match the defined set information.
Step1. Set the Model/result file path
Step2. Set the Subcase/Simulation

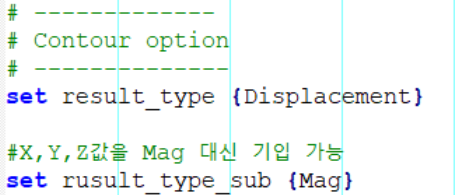

Step3. Set the Result Type

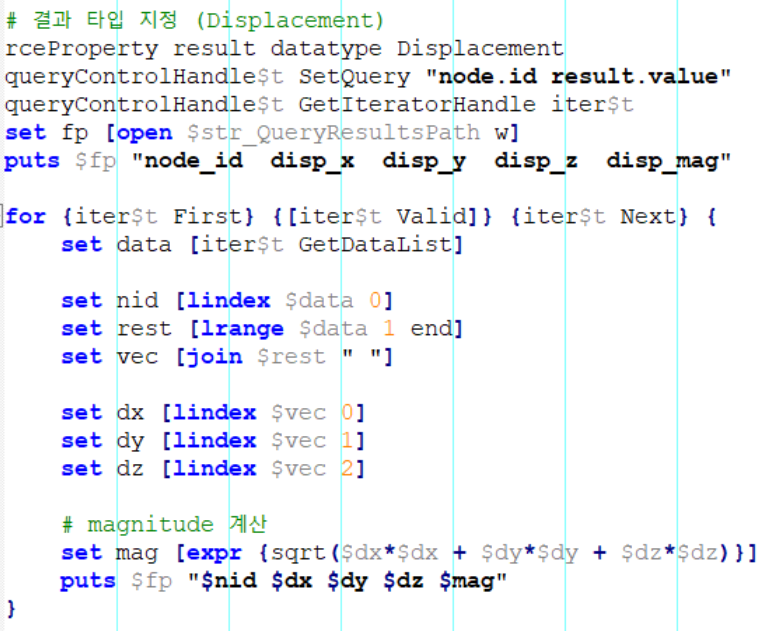

FYI, The mag value is calculated automatically.
Running the script below allows you to extract the node's Mag, X, Y, and Z deformation values into a text file.
