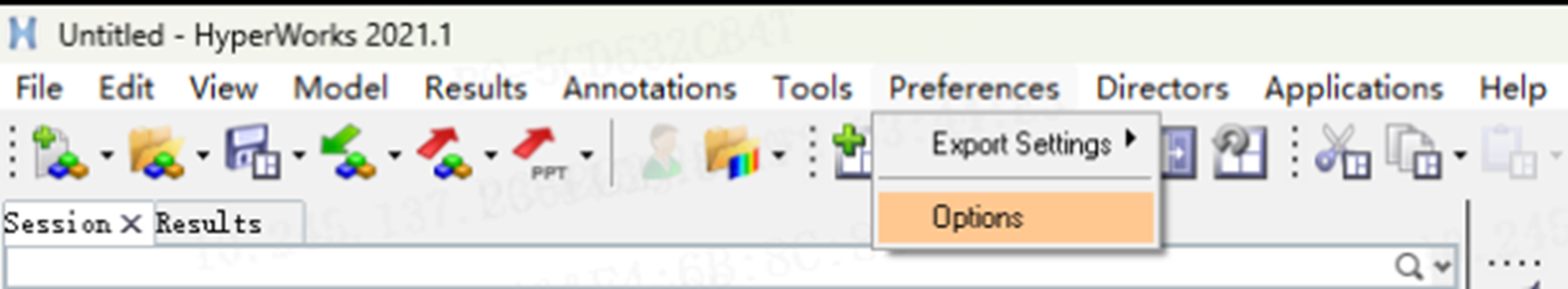

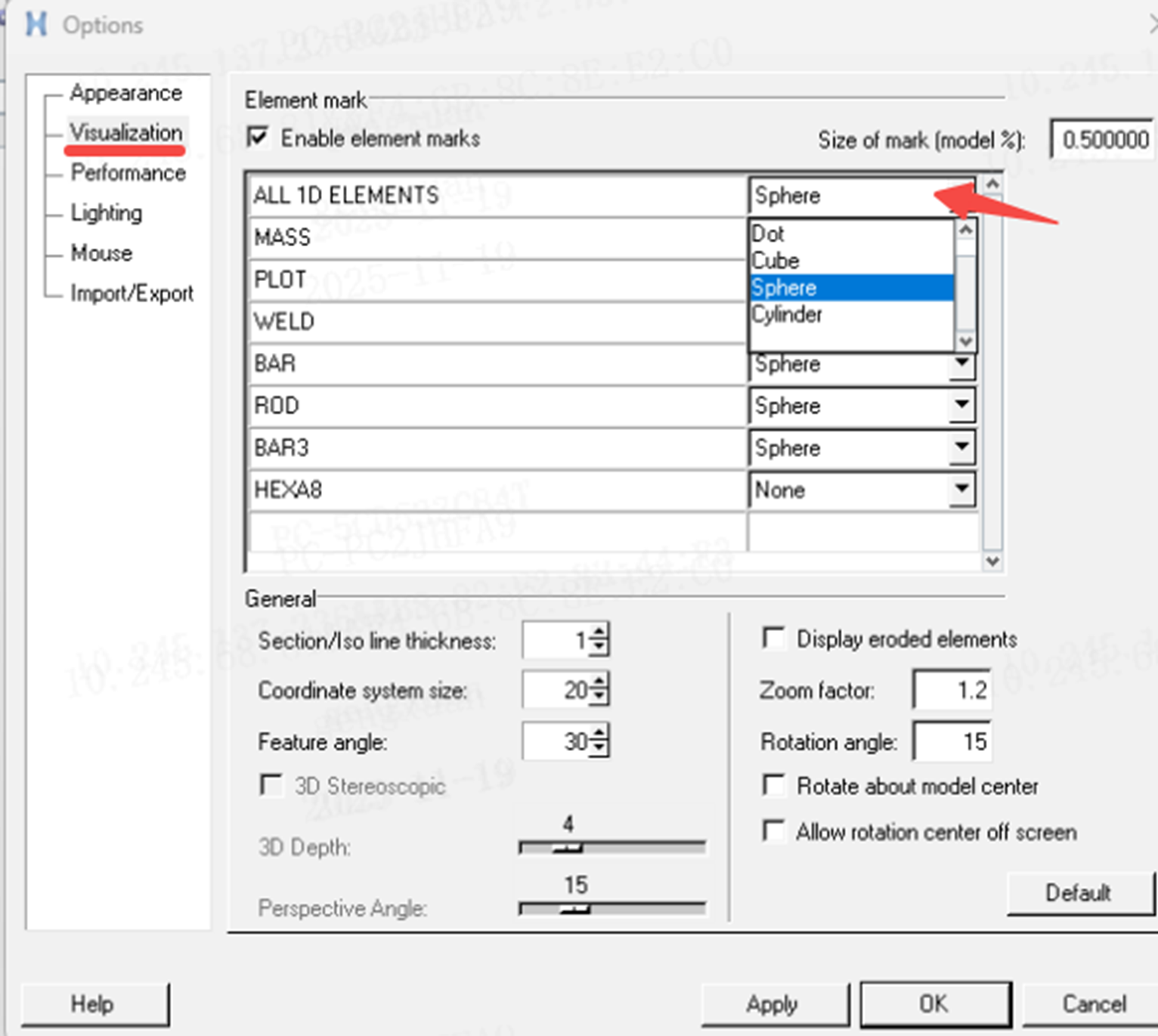

As shown in the image, I know how to achieve this using mouse clicks, but I don't know how to do it using TCL. Could someone please teach me? I would be extremely grateful.
I've figured out how to do it.
hwi OpenStack hwi GetSessionHandle sess sess GetProjectHandle proj proj GetPageHandle pg 1 pg GetWindowHandle win1 1 win1 GetClientHandle cln1 sess GetClientManagerHandle mgr animation mgr GetRenderOptionsHandle option1 option1 SetElementMarkShape 1D Sphere hwi CloseStack
