Any suggestions on how to run a pothole FEA for a Chassis?
Hi @simonvinothmartin,
In general, a vehicle is simulated driving the pothole event using MotionSolve, a multibody dynamics application, to calculate the loads that the chassis would experience from this transient event. A load case is then developed and that load case is then applied to the chassis-only in a FEA environment like HyperMesh to complete a structural analysis.
If you are new to either application, please make sure to check out our eLearning to easily take one this automotive workflow here:
Getting Started with MotionView/MotionSolve
https://learn.altair.com/learn/course/getting-started-with-motionview-motionsolve-elearning/main/getting-started-with-motionviewmotionsolve
Vehicle Modelling with MotionSolve
https://learn.altair.com/courses/vehicle-modeling-with-motionsolve-elearning
Getting Started with HyperMesh
https://learn.altair.com/courses/getting-started-with-hypermesh
Hope this helps!
Adam Reid
Hi Adam, Thanks for the reply. If possible, please share the model? It will be really helpful.
-Simon

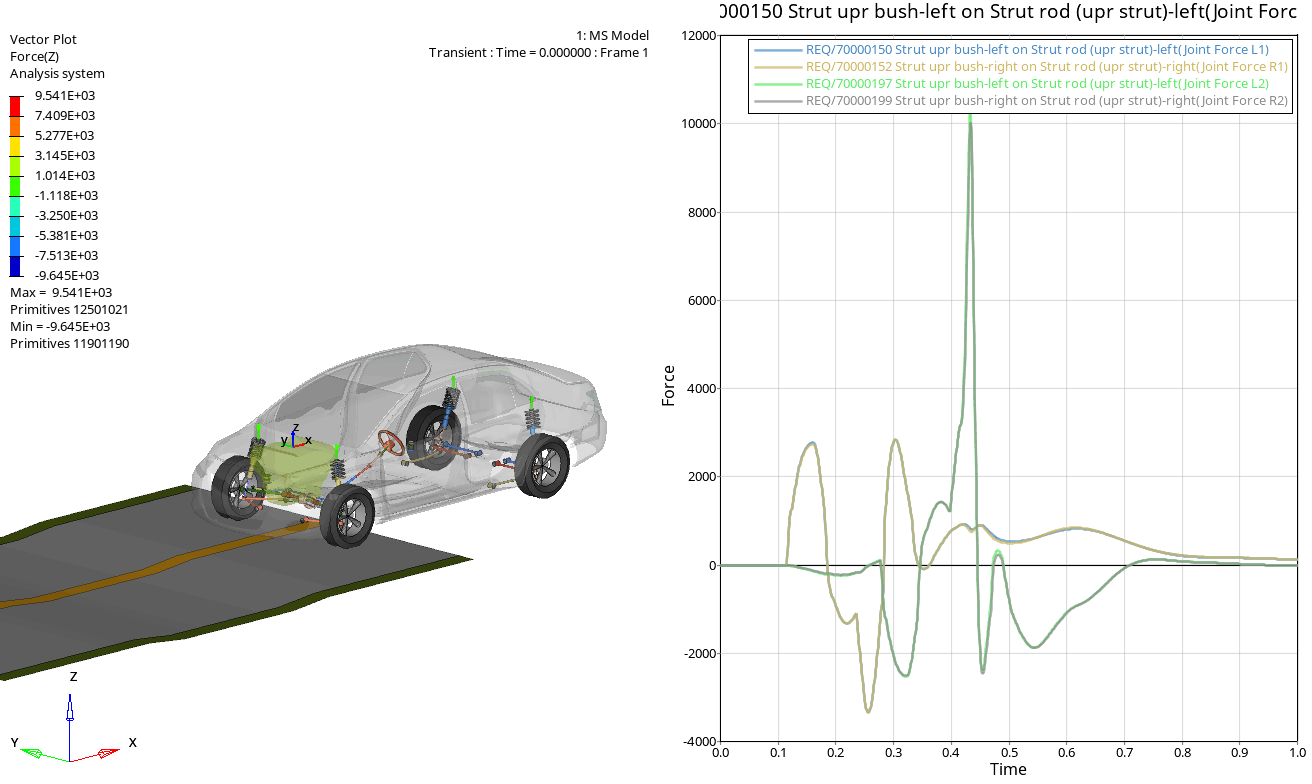

This model is simply our example Sedan model with a standard Road Course event and a 2D pothole road file from the installation directory.
The ability to create this simulation is covered in detail in the Vehicle Modelling with MotionSolve eLearning in case the setup of this simulation is not familiar.
