Post-processing of a h3d file

KOUAMI

How can I extract the output data (stress) at each integration point in CSV format (Excel table) from the .h3d calculation result file?

Thanks

Find more posts tagged with

HyperView

Auto Tagged

Accepted answers

GTT Adam

Hi @KOUAMI,

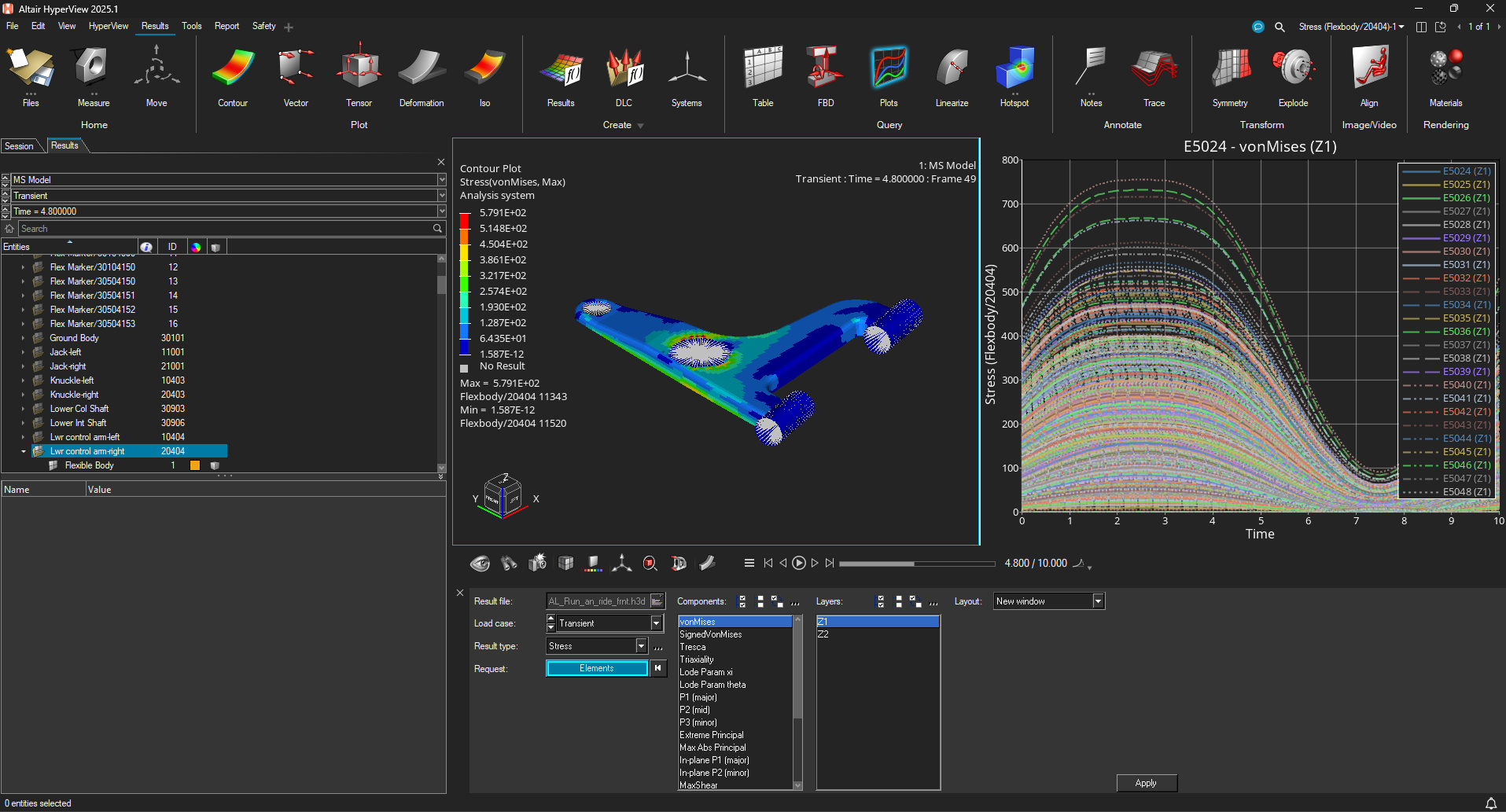

You can use the Plots tool in HyperView and choose to plot Stress by Elements.

Then you can export the plot as a CSV using File » Export » Curves » CSV Blocks.

Hope this helps!

Adam Reid

All comments

GTT Adam

Hi @KOUAMI,

You can use the Plots tool in HyperView and choose to plot Stress by Elements.

Then you can export the plot as a CSV using File » Export » Curves » CSV Blocks.

Hope this helps!

Adam Reid

KOUAMI

Hello, thank you for your reply it is very helpful. But i have a second question:

is it possible to write a macro to automated post-processing?

Best regards

GTT Adam

Hi @KOUAMI,

Yes, this should be entirely possible with the help of Tcl or Python commands.

I would check out the Altair Exchange page to see if any scripts have already been uploaded with a similar purpose, or to take pieces from each script to accomplish your goal.

Another option would be to save the Session as a Flexible Report, to which you can use it as a template to automate the setup as well.

Hope this helps!

Adam Reid
