The graphical display on Inspire doesn't work for me

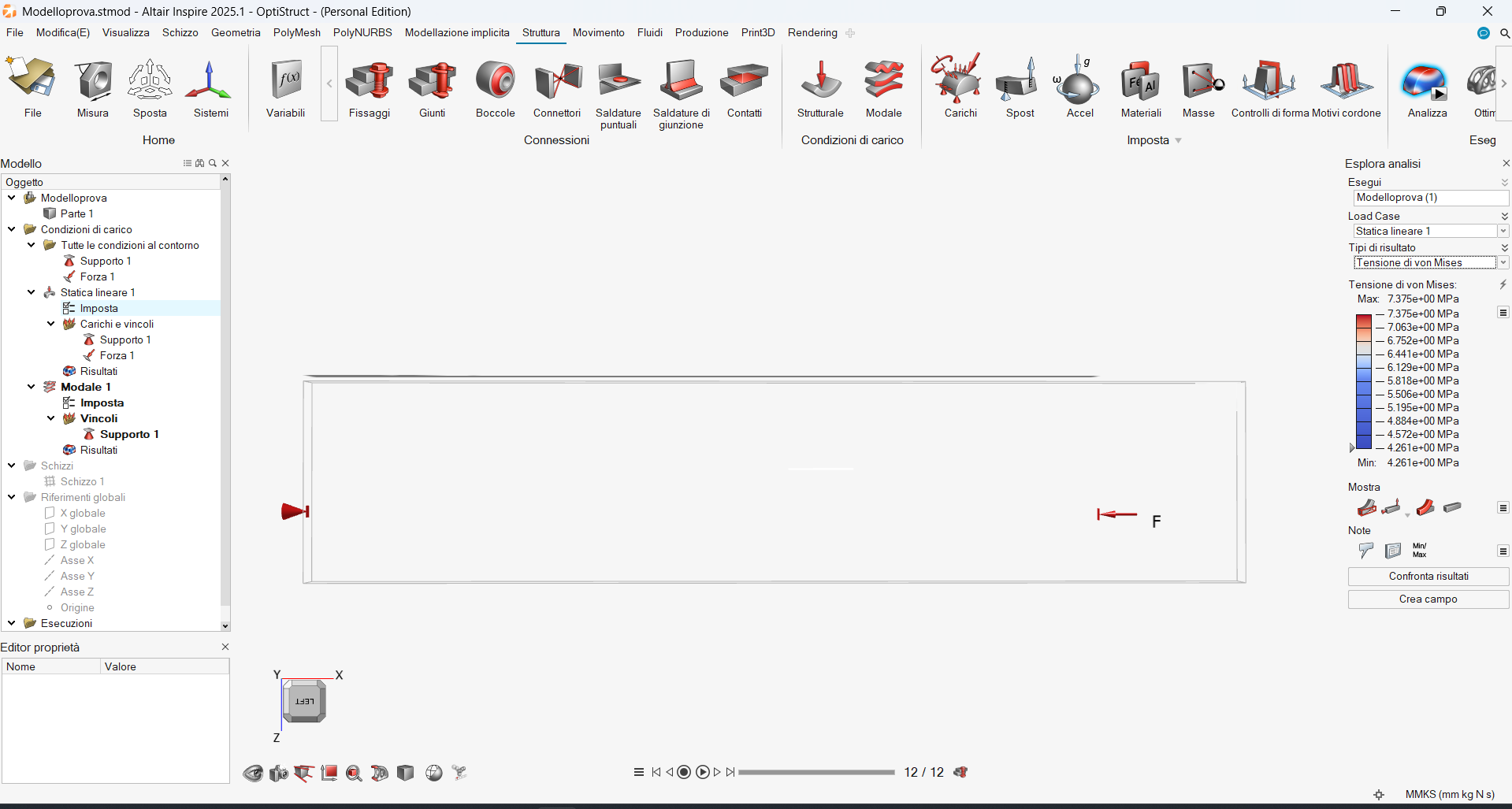

Description: When I run the simulation and view the results, I only see a blank screen. However, I can see the scale of the results, which are correct, but the visualization doesn't work. Specifically, I can graphically see the scale of the product's deformation, but not the displacement on the component. The same problem is observed for the other analysis results. I've already tried uninstalling and reinstalling the program and installing the student and staff versions, but both have the same problem.

Product/Topic Name : Altair Inspire (2025.1)

*Note from Community Team

Find more posts tagged with

Inspire

Auto Tagged

Accepted answers

All comments

GTT Adam

Hi @FilippoMorano3_,

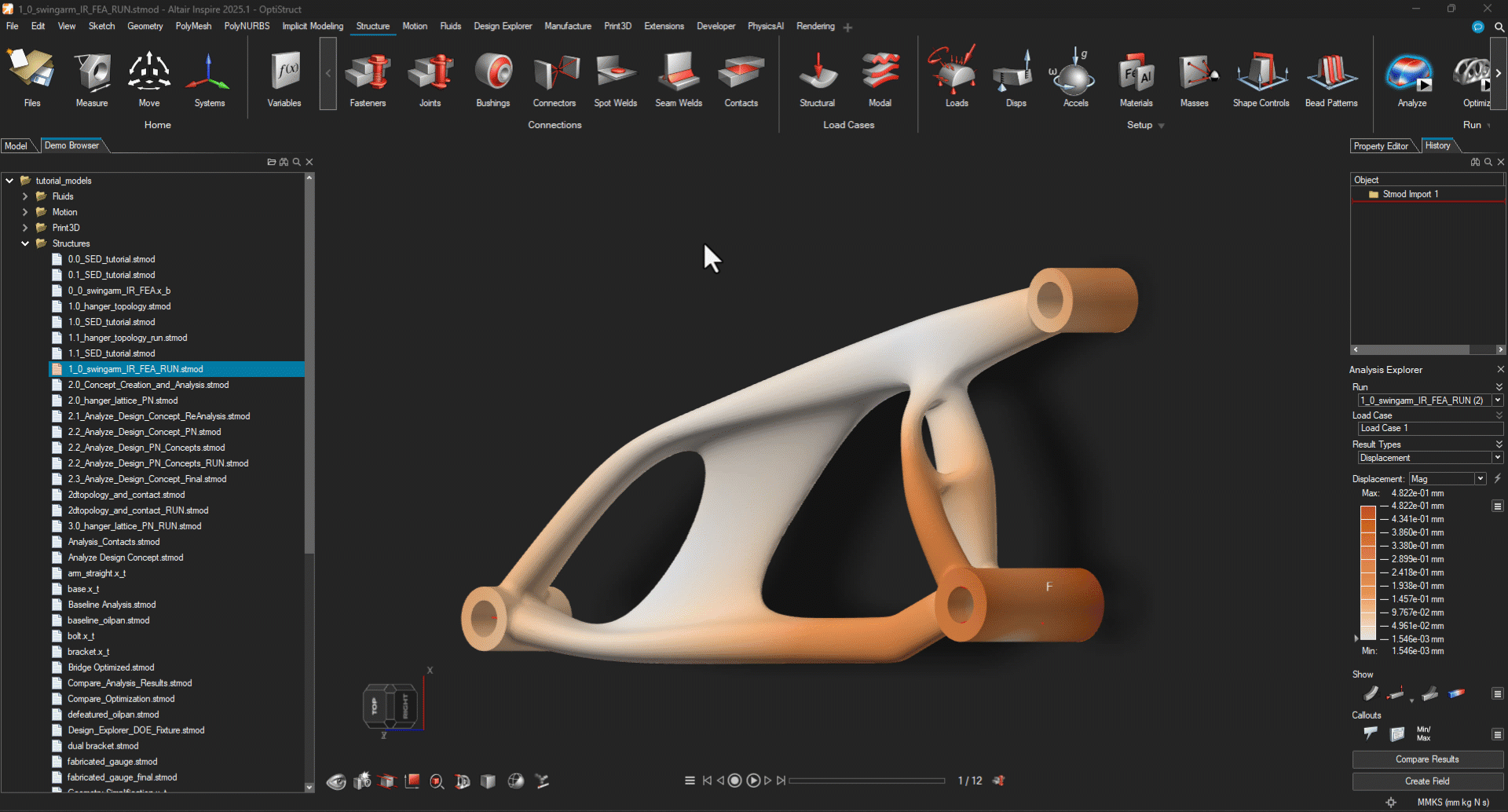

When reviewing structural results, the Show options can alter how the part is displayed. Below is an example using the Demo model "1_0_swingarm_IR_FEA_RUN.stmod":

Based on your show options, it looks like the outlines of the Show/Hide Deformed State along with thin parts are making the display appear this way.

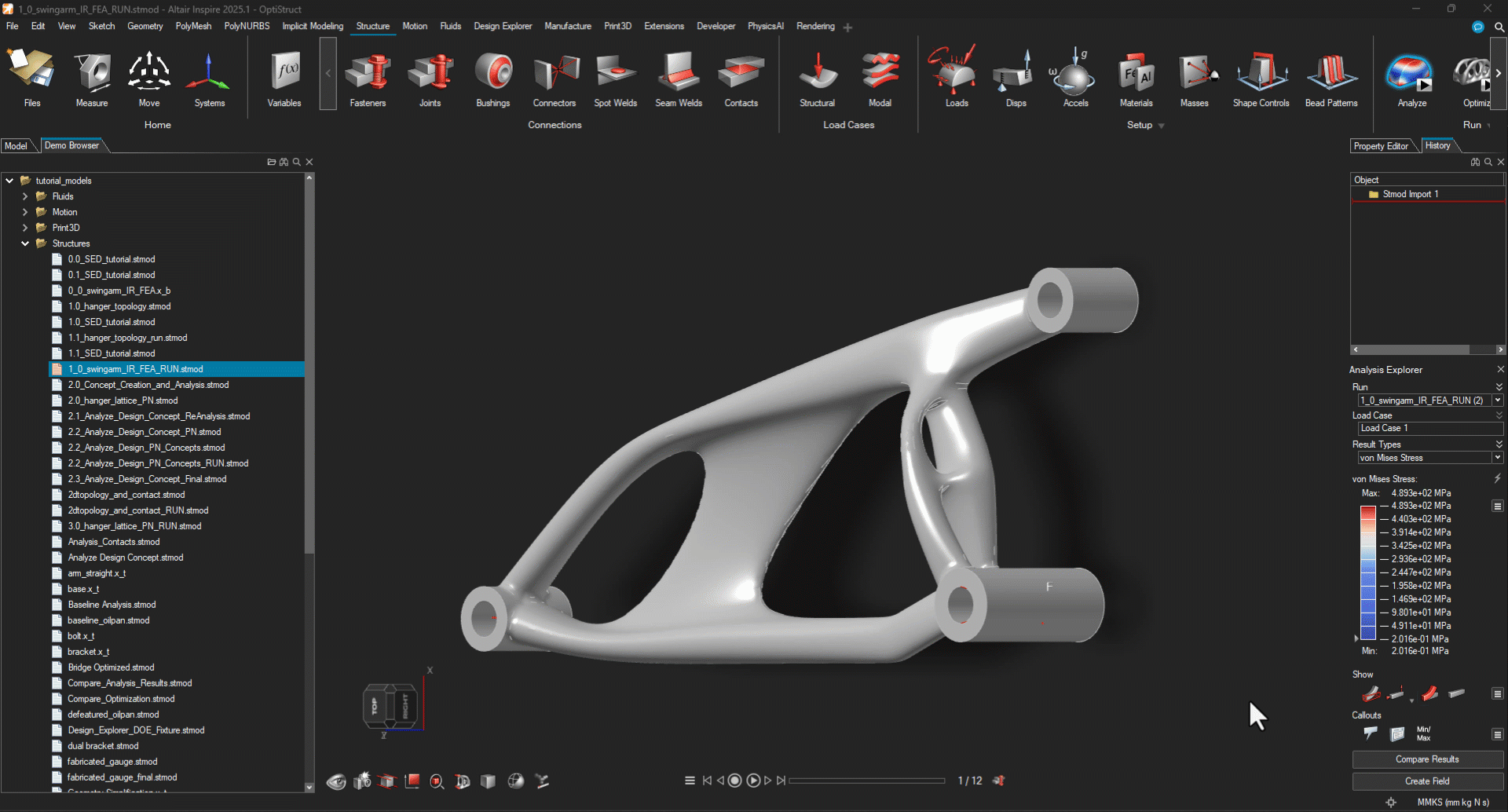

If you play the animation, do you now see the deformation? You can also change the scale of the deformation (shown below) in case the deflection is very small.

Hope this helps!

Adam Reid

FilippoMorano3_

Hi Adam,

Thanks for your reply. Unfortunately, I tried what you suggested, but it doesn't work. It's as if the visualization is incomplete. When you run the animation, you see the component move, but it's incomplete. I'm sharing a video of the visualization.

Thanks for your help.

Filippo Morano

WhatsApp Video 2025-10-24 at 17.51.18.mp4
