Plot over line in HyperView / HyperMeshCFD

Vitaliy_Finonchenko

Hello, Altair community,

I have a question, how a graph can be plotted similarly as in Paraview:

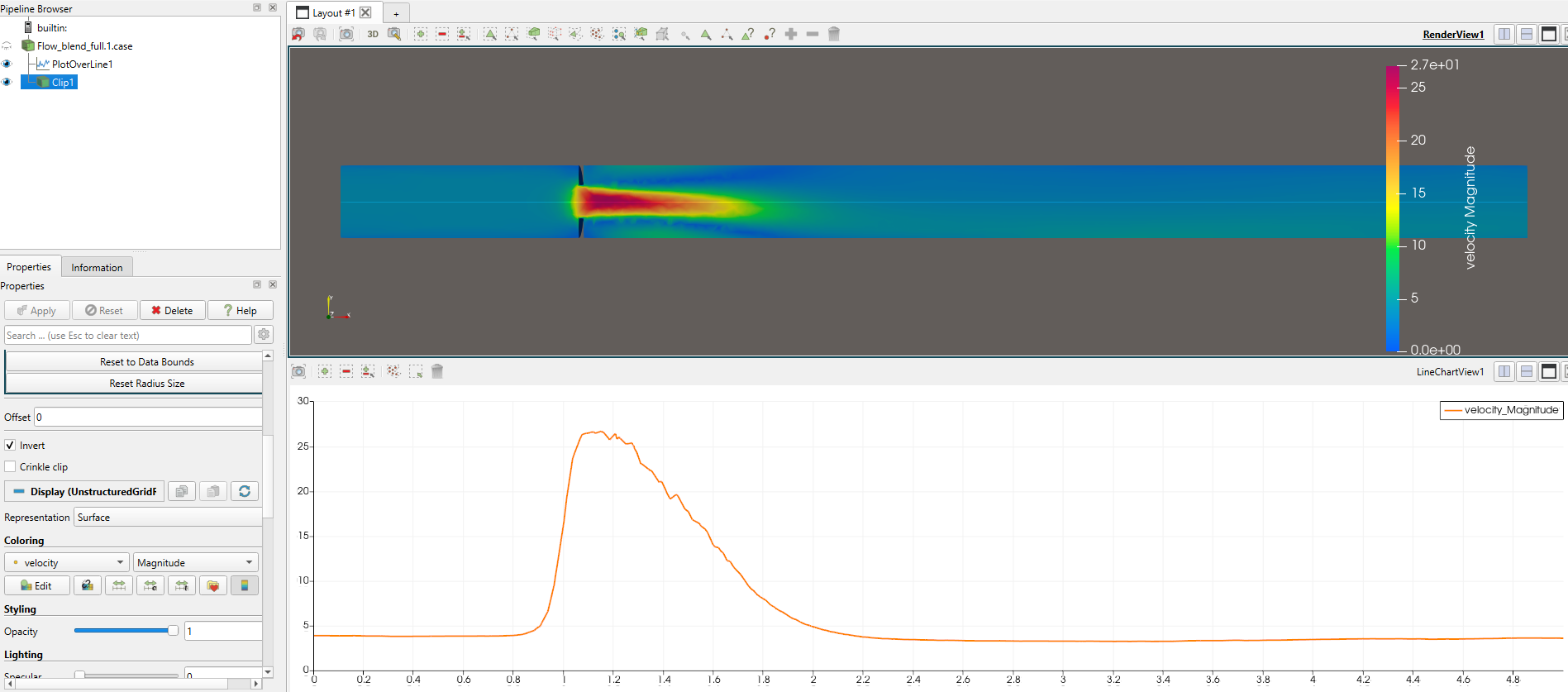

You can seen on the picture the screenshot of paraview post processing:

the pipe with a throttle and its velocity distribution;
the created plot over line.

Now I would like to make the same in the HyperView or Hypergraph.

Many Thanks

Vitaliy Finonchenko

Find more posts tagged with

HyperGraph

HyperMesh CFD

HyperView

Accepted answers

Vitaliy_Finonchenko

Dear all,

The solution was found (Thanks to @Marc_21384).

It is in HyperMeshCFD:

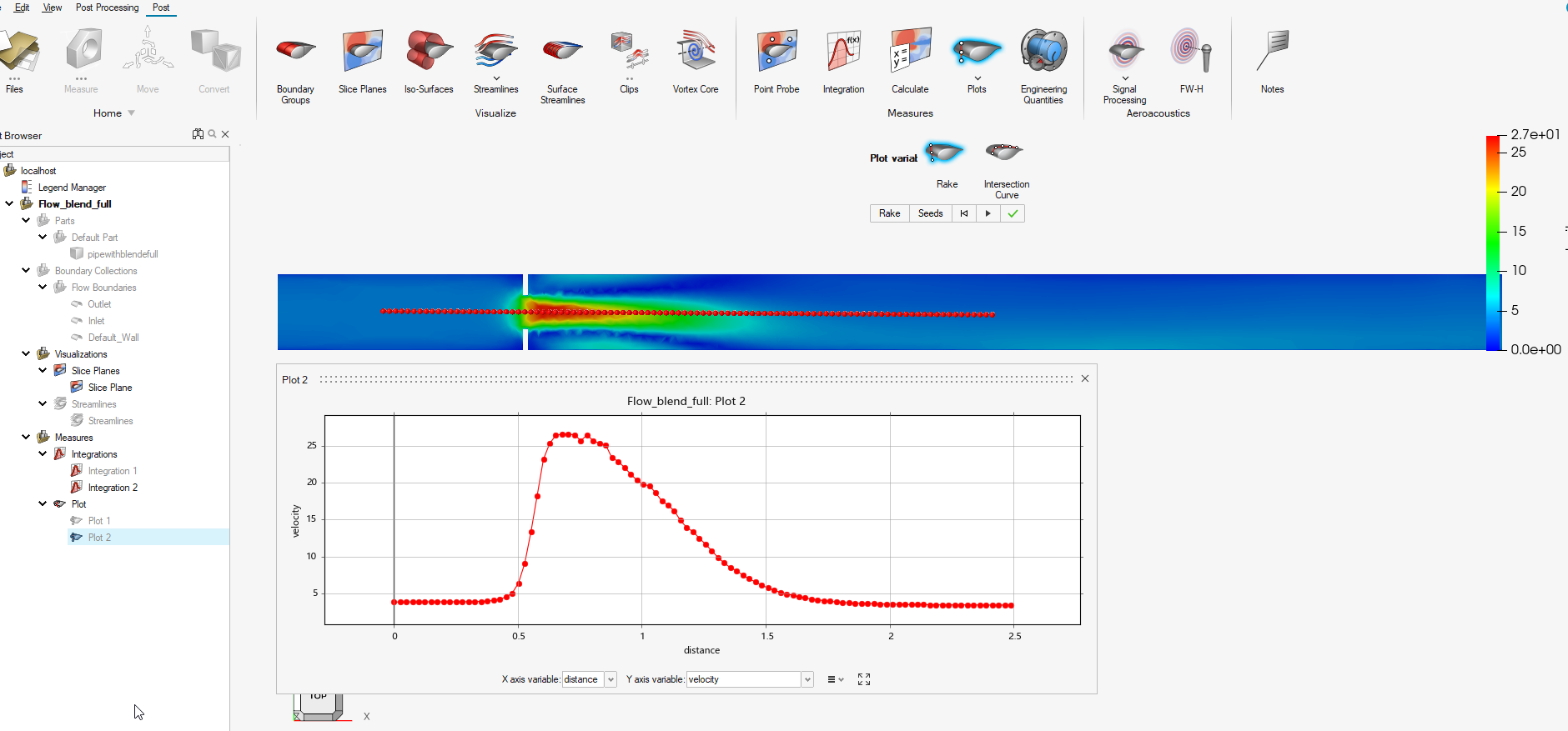

Visualize → Slice Plane and then

Post → Plots → Rake.

I also can export it as *.csv

Many thanks to all!

Vitaliy

All comments

GTT Adam

Hi @Vitaliy_Finonchenko,

A combination of an animation and a plot can easily be achieved.

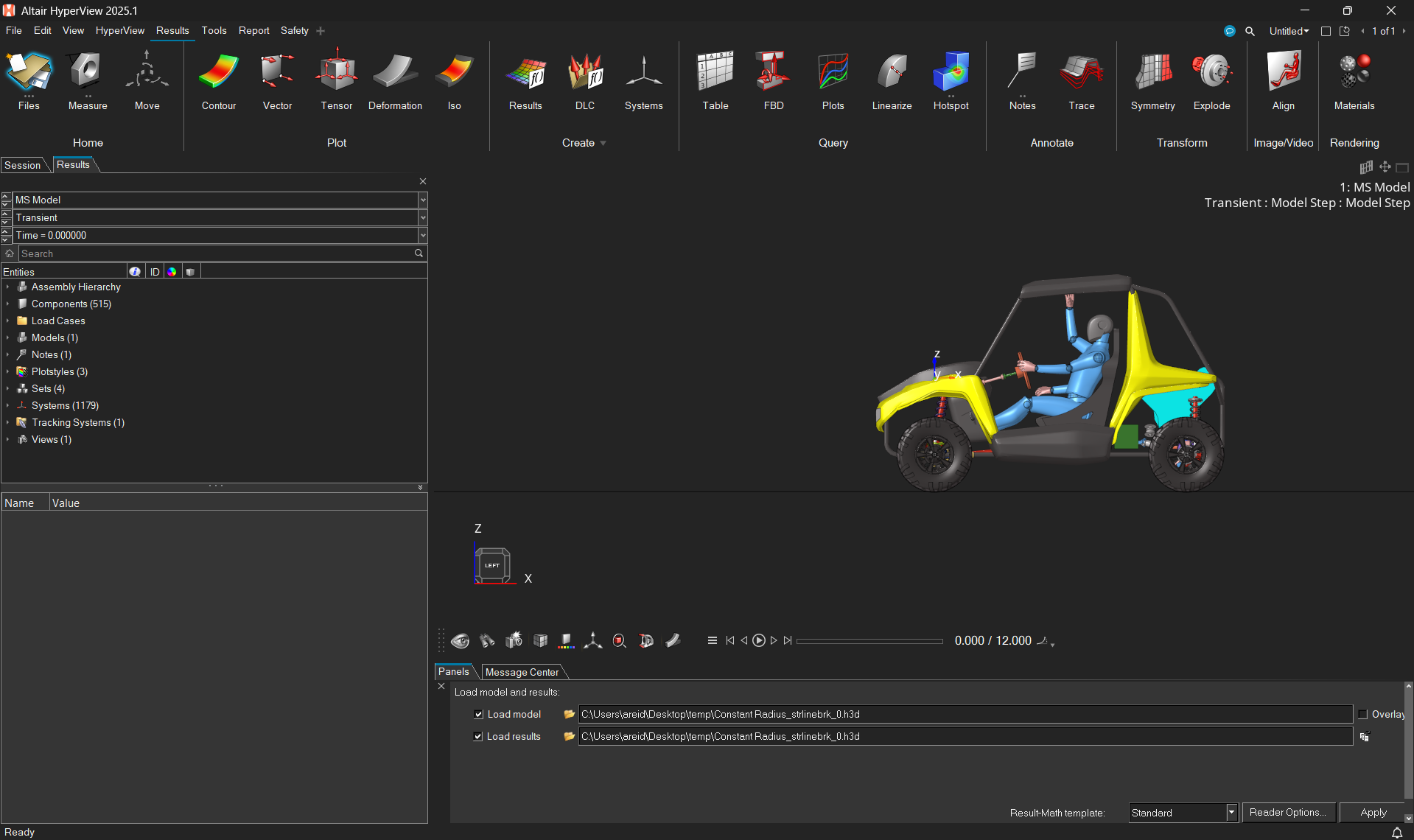

In a HyperView session, simply load an animation.

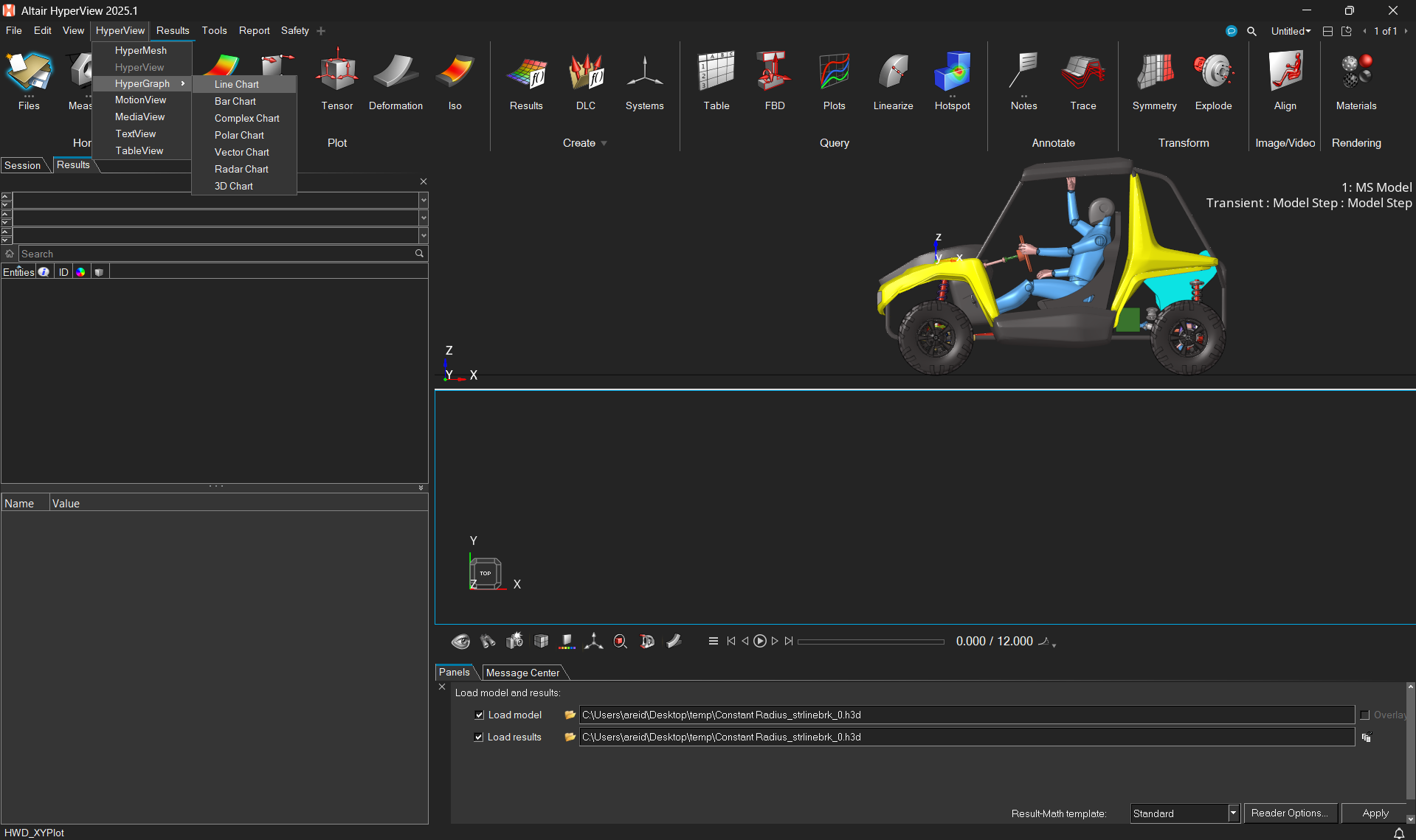

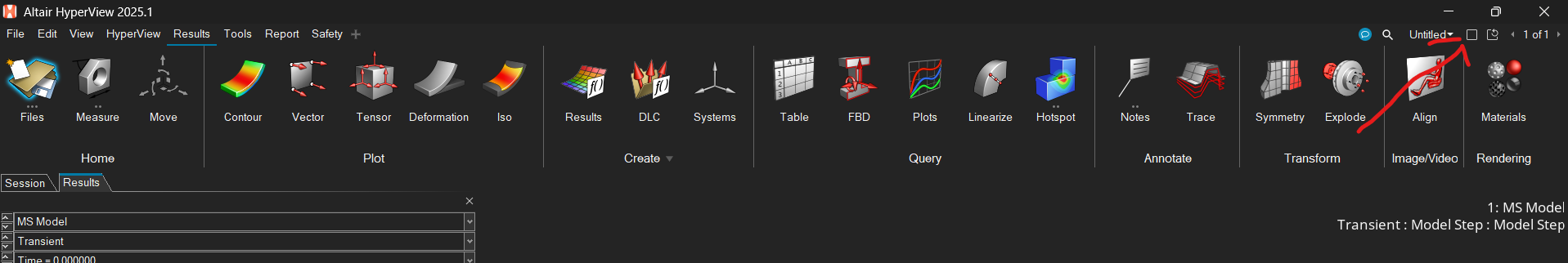

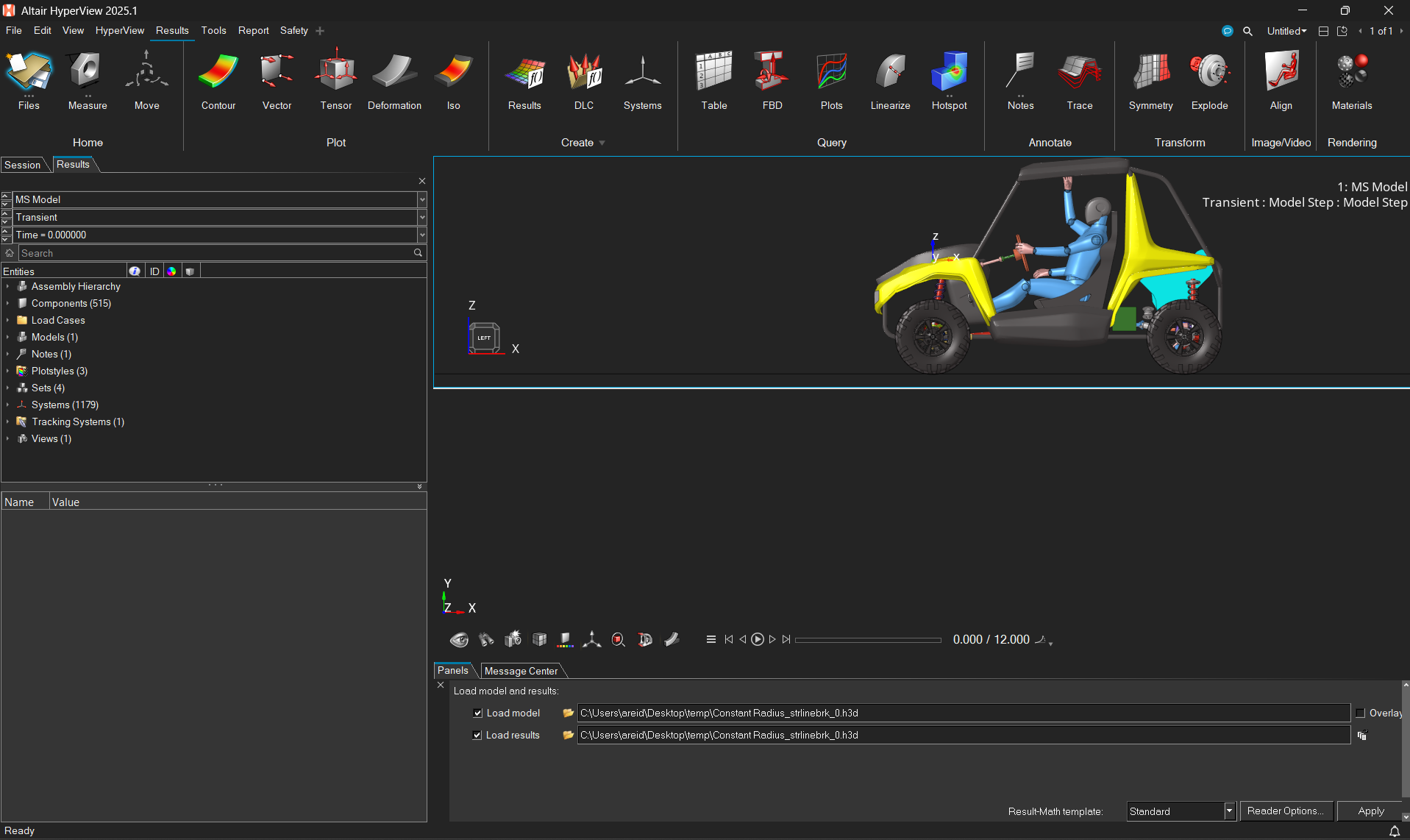

Next, go to the Set Page Layout button and split the view screen as desired.

Select the new window, then change the application to HyperGraph.

Lastly, load the plot of interest.

Hope this helps!

Adam Reid

Vitaliy_Finonchenko

Dear Adam,

thanks for you quick response!
I suppose it is not obviously clear, what I mean.

My simulation is CFD and it is steady state.

The line, over that I want to plot the velocity, should be the coordinate along the X axe.

Exactly that is my big issue.

We could make a Teams call, so I could show you on my PC, what I need.

Vitaliy

GTT Adam

Hi @Vitaliy_Finonchenko,

I understand that a MotionSolve result example is shown, but the process should be nearly identical.

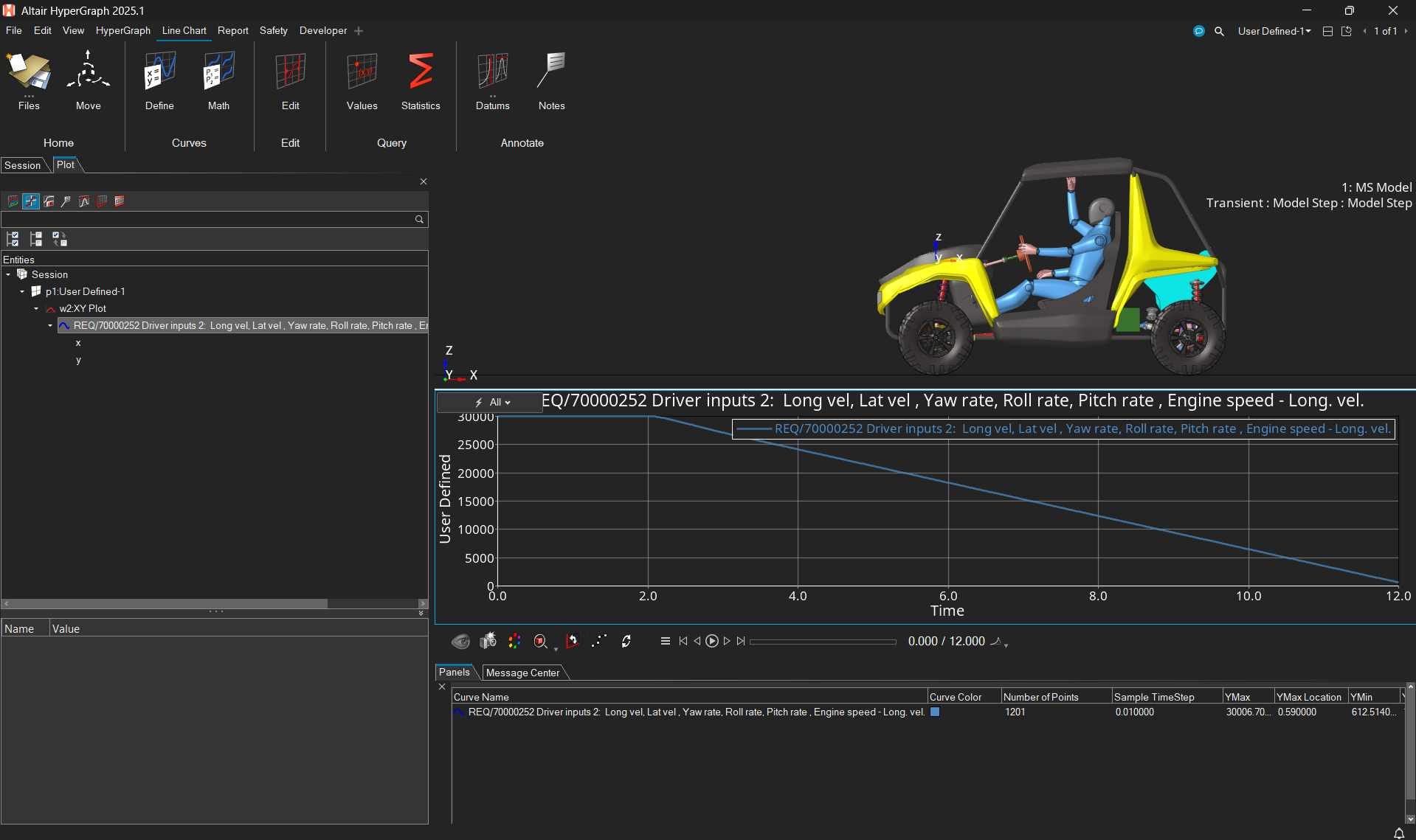

The animation of the CFD simulation will be displayed using HyperView (in place of the UTV shown in the image) and the plot shown in HyperGraph will be from the time-series results file that the CFD simulation produces.

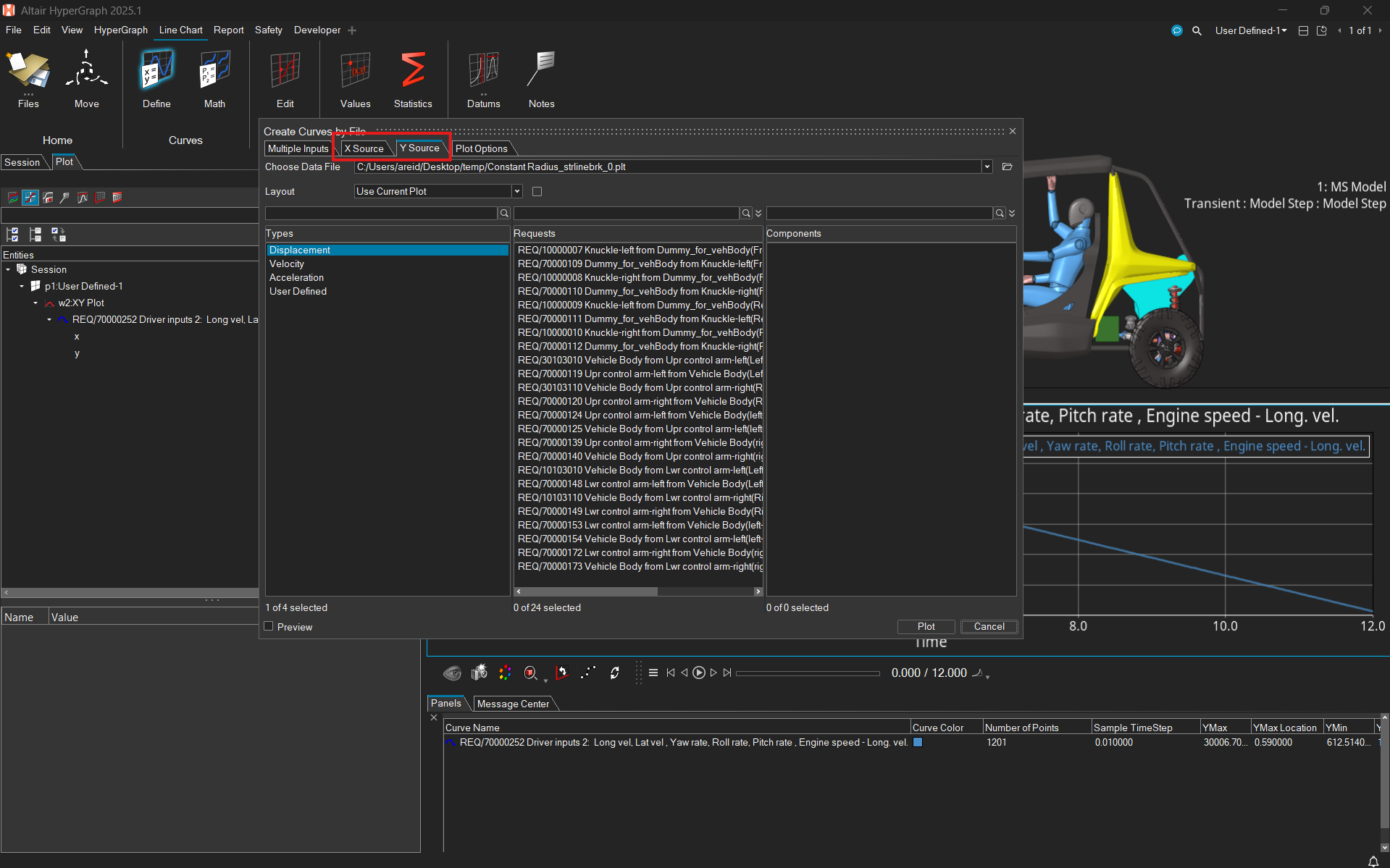

When you are plotting in HyperGraph, you can choose which data to use for the X axis and which to use for the Y axis (shown below).

By default, Time is usually displayed for the X axis.

Hope this helps!

Adam Reid

Vitaliy_Finonchenko

Dear Adam,

I try to reproduce the steps you propose.

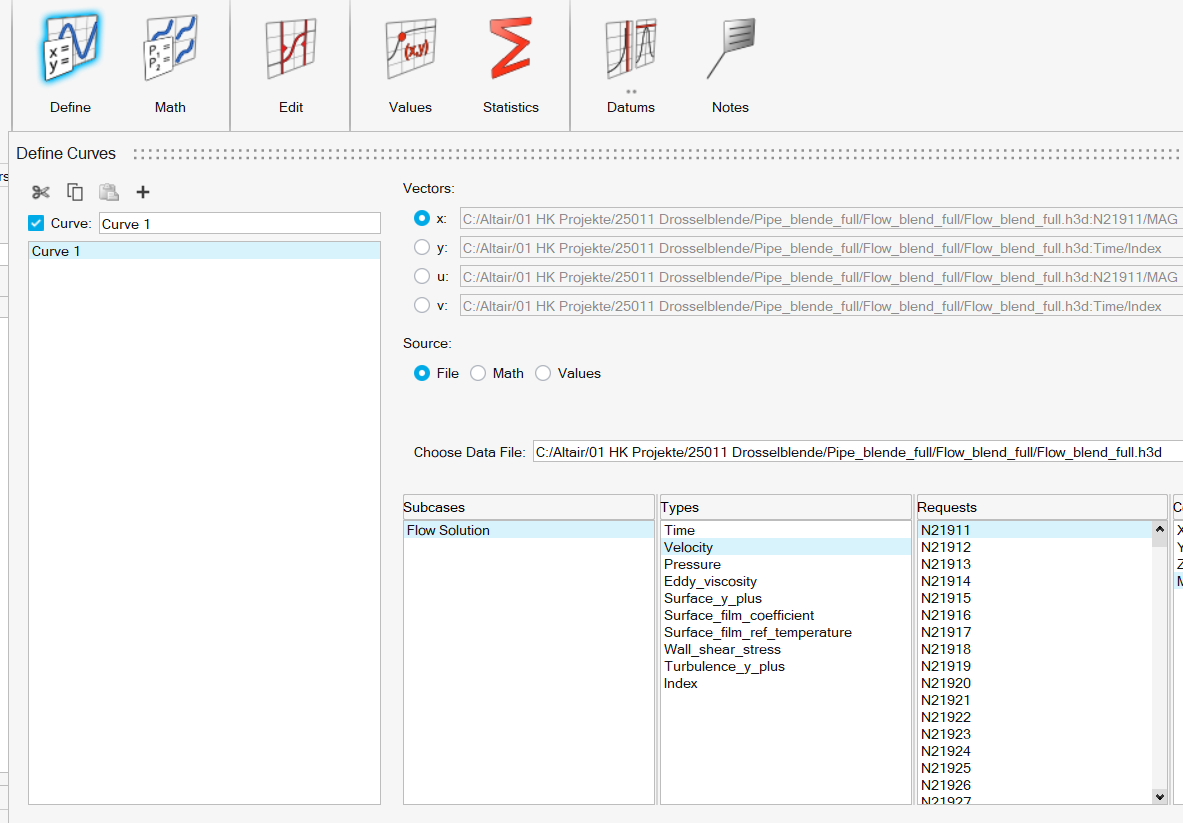

I see only the following types and there is no displacement among it:

Vitaliy

GTT Adam

Hi @Vitaliy_Finonchenko,

I am unfortunately not an AcuSolve user, so I am not sure what output files you need to be using for this combination animation and plot in HyperView/HyperGraph.

Perhaps either @Marc_21384, @ydigit, or @acupro can assist?

Hope this helps!

Adam Reid

Marc_21384

Hi @Vitaliy_Finonchenko ,

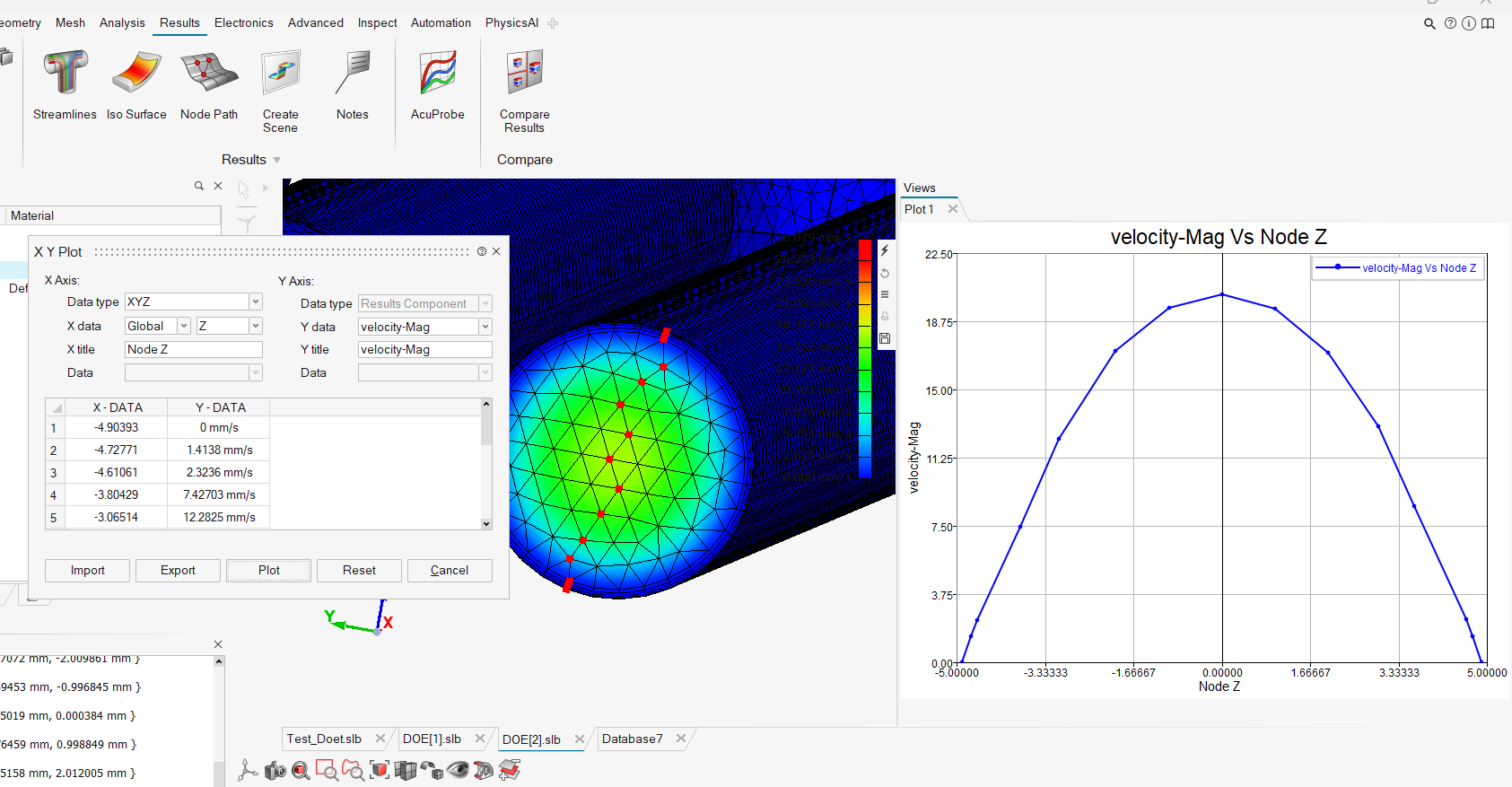

Any specific reason you want to use HV/HG? SimLab or HyperMeshCFD have specialized post processing tools for CFD. In SimLab specifically you can use the XY plot to use existing nodes in your model to plot the curve. Like this:
