How to create tie, freeze ,slide, friction contact in Nastran profile in HyperMesh ?

Naresh19908

Hii,

I am on a structural assembly in Nastran using HyperMesh, where multiple components interact. I need to define different types of contact interfaces between these components to simulate realistic physical behavior under loading conditions. The contact definitions must be compatible with Nastran solver requirements:

The goal is to properly define the following contact types:

Tie Contact
Freeze Contact
Slide Contact
Friction Contact

Find more posts tagged with

HyperMesh

OptiStruct

Accepted answers

All comments

Jason_Craanen

Hello

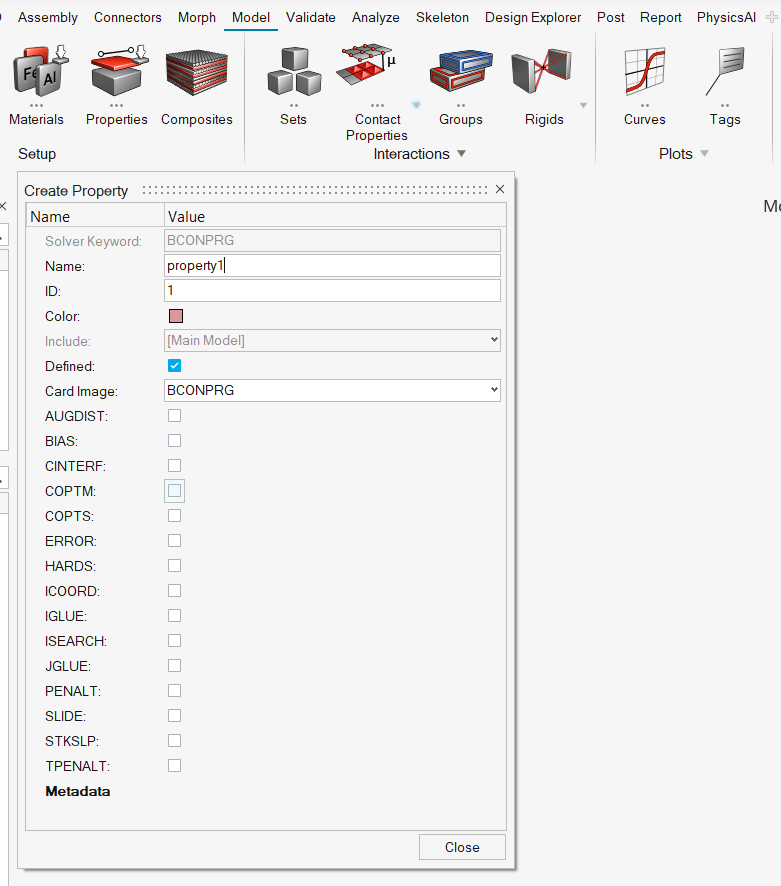

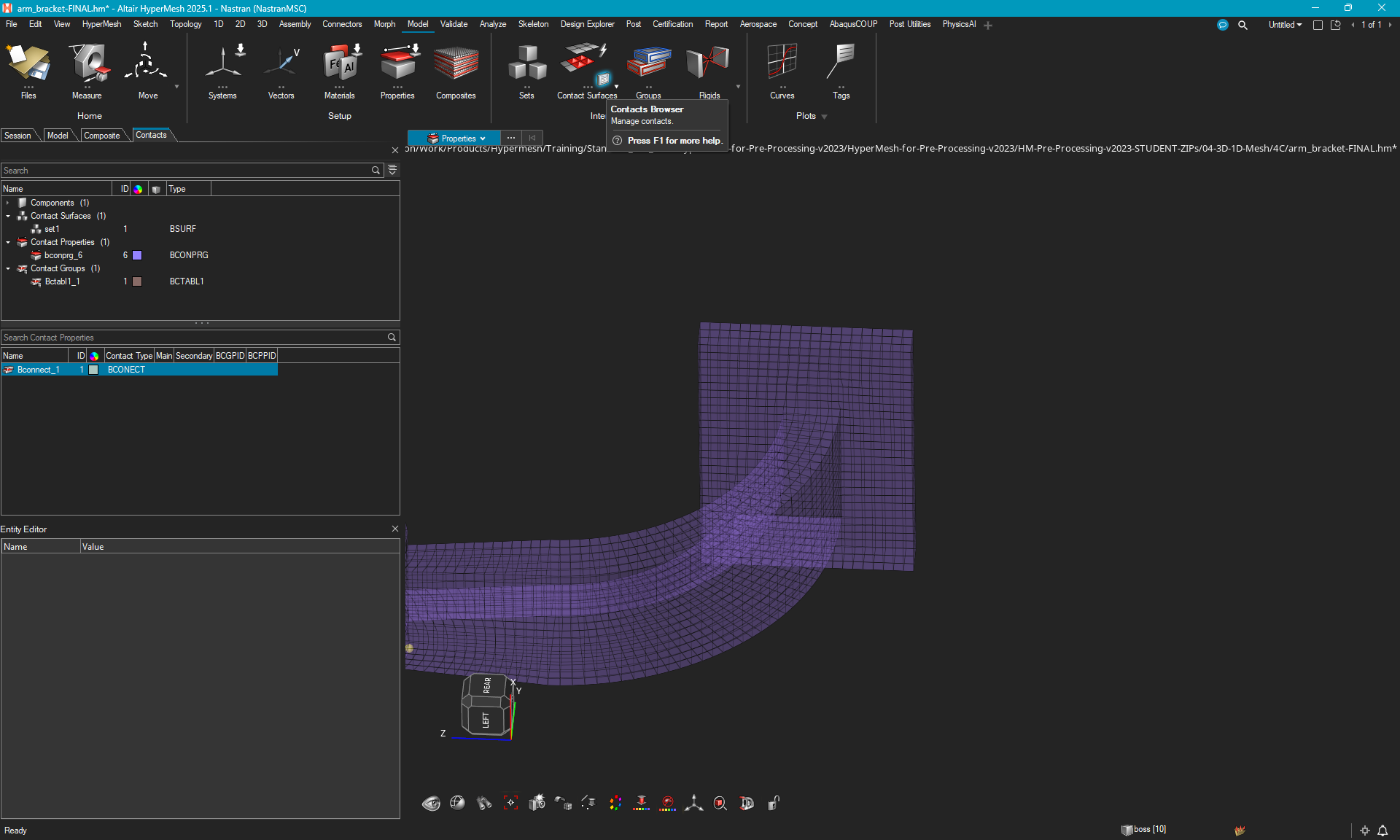

YOu can create these through the Contact Browser

YOu can RMB and create the necessary cards and setup in the Browser itself.

I would also recommend using Auto Contact

https://www.youtube.com/@altairhowto /search?query=auto%20contact

Naresh19908

Dear @Jason_Craanen ,

Thanks for reply, and can you please tell me the use it properly ?

For

Tie Contact
Freeze Contact
Slide Contact

Jason_Craanen

This is a question for Nastran Support. The cards are provided in Hypermesh but the user should be aware of how to use them from the solver (Nastran) perspective.
