Differences between Open Radioss and Student Mechanical Solver

Pohan28

Hello,

I try to simulate 3 point bending test of FMLs. I have a problem that:

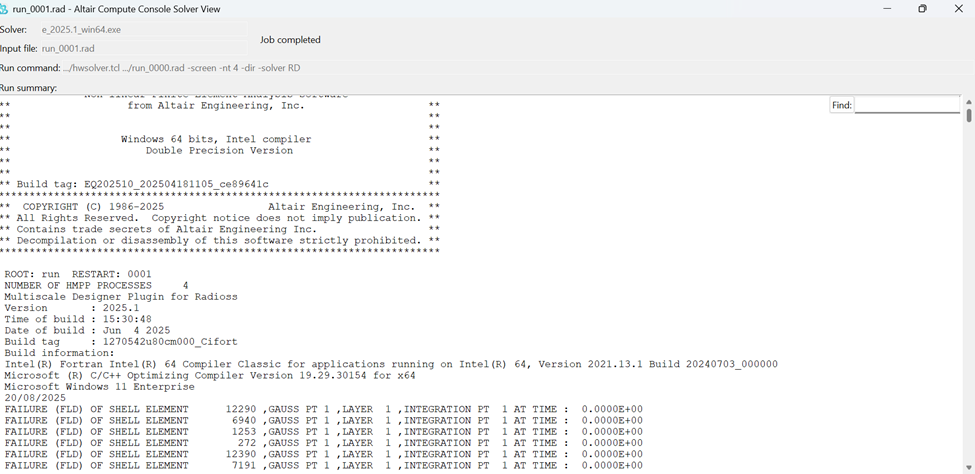

Using student Mechnical solver: the outer Aluminum layer fail from the beginning.

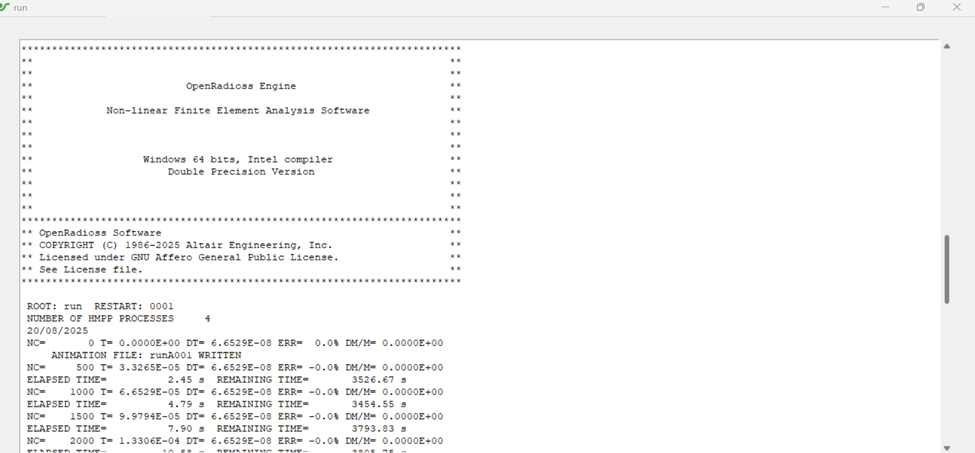

Using Open Radioss: failure does not occur at the beginning.

I my opinion the results from Open Radioss is more resonable.

Could you please help me explain this difference? Tks

Find more posts tagged with

Radioss

Accepted answers

All comments

HarishT

Hi Pohan,

Both the Radioss and Open Radioss are the same. You could share both (Radioss and open Radioss) the out files which you ran it helps to check in detail.
Regards

Harish

Pohan28

Hello Harish

I attach the run files.

Regards

openRadiossrun_0000.out

OpenRadiossrun_0001.out

run_0000.out

run_0001.out

Pohan28

@HarishT do you have any idea about this problem

HarishT

Hi Pohan,

Since the out files does not give more information, could you share the input file?

The major difference between Radioss and Open Radioss is as below:

Radioss build is completely tested and released, whereas Open Radios is not tested.

Licensed Radioss will get complete support with training from expets team.

Regards

Harish

Pohan28

Hi,

Is it possible to send you the input file privately?

HarishT

You can share using my file drop.

https://ftin.india.altair.com/filedrop/~FPNYPM
