How to get outer FE free edge for any FE component ?

I tried different methods to get the outer FE free edge for given component like free edges with features by varying feature angles…

I couldn't get solid logic for scripting..

please let me know if there is any shortcut or procedure to detect outer edge of FE component.

Please consider this as a priority

Best Regards

Bharath

HyperMesh

Scripts

Python

Hello

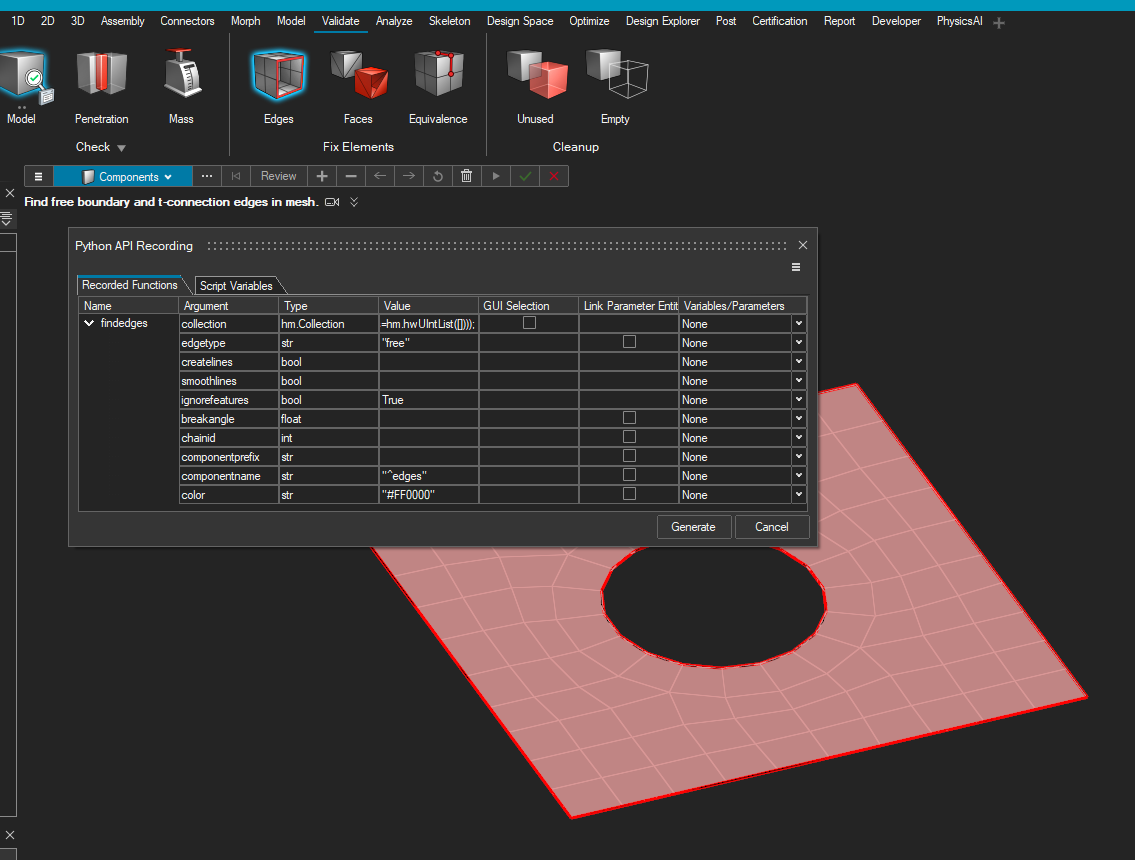

You can use the python recording tool while using the Validate Free Edges tool to see the command used

Thanks for the reply, Jason_Craanen

But I am looking for different approach…

Is it possible to get only the outermost FE edge (border edge-square in the image you shared) not the inner hole FE edges?

Please consider as high priority…

No it finds all free edges. I know of no tool that will only find "external" edges
