I have done an impact analysis on an aluminum plate . A steel ball impacts on the Al plate . Is there any way that i can plot DMG contour of the Aluminum plate?
Hi Anubhav,
DAM1 is used for materail law24 (concrete material), and DAMG is for only two material law

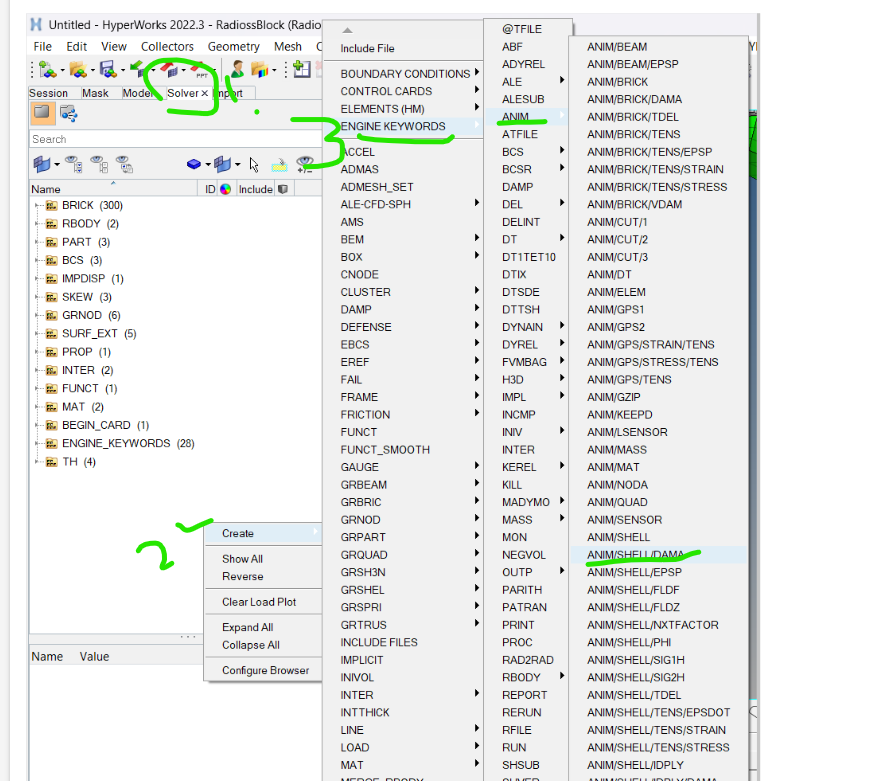

if use /FAIL, then we could use /ANIM/SHELL/DAMA as shown in below picture.
Regards
Harish
We can plot the damage by requesting the output damage using the keywords below in the engine file. For details, refer to the help document.

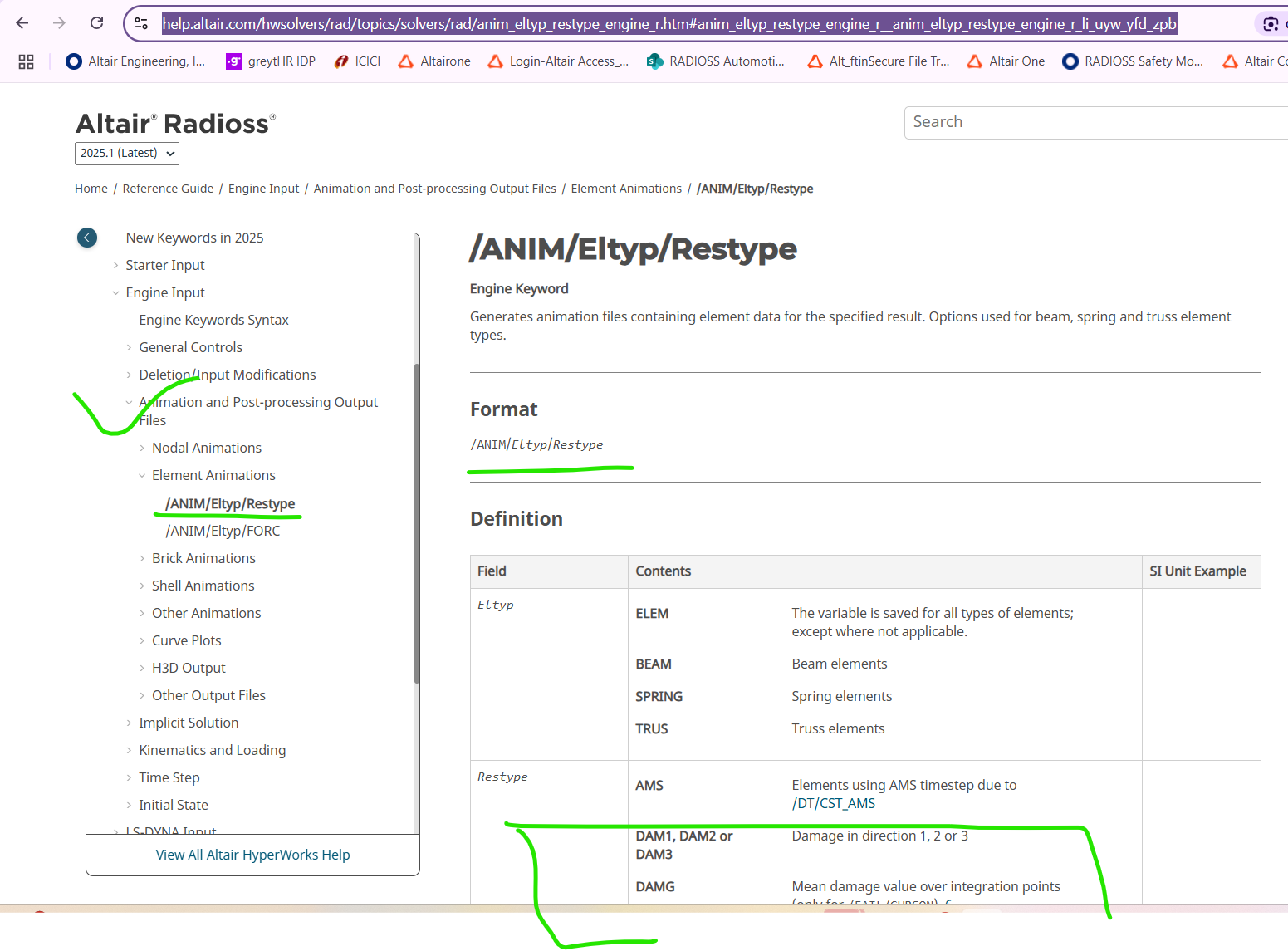

https://help.altair.com/hwsolvers/rad/topics/solvers/rad/anim_eltyp_restype_engine_r.htm#anim_eltyp_restype_engine_r__anim_eltyp_restype_engine_r_li_uyw_yfd_zpb
In Additional to previous commnets.
if use /FAIL then we reccommened to us /ANIM/SHELL/DAMA
It generates animation files containing a damage value for each layer of a shell element. The damage value is the maximum of damage over time of all failure criteria associated to the material.
For detail refer to the help document.
https://help.altair.com/hwsolvers/rad/topics/solvers/rad/anim_shell_dama_engine_r.htm
For me only DAM1 , DAM2 and DAM3 options are showing . But i can't get DAMG option anywhere

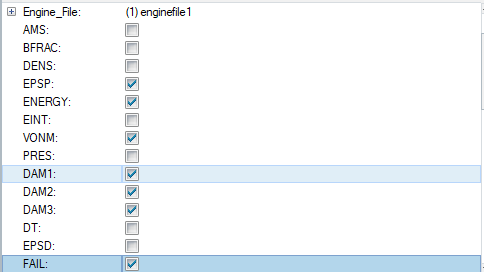

This is a snap from ANIM /ELEM /EPSP keyword. I am using radioss 2022.1 verison I have defined material failure criteria as JHONSON
Thank you Harish ,
This really helped me
