Python API: obtain a Set of Elements associated with a LoadFlux

Hello,

I am working in HyperMesh (OptiStruct). My model contains a LoadFlux load, which is referencing a Set of elements. I can see the reference in the 'References' tab (image attached). Is it possible to find this reference programmatically, using Python API?

Thanks

Find more posts tagged with

HyperMesh

OptiStruct

Python

Python Framework

Accepted answers

Michal Stefuca

Hi @Igor_S

You can use model.hm_getreferencedentities.

Thanks,
Michal Stefuca

Automation & Customization

All comments

Igor_S

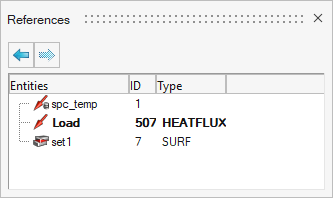

here's the 'References' tab, b.t.w.

So, given the LoadFlux with id 507, I'd like to locate the Set with id 7

Michal Stefuca

Hi @Igor_S

You can use model.hm_getreferencedentities.

Thanks,
Michal Stefuca

Automation & Customization

Igor_S

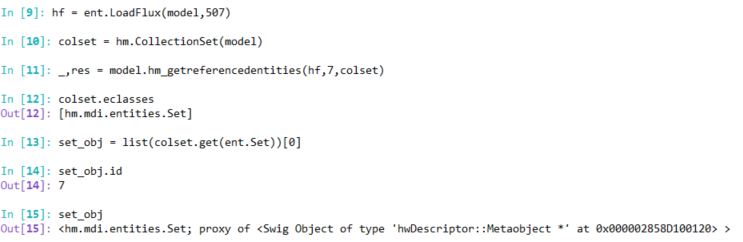

Thank you very much for the prompt response. It works!

Igor_S

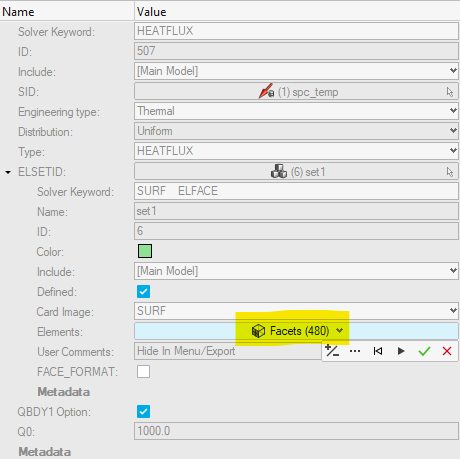

Follow-up question: The HEATFLUX in the dialog refers to Facets rather than Elements. However, (6) set1 references Element objects. How can I get the facets?
