How to Create a Response to EDEM Statistical Domain Information in Hyperstudy

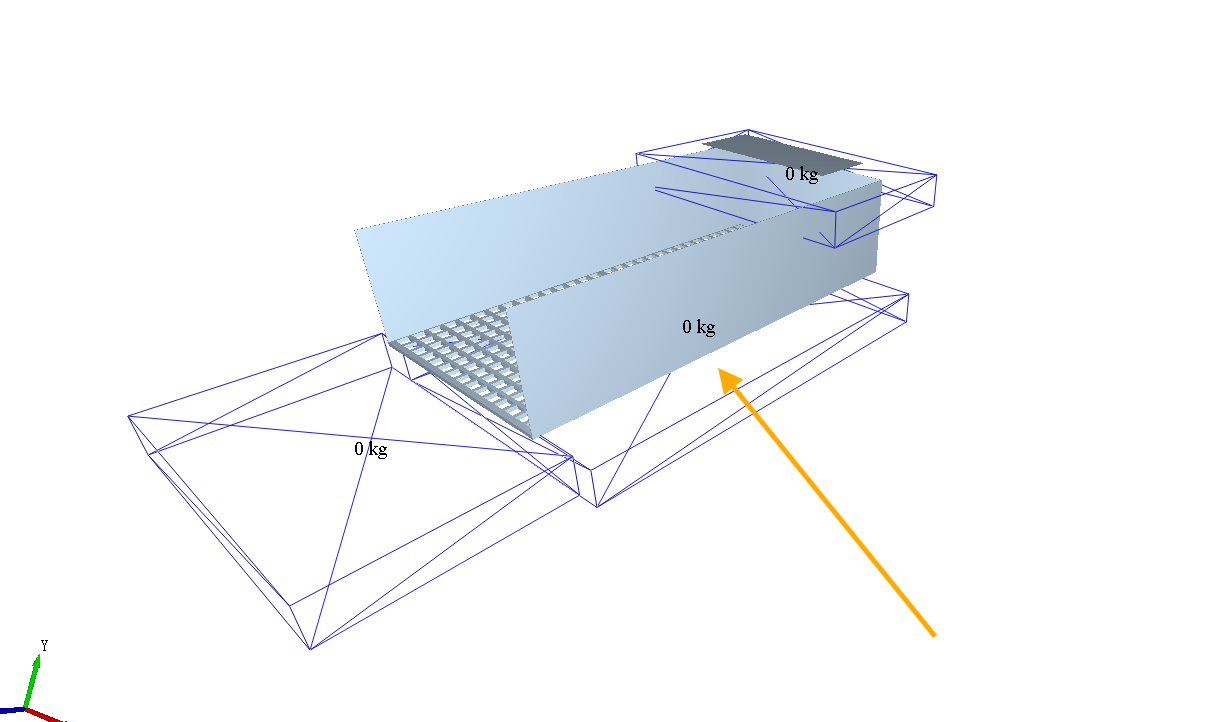

Just for example, I have a vibrating screen and I want to study the relationship between the static friction coefficient and the mass flow velocity (or accumulated mass over time) of the lower layer of the vibrating screen. How can I create a response?

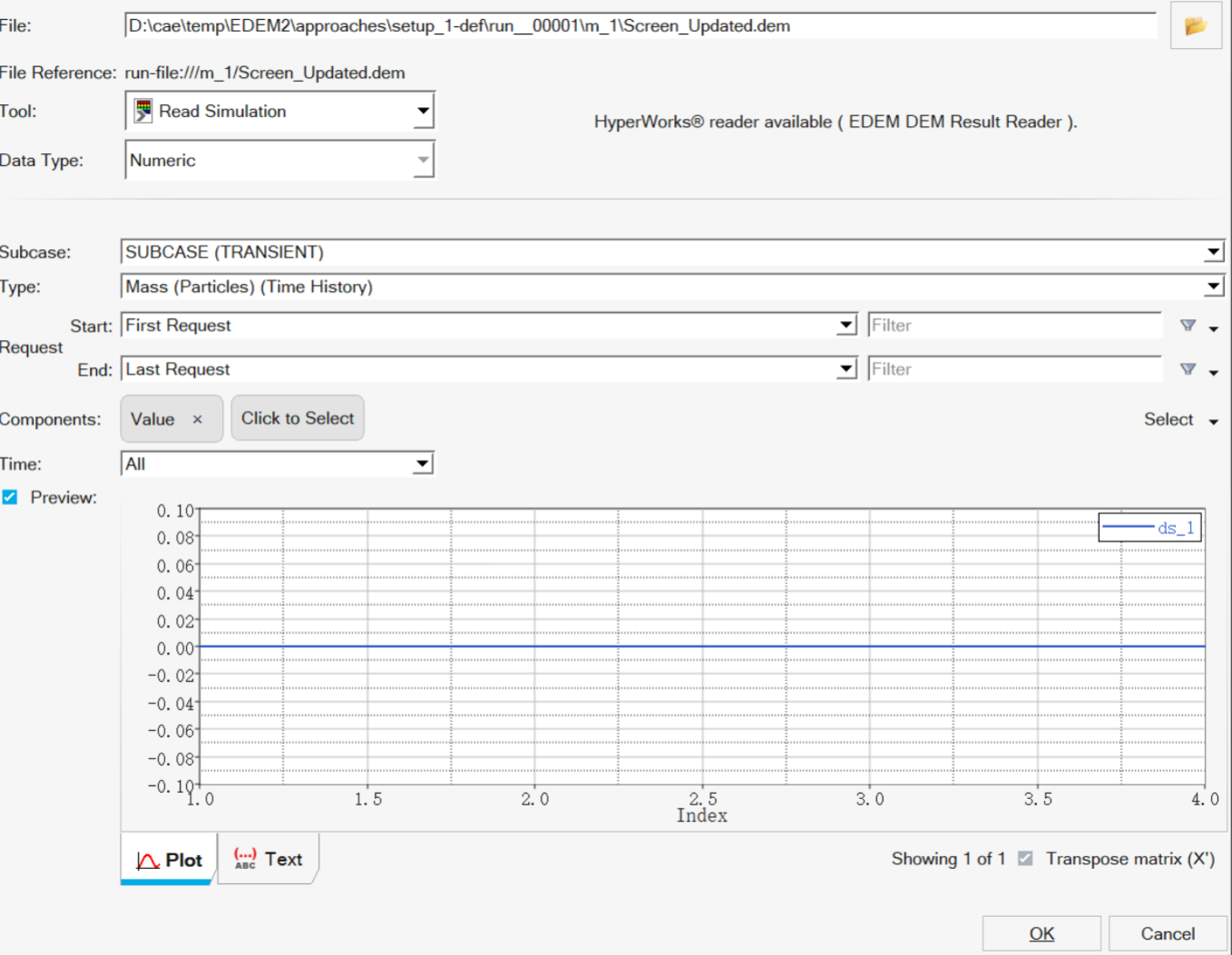

I couldn't find the statistical field I set when setting the cross-section in the data source

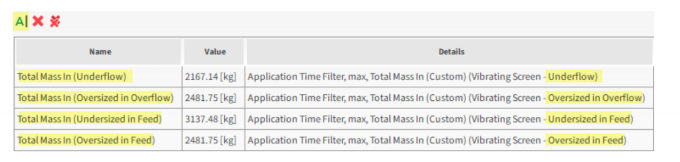

In other companies' discrete element software, this can be set through the variable panel and smoothly imported into software similar to Hyperstudy

Here are my source files

Screen_Updated.zip

Find more posts tagged with

EDEM

HyperStudy

Accepted answers

Stephen Cole

Hi,

First you need to ensure it's exported from EDEM in the CSV. If you go to the Analyst > File > Export Results data you can setup the export here. Best to use the 'omit all text' to make it easier for HyperStudy to read the data, although you'll have to know which column relates to which query.

Once this is setup the .csv will be exported when you run EDEM in HyperStudy.

In the above link there is a video tutorial which outlines how to then read this in HyperStudy. The description is from 2 minutes into the video.

Regards

Stephen

All comments

Stephen Cole

Hi,

With regard to the relationship are you looking to vary the friction and run a series of simulations to investigate the relationship? You can do this via the EDEM-HyperStudy connector to automatically vary the inputs and analyse the response.

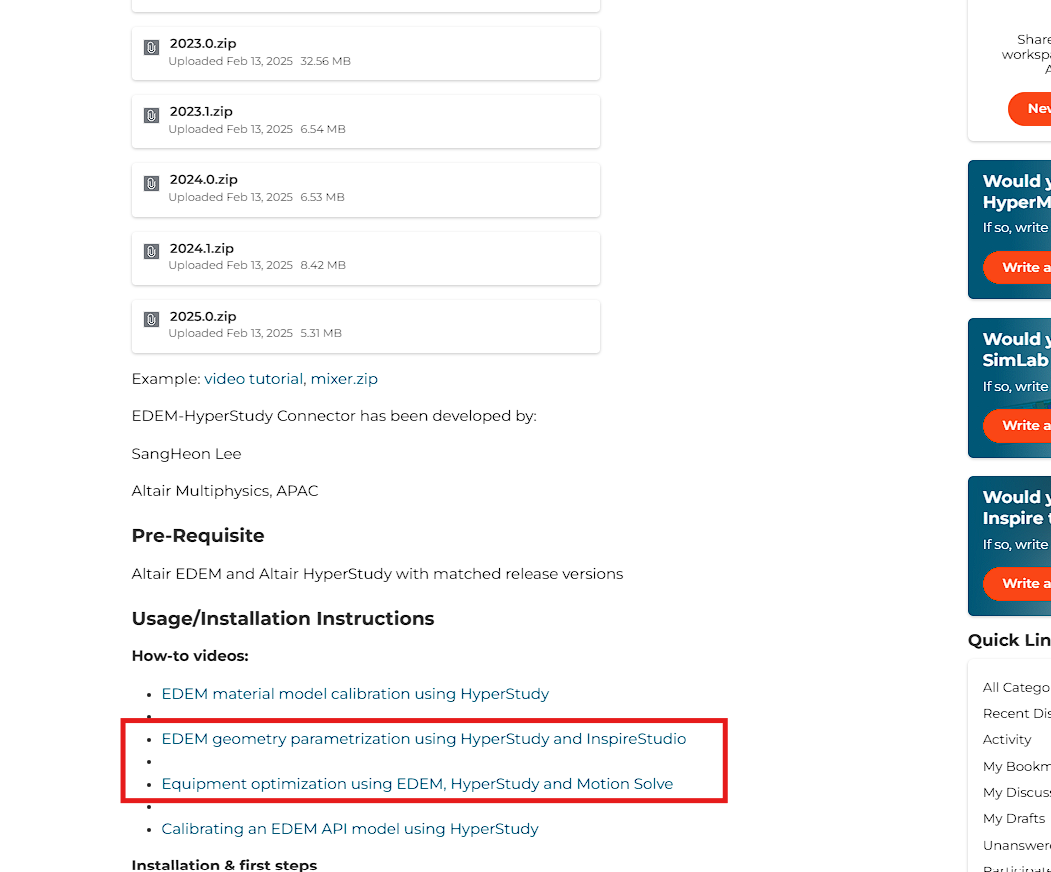

https://community.altair.com/discussion/35630/edem-hyperstudy-connector-installers-and-user-guide

Jin1

Yes, I am using this plugin, but I am not very good at setting the output response. I want to use the mass flow rate or total mass in the Bin of EDEM post-processing as a response. How should I set this?

Stephen Cole

Hi,

Once this is setup the .csv will be exported when you run EDEM in HyperStudy.

In the above link there is a video tutorial which outlines how to then read this in HyperStudy. The description is from 2 minutes into the video.

Regards

Stephen

Jin1

I watched the video and indeed I wanted to do it. Your answer has taught me new skills, but I would like to delve deeper into the Python scripts and function settings in it. Can you provide me with models for these two cases? I want to do it again to deepen my understanding

Stephen Cole

Hi, for Python I'd start here:

https://community.altair.com/discussion/62356/getting-started-with-edempy-advanced-post-processing-of-edem-simulations

There are further links to videos and examples from this page.

Regards

Stephen
