How to represent the tangential forces in a different coordinate system?

Hello everyone,

I would like to get help with the representation of the tangential forces in hyperview with a different coordinate system than the existing one. I have a model that is not oriented to the coordinate axes so I have to place a secondary coordinate system. How could I place such a coordinate system? What would have to be done to see the tangential forces in those secondary directions?

Could someone help me to be able to solve this problem or it cannot be done?

Thank you very much

Find more posts tagged with

HyperView

Auto Tagged

Accepted answers

All comments

Secking13

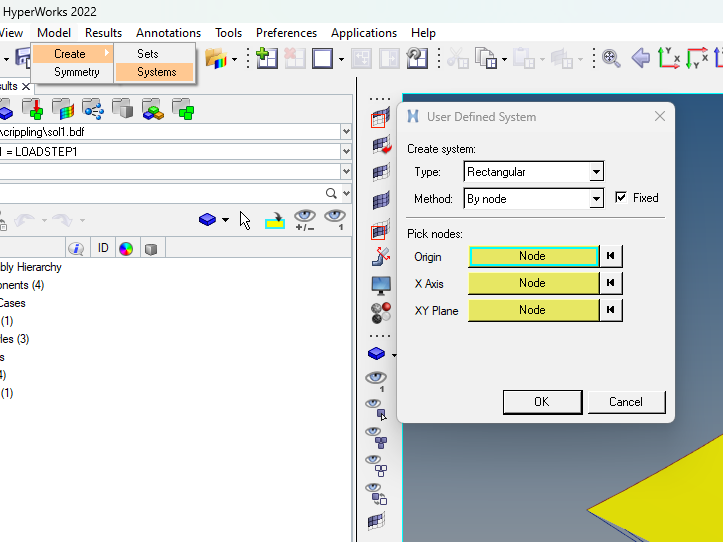

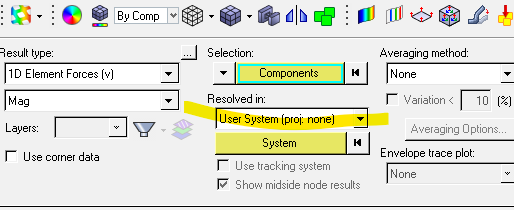

I dont know what types of forces are you looking for but in hyperview creating an system axis is very easy. In the contour menu you can select the coordinate system as user defined. I hope these images help you

Rafa0123

Thank you for your response.

I have created a bias system in my model, but then in the hyperview in this section I do not see the system I have created. I imagine I am not doing some intermediate step to make the newly created system an output and apply the forces on that system.

Could someone help me, I don't understand what the problem is?
