In the video, I'm curious about how to obtain the file that is underlined in red. When I run HyperStudy, all the other files are generated, but the underlined file is not created.
Dear @Hjun,

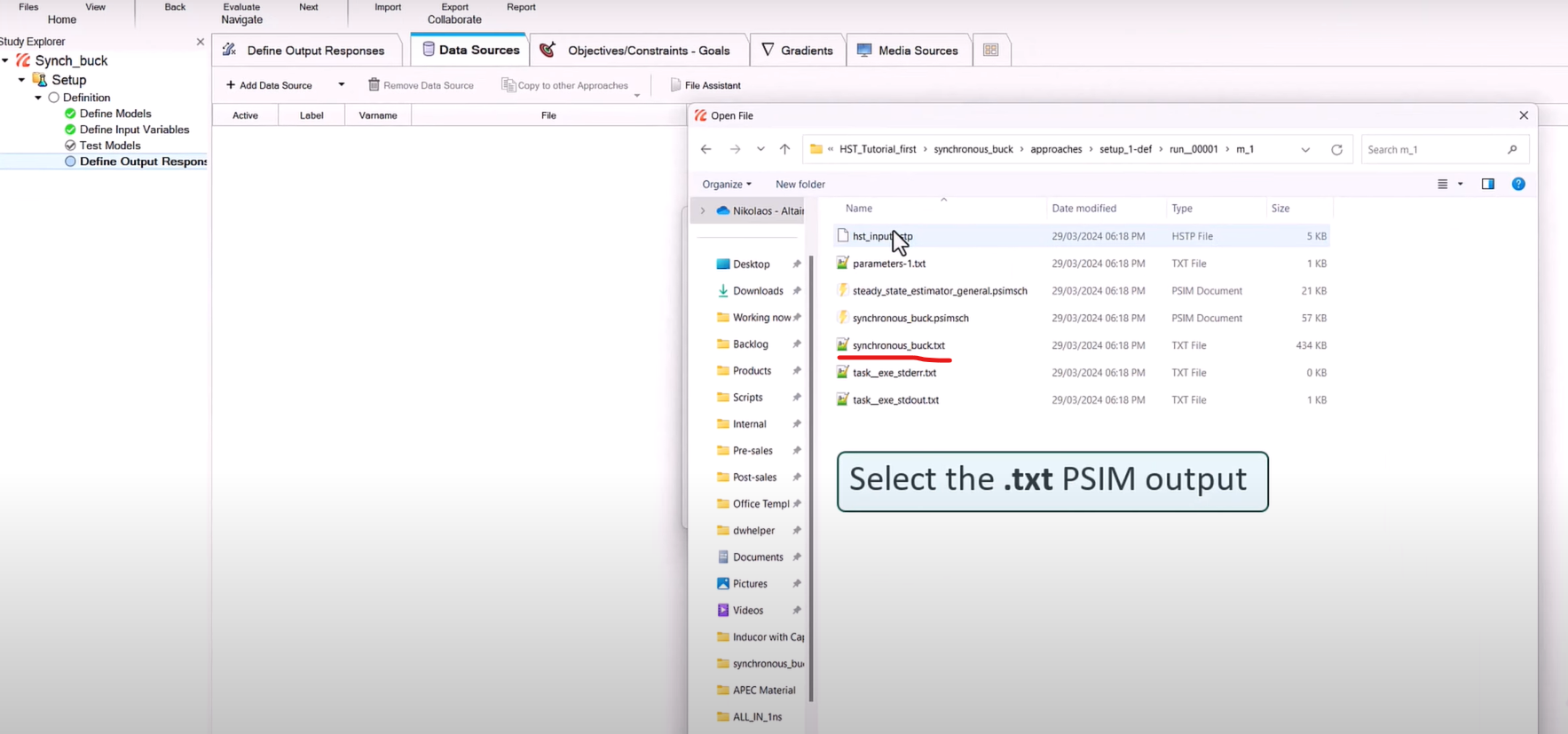

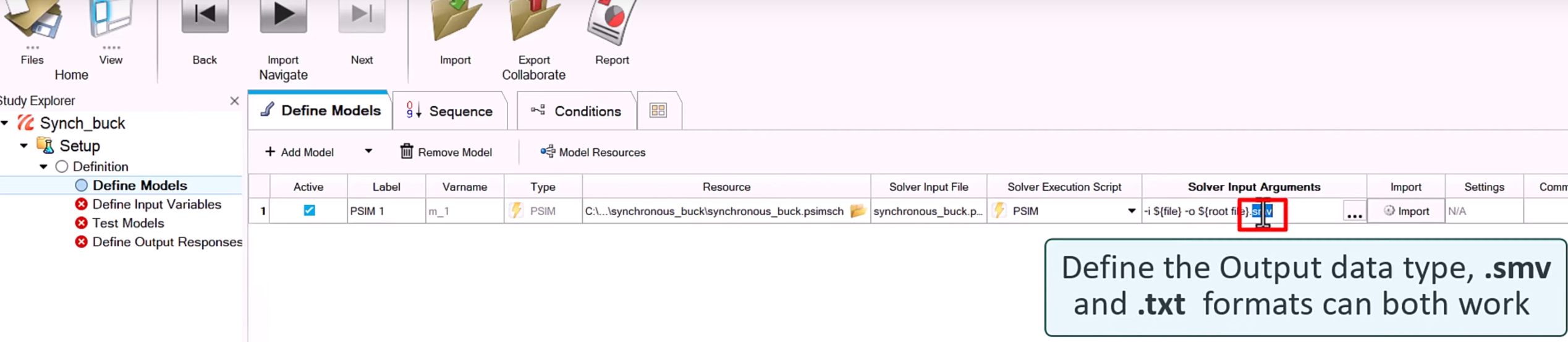

The default PSIM output type is .smv. As shown in the video tutorial (3:50) you have to manually change the output to .txt. But this will increase the file size.

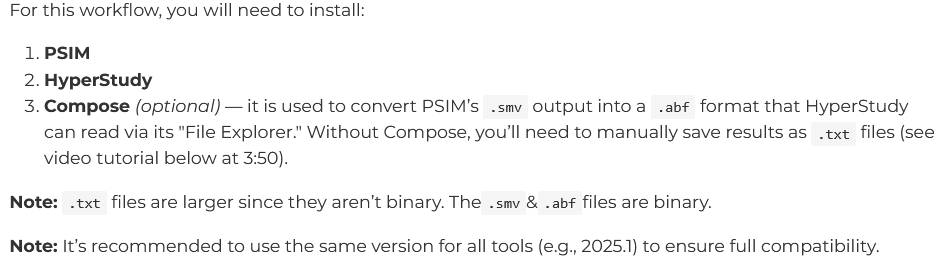

It is important to note that HyperStudy doesn't recognize the .smv format directly. To solve this, we propose installing Altair Compose (it needs to be same version as PSIM) which automatically translates the .smv output to .abf
You can view more details in the updated tutorial here: https://community.altair.com/discussion/63497
Best regards,
Nikos Dimitrakopoulos
