Hello,
I am working on a bogie analysis and facing an issue when using contact elements. The geometry export process does not complete successfully.
You can check it in this file.
Thank you in advance.
Best regards,
Christos
Hello Christos,
Does the model crash when it is exporting or does the geometry export take a very long time?

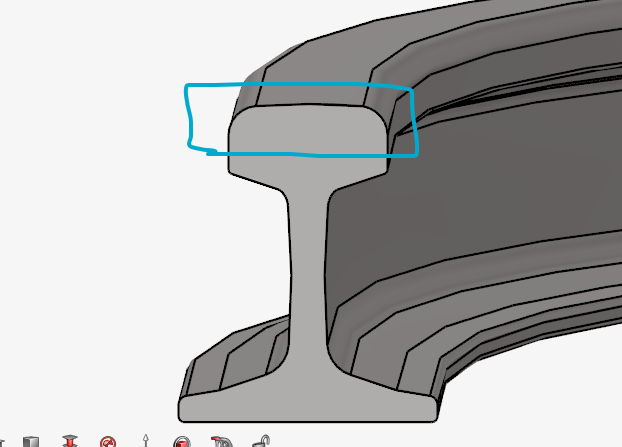

The reason can be due to geometry. Since geometry has a contact entity and the overall volume is very large, it needs to be meshed by Motionsolve before the analysis can begin. As you have experienced, this can take a very long time.
A couple of suggestions on reducing the export time.
Hope this helps!
Christopher Fadanelli
