Can anybody please fix the 3D pattern in postfeko of this simple patch antenna?[ FEKO V. 2023.1]

sswh2 · 2025-06-28T06:11:10+00:00

There was an error rendering this rich post.

sswh2

Hi,

From this attached simple probe-fed

flat_sheet_square_ground_a_46.98_final_probe.cfx

patch antenna, I am getting the 3D farfield in postfeko much much below the antenna structure, so I am getting negative value for the gain and directivity. I think there are some issues with the antenna layers/faces; therefore, the radiation field is always below the antenna. Can anybody kindly fix this issue?

Thanks in advance!

Find more posts tagged with

Feko

Auto Tagged

Accepted answers

Torben Voigt

Hi @sswh2 ,

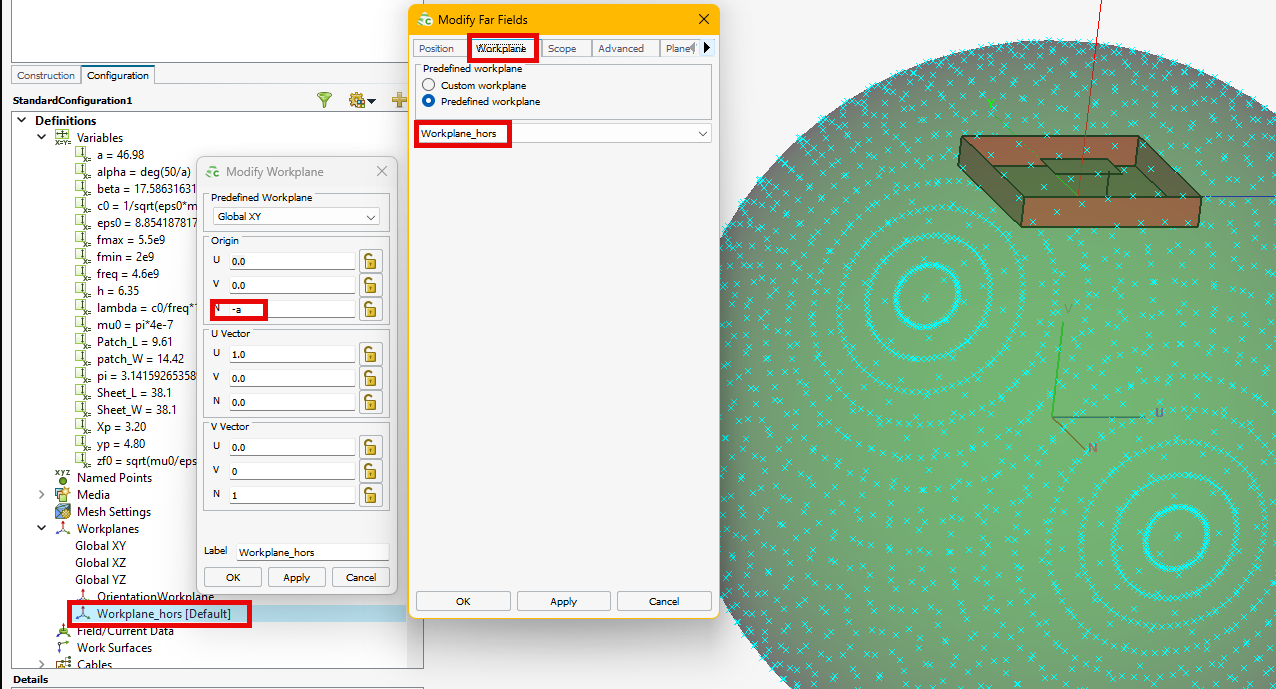

Your farfield request is defined havin its origin at z = -a:

Since a = 46.98 the origin of the farfield pattern will be displayed at -46.98 mm (below the patch).

You can either move the farfield in POSTFEKO or change the workplane setting in CADFEKO, like in the attached model flat_sheet_square_ground_a_46.98_final_probe_alt.cfx.

Best regards,
Torben

flat_sheet_square_ground_a_46.98_final_probe_alt.cfx

Torben Voigt

Note, changing the origin of the farfield request will not affect the farfield values significantly. But apart from the origin, the rotation of the farfield request in your model has also changed, so that theta = 0 is now in the negative y-direction. Hence the confusion about the values.

flat_sheet_square_ground_a_46.98_final_probe_alt.cfx

Torben Voigt

Hi @sswh2 ,

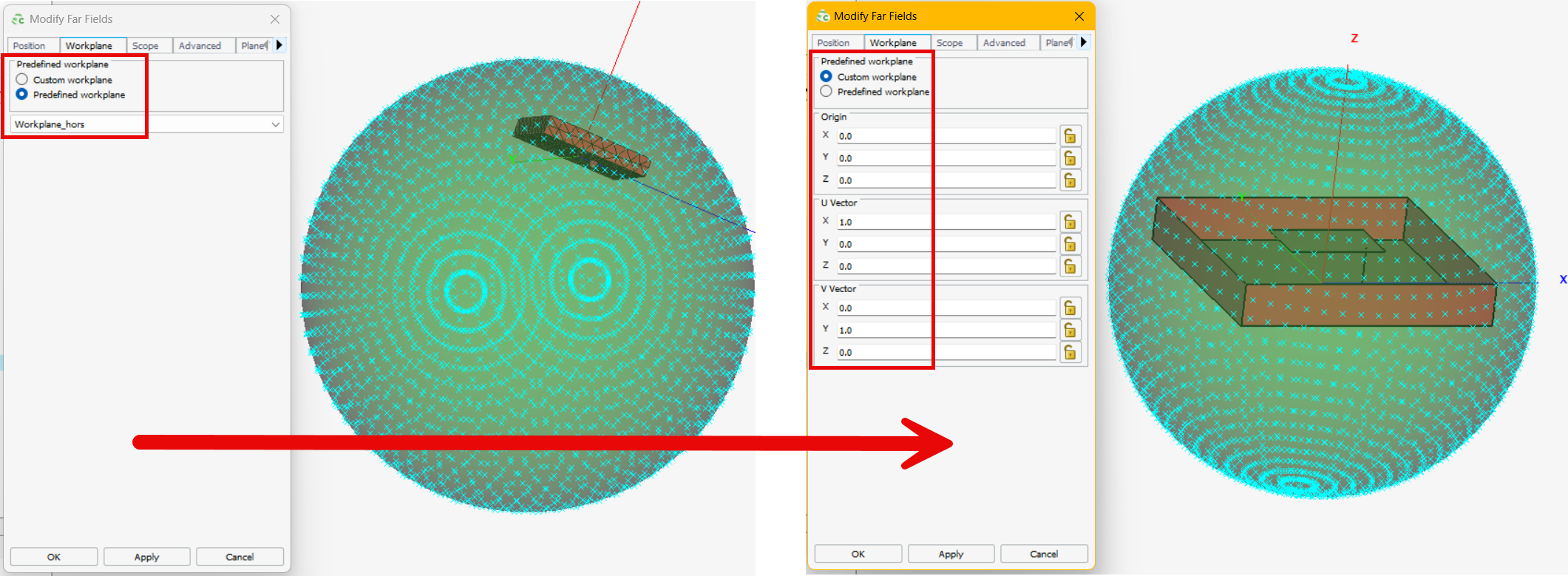

All you need to do is change the workplane of your farfield reqest. It should like like this:

Best regards,
Torben

flat_sheet_square_ground_a_46.98_final_probe_alt.cfx

All comments

Torben Voigt

Hi @sswh2 ,

Your farfield request is defined havin its origin at z = -a:

Since a = 46.98 the origin of the farfield pattern will be displayed at -46.98 mm (below the patch).

You can either move the farfield in POSTFEKO or change the workplane setting in CADFEKO, like in the attached model flat_sheet_square_ground_a_46.98_final_probe_alt.cfx.

Best regards,
Torben

flat_sheet_square_ground_a_46.98_final_probe_alt.cfx

Torben Voigt

flat_sheet_square_ground_a_46.98_final_probe_alt.cfx

sswh2

@Torben Voigt sir the model you sent is not opening, my feko IS 2023.1, can you kindly send me 2023.1 version of this updated file?

flat_sheet_square_ground_a_46.98_final_probe_alt.cfx

Torben Voigt

Hi @sswh2 ,

All you need to do is change the workplane of your farfield reqest. It should like like this:

Best regards,
Torben

flat_sheet_square_ground_a_46.98_final_probe_alt.cfx

sswh2

Thank you! it's working @Torben Voigt sir.
