connector modelling with Penta Mig?

Lugi_ntr14 · 2025-06-25T08:43:07+00:00

There was an error rendering this rich post.

Hi, i am currently using Optistruct, and I am having some issue with the connector modeling. In this photo you can see that the gap between the two surface is not fully filled by the penta mig , it is not an error i think but there may be some problems when i will launch the model because the stress there may be overstimated.

Can you give me some advice please

Find more posts tagged with

OptiStruct

Accepted answers

All comments

almeidaaap

Hello, Lugi_ntr14,

I would recommend start changing the Realization Details (Width and Fit option), you can check more details in this page from the help: https://help.altair.com/hwdesktop/hwx/topics/pre_processing/connectors/realizations/penta_mig_c_2.htm

Regards,

Arthur

Lugi_ntr14

Hi , thank you very much for your reply, unfortunately i changed the width and the fit option by putting fitted, but it is still not fully filled.

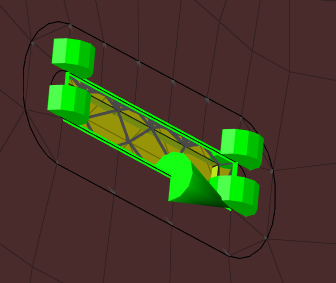

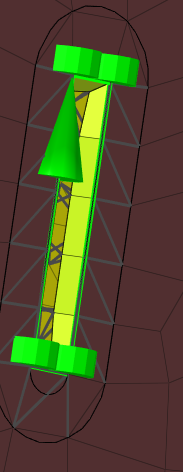

I tried to do a seam weld of another part, and i have the same problem; in fact while for a vertical gap (second photo) the seam weld is fully filled, for a orizzontal part it is not(first photo).
