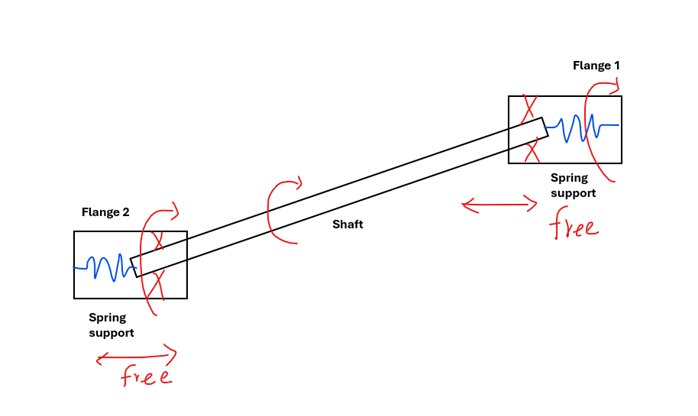

How to model CV joint between two solid flanges as indicated in the above pic?
Hi @Yuwaraj_s,

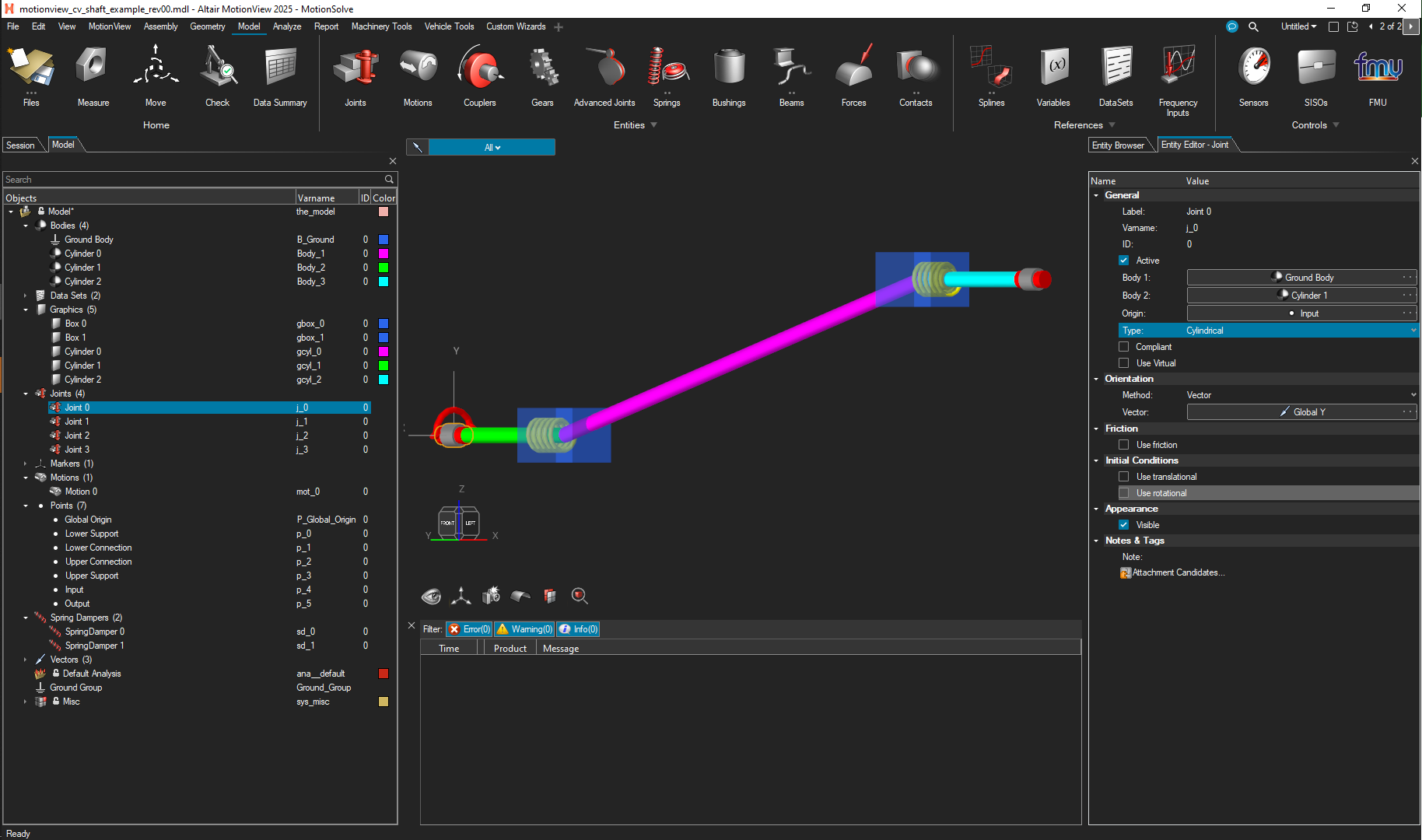

Depending on your application, MotionView is perfectly capable of creating this type of system. See below for a simple mock-up of your diagram:

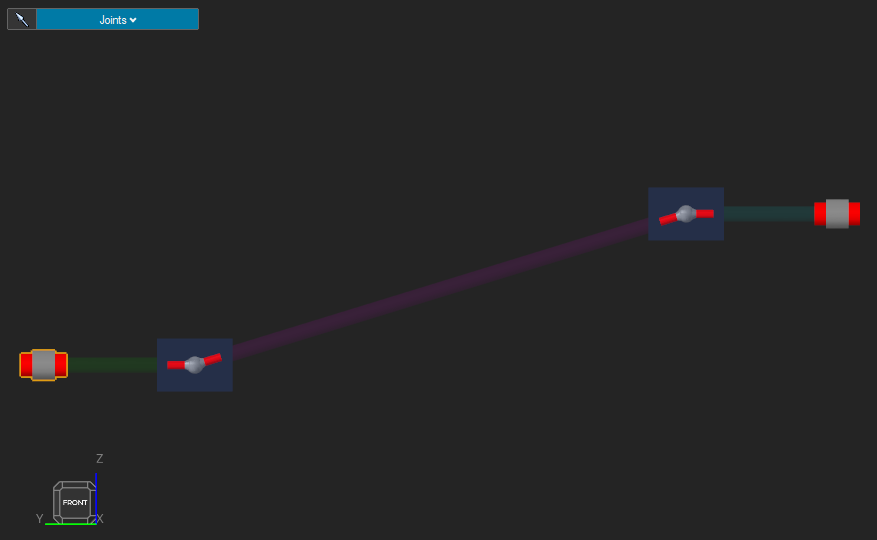

Joints Only:
The constraints on this model would be cylindrical joints and CV joints. Springs would allow the deflection and a Motion would provide the rotational velocity desired.
If you think this is the solution for you, Altair offers an introductory course, MotionView/MotionSolve Introduction eLearning, for solving multi-body dynamics (MBD) problems using HyperWorks and illustrates constructing, solving and post-processing MBD problems. This course focuses on general Multibody mechanisms and is a starting point for learning modeling in MotionSolve.
You can find it at the following link: https://learn.altair.com/enrol/index.php?id=496
Altair also offers a specialized multi-body dynamics (MBD) course for vehicle modeling, called MotionSolve for Vehicle Modeling eLearning. This class introduces the application of MotionSolve for vehicle modeling applications, such as assembly of half or full car models, vehicle event creation, generating event reports, modifying vehicle subsystems, and preliminary verification methods.
You can find it at the following link: https://learn.altair.com/enrol/index.php?id=497
Hope this helps!
Adam Reid
