Periodic surface mesh icon

stefht85
stefht85 Altair Community Member
in Community Q&A

Dear all, i used hypermesh in the past but with the new visualization in hyperworks i not find the icon for periodic mesh. Could some one help me?

Below there is a screenshot of old hypermesh 2017… but where i can find this command icon on hyperworks?


Thanks

Stefano

Tagged:

Answers

  • solon
    solon
    Altair Employee

    Hello,

    Periodic Mesh tool can be accessed through search

  • Michael Herve
    Michael Herve
    Altair Employee

    hello @stefht85 ,

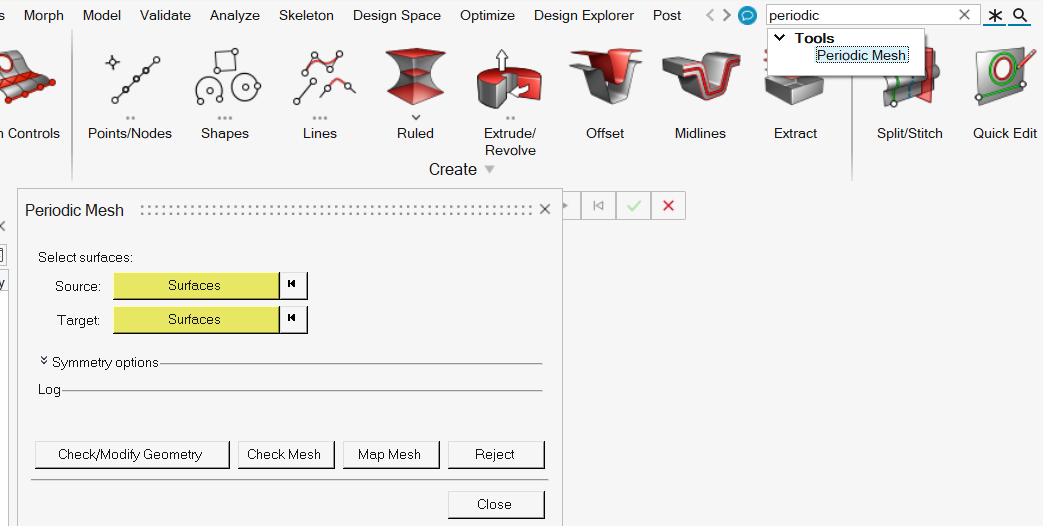

    if you search for periodic with the top right loop you will have access to the legacy tool:


    That said, in you case, Periodic mesh may not be the most relevant approach. Just looking at the screenshot, it seems you have similar parts, instancing them then meshing just one could be an option here

    Hope that helps,

    Michael

  • stefht85
    stefht85 Altair Community Member

    Dears, also i did it by the research pannel. I was looking periodic mesh in tollbars icon.

    I think that a icon isn't, right?
