Is it possible in HyperStudy not only to use the maximum speed point and the base speed point in the simulation, but also to calculate the cycle efficiency at the same time?

Ann-Sophie Schmitt

Is it possible in HyperStudy not only to use the maximum speed point and the base speed point in the simulation, but also to calculate the cycle efficiency at the same time? Currently, I calculate the cycle efficiency separately using the WLTP cycle with FluxMotor.

Alexandru-Ionel Constantin

Hi Ann-Sophie Schmitt,

It's possible to use the base speed and maximum points and the duty cycle efficiency at the same time in HyperStudy.

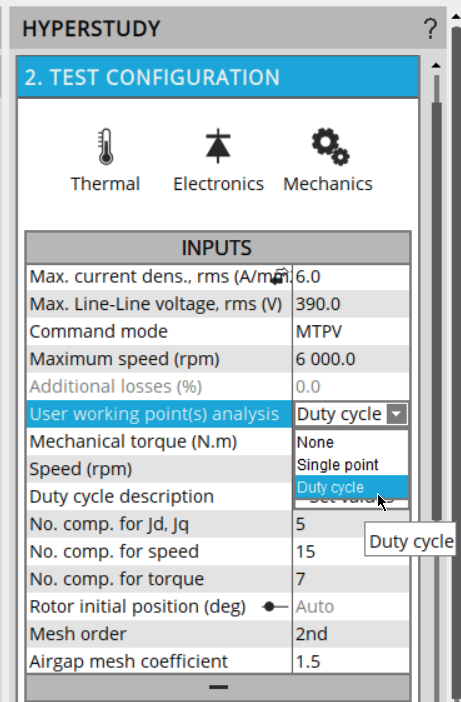

When exporting to FluxMotor model for HypersStudy for Test selection>Performace mapping >Efficiency map under Test configuration settings you need to set User working point(s) analysis to Duty Cycle and provide the time, speed and torque values under Duty cycle description.

As Parameters for Hyperstudy you need to choose:

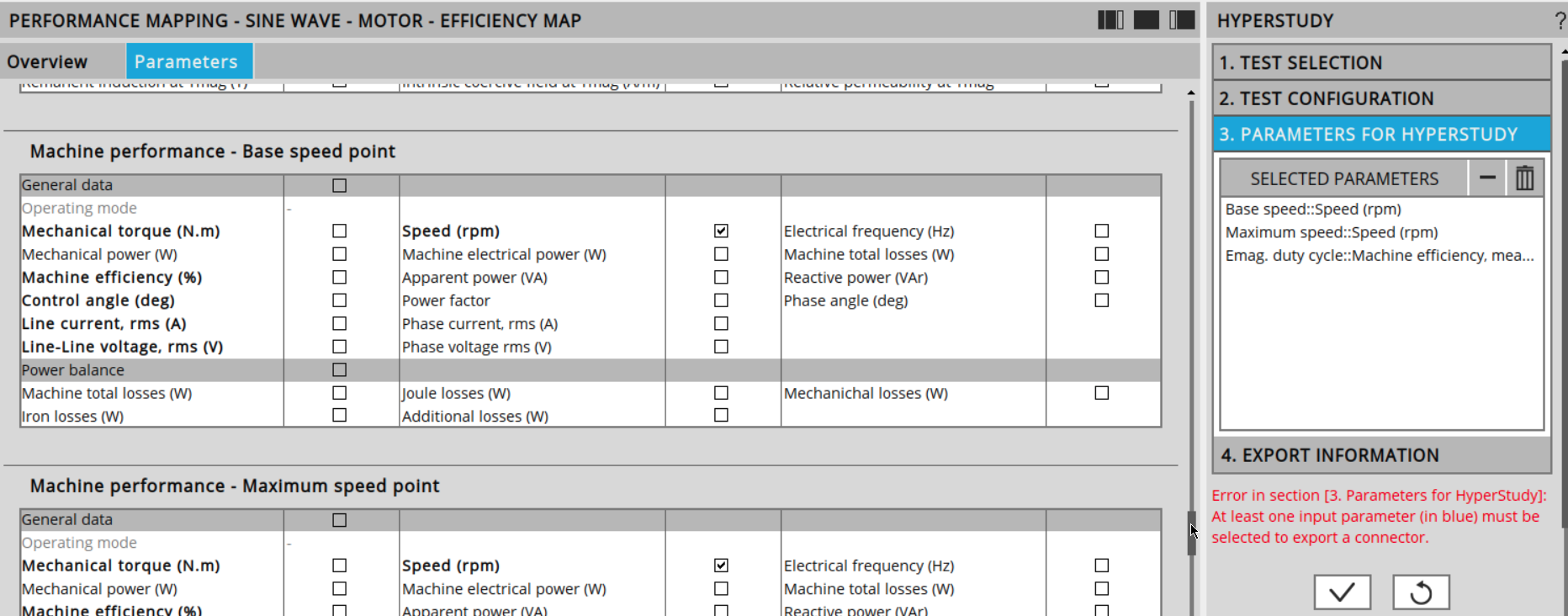

- Speed from Machine Performance- Base speed point and Machine Performance - Maximum speed point;

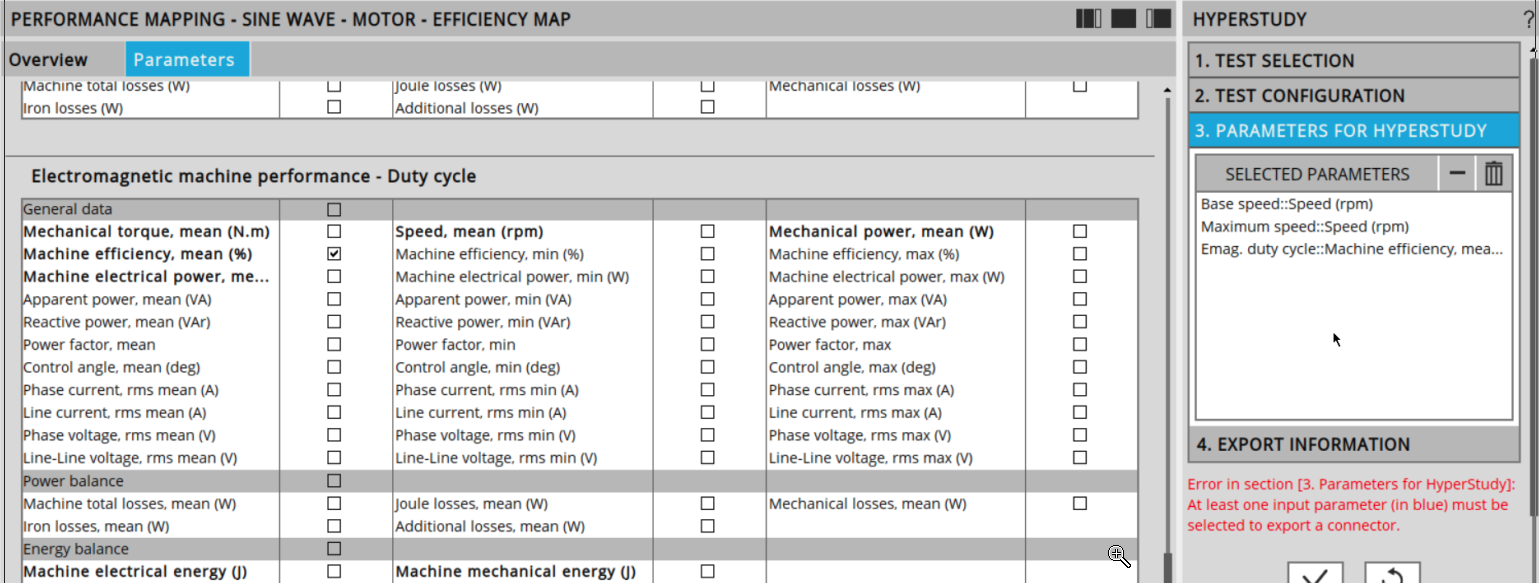

- Machine efficiency - mean value from Electromagnetic machine performance - Duty Cycle.



Best regards,

Alexandru
