Points in a different coordinates system

CdricCd
CdricCd Altair Community Member
edited October 2020 in Community Q&A

Hi,



I'd like to create points in a different coordinates system than the origin one but I can't find the option.

For example I create a marker, I orient it with angles compared to the origin, then I would like to create points in the coordinate system of the new marker. How can I do it without doing manually all the cosinus/sinus transformations ?



Thanks !

Tagged:

Answers

  • Praful
    Praful
    Altair Employee
    edited October 2018

    Hello -

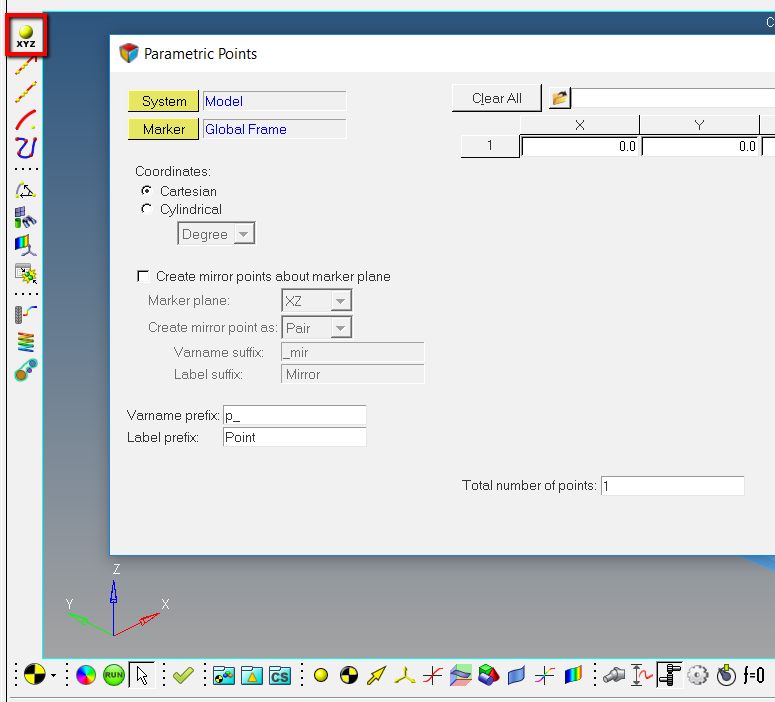

    You should be able to do this by using the 'Parametric Points' tool.

    In 2017.2,  it is available in the side toolbar as shown in the attached image



    Regards

    Praful







    <?xml version="1.0" encoding="UTF-8"?>parametric_points.png

  • CdricCd
    CdricCd Altair Community Member
    edited October 2018

    Oh nice I totally forgot about that option !



    Thanks for the rapidity !



    Regards

  • Praful
    Praful
    Altair Employee
    edited October 2018

    You are welcome :)/emoticons/default_smile.png' srcset='/emoticons/smile@2x.png 2x' title=':)' width='20' />

    Note that, this is kind of a macro tool, that helps in creating points in relation to a marker. Ultimately, the point coordinates in the panel are represented through functions called as location functions such as loc_rel_to, loc_cylindrical etc..

    Once these points are created, any modification needs to be done in the panel, by editing these function expressions.



    Regards

    Praful



  • CdricCd
    CdricCd Altair Community Member
    edited October 2018

    Ok thanks for the tip !
