Hi all,
It's report a weird behaviour of the Extract Information operator of the Text Processing extension :

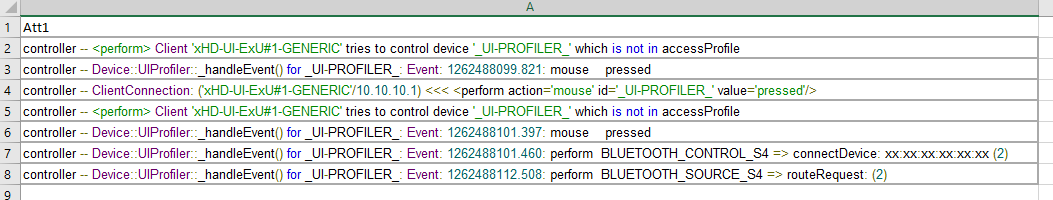

I have a very simple dataset (Excel file in attached file):
I want to extract in the two last lines :
- the action following the word "perform" ie "BLUETOOTH_CONTROL_S4" and "BLUETOOTH_SOURCE_S4" in a new attribute called "action"
- the number in the brackets ie "2" in a new attribute called "number".
As a results, I'm obtaining the following dataset (the "number" attribute is empty) :

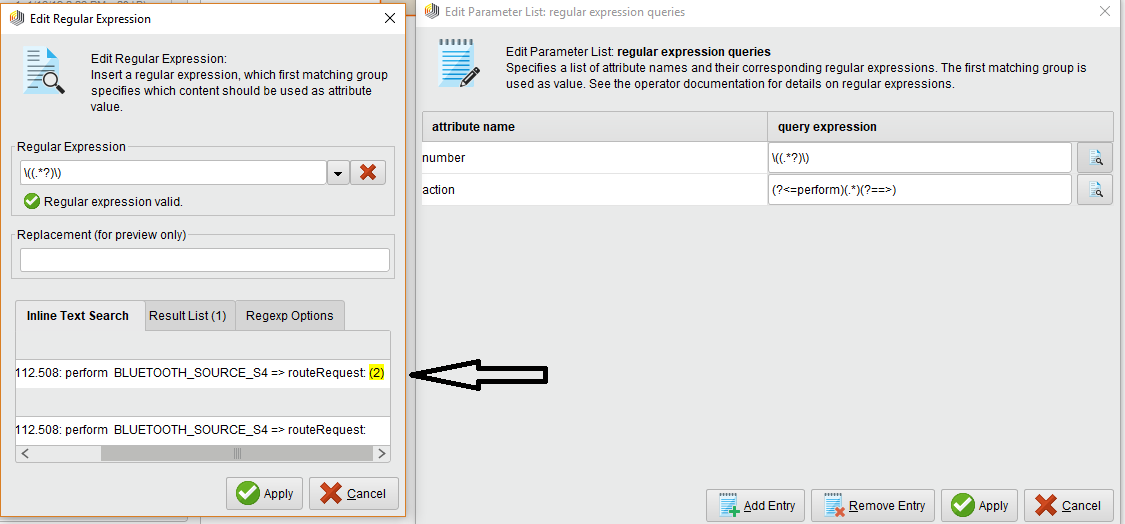

I precise that my regex in the Extract Information parameters is correct :
In conclusion I have no problem with my first attribute "action", the information is correctly extracted.
I precise that I performed a test with Generate Extract operator (see the 2nd screenshot) and with this operator, the number "2" is correctly extracted...
How can we explain this behaviour ?
Regards,
Lionel
NB : the process :
It's report a weird behaviour of the Extract Information operator of the Text Processing extension :
I have a very simple dataset (Excel file in attached file):
I want to extract in the two last lines :
- the action following the word "perform" ie "BLUETOOTH_CONTROL_S4" and "BLUETOOTH_SOURCE_S4" in a new attribute called "action"
- the number in the brackets ie "2" in a new attribute called "number".
As a results, I'm obtaining the following dataset (the "number" attribute is empty) :
I precise that my regex in the Extract Information parameters is correct :
In conclusion I have no problem with my first attribute "action", the information is correctly extracted.
I precise that I performed a test with Generate Extract operator (see the 2nd screenshot) and with this operator, the number "2" is correctly extracted...
How can we explain this behaviour ?
Regards,
Lionel
NB : the process :
<?xml version="1.0" encoding="UTF-8"?><process version="9.2.000-SNAPSHOT">
<context>
<input/>
<output/>
<macros/>
</context>
<operator activated="true" class="process" compatibility="9.2.000-SNAPSHOT" expanded="true" name="Process">
<parameter key="logverbosity" value="init"/>
<parameter key="random_seed" value="2001"/>
<parameter key="send_mail" value="never"/>
<parameter key="notification_email" value=""/>
<parameter key="process_duration_for_mail" value="30"/>
<parameter key="encoding" value="SYSTEM"/>
<process expanded="true">
<operator activated="true" class="read_excel" compatibility="9.2.000-SNAPSHOT" expanded="true" height="68" name="Read Excel" width="90" x="45" y="187">
<parameter key="excel_file" value="C:\Users\Lionel\Documents\Formations_DataScience\Rapidminer\Tests_Rapidminer\Log_extraction\log_extraction.xlsx"/>
<parameter key="sheet_selection" value="sheet number"/>
<parameter key="sheet_number" value="1"/>
<parameter key="imported_cell_range" value="A1"/>
<parameter key="encoding" value="SYSTEM"/>
<parameter key="first_row_as_names" value="true"/>
<list key="annotations"/>
<parameter key="date_format" value=""/>
<parameter key="time_zone" value="SYSTEM"/>
<parameter key="locale" value="English (United States)"/>
<parameter key="read_all_values_as_polynominal" value="false"/>
<list key="data_set_meta_data_information">
<parameter key="0" value="Att1.true.polynominal.attribute"/>
</list>
<parameter key="read_not_matching_values_as_missings" value="false"/>
<parameter key="datamanagement" value="double_array"/>
<parameter key="data_management" value="auto"/>
</operator>
<operator activated="true" class="filter_examples" compatibility="9.2.000-SNAPSHOT" expanded="true" height="103" name="Filter Examples" width="90" x="179" y="187">
<parameter key="parameter_expression" value=""/>
<parameter key="condition_class" value="custom_filters"/>
<parameter key="invert_filter" value="false"/>
<list key="filters_list">
<parameter key="filters_entry_key" value="Att1.contains.Event"/>
</list>
<parameter key="filters_logic_and" value="true"/>
<parameter key="filters_check_metadata" value="true"/>
</operator>
<operator activated="true" class="split" compatibility="9.2.000-SNAPSHOT" expanded="true" height="82" name="Split" width="90" x="313" y="187">
<parameter key="attribute_filter_type" value="single"/>
<parameter key="attribute" value="Att1"/>
<parameter key="attributes" value=""/>
<parameter key="use_except_expression" value="false"/>
<parameter key="value_type" value="nominal"/>
<parameter key="use_value_type_exception" value="false"/>
<parameter key="except_value_type" value="file_path"/>
<parameter key="block_type" value="single_value"/>
<parameter key="use_block_type_exception" value="false"/>
<parameter key="except_block_type" value="single_value"/>
<parameter key="invert_selection" value="false"/>
<parameter key="include_special_attributes" value="false"/>
<parameter key="split_pattern" value="Event:"/>
<parameter key="split_mode" value="ordered_split"/>
</operator>
<operator activated="true" class="nominal_to_text" compatibility="9.2.000-SNAPSHOT" expanded="true" height="82" name="Nominal to Text" width="90" x="447" y="187">
<parameter key="attribute_filter_type" value="all"/>
<parameter key="attribute" value=""/>
<parameter key="attributes" value=""/>
<parameter key="use_except_expression" value="false"/>
<parameter key="value_type" value="nominal"/>
<parameter key="use_value_type_exception" value="false"/>
<parameter key="except_value_type" value="file_path"/>
<parameter key="block_type" value="single_value"/>
<parameter key="use_block_type_exception" value="false"/>
<parameter key="except_block_type" value="single_value"/>
<parameter key="invert_selection" value="false"/>
<parameter key="include_special_attributes" value="false"/>
</operator>
<operator activated="true" breakpoints="after" class="text:generate_extract" compatibility="8.1.000" expanded="true" height="68" name="Generate Extract" width="90" x="581" y="187">
<parameter key="source_attribute" value="Att1_2"/>
<parameter key="query_type" value="Regular Expression"/>
<list key="string_machting_queries"/>
<parameter key="attribute_type" value="Nominal"/>
<list key="regular_expression_queries">
<parameter key="number_generate_extract" value="\((.*?)\)"/>
</list>
<list key="regular_region_queries"/>
<list key="xpath_queries"/>
<list key="namespaces"/>
<parameter key="ignore_CDATA" value="true"/>
<parameter key="assume_html" value="true"/>
<list key="index_queries"/>
<list key="jsonpath_queries"/>
</operator>
<operator activated="true" class="text:process_document_from_data" compatibility="8.1.000" expanded="true" height="82" name="Process Documents from Data" width="90" x="782" y="187">
<parameter key="create_word_vector" value="true"/>
<parameter key="vector_creation" value="Term Occurrences"/>
<parameter key="add_meta_information" value="true"/>
<parameter key="keep_text" value="false"/>
<parameter key="prune_method" value="none"/>
<parameter key="prune_below_percent" value="3.0"/>
<parameter key="prune_above_percent" value="30.0"/>
<parameter key="prune_below_rank" value="0.05"/>
<parameter key="prune_above_rank" value="0.95"/>
<parameter key="datamanagement" value="double_sparse_array"/>
<parameter key="data_management" value="auto"/>
<parameter key="select_attributes_and_weights" value="false"/>
<list key="specify_weights"/>
<process expanded="true">
<operator activated="false" class="text:extract_information" compatibility="8.1.000" expanded="true" height="68" name="Extract Information (2)" width="90" x="246" y="238">
<parameter key="query_type" value="Regular Expression"/>
<list key="string_machting_queries"/>
<parameter key="attribute_type" value="Numerical"/>
<list key="regular_expression_queries">
<parameter key="number" value="\((.*?)\)"/>
</list>
<list key="regular_region_queries"/>
<list key="xpath_queries"/>
<list key="namespaces"/>
<parameter key="ignore_CDATA" value="true"/>
<parameter key="assume_html" value="true"/>
<list key="index_queries"/>
<list key="jsonpath_queries"/>
</operator>
<operator activated="true" class="text:extract_information" compatibility="8.1.000" expanded="true" height="68" name="Extract Information" width="90" x="179" y="34">
<parameter key="query_type" value="Regular Expression"/>
<list key="string_machting_queries"/>
<parameter key="attribute_type" value="Nominal"/>
<list key="regular_expression_queries">
<parameter key="number" value="\((.*?)\)"/>
<parameter key="action" value="(?<=perform)(.*)(?==>)"/>
</list>
<list key="regular_region_queries"/>
<list key="xpath_queries"/>
<list key="namespaces"/>
<parameter key="ignore_CDATA" value="true"/>
<parameter key="assume_html" value="true"/>
<list key="index_queries"/>
<list key="jsonpath_queries"/>
</operator>
<connect from_port="document" to_op="Extract Information" to_port="document"/>
<connect from_op="Extract Information" from_port="document" to_port="document 1"/>
<portSpacing port="source_document" spacing="0"/>
<portSpacing port="sink_document 1" spacing="0"/>
<portSpacing port="sink_document 2" spacing="0"/>
</process>
</operator>
<connect from_op="Read Excel" from_port="output" to_op="Filter Examples" to_port="example set input"/>
<connect from_op="Filter Examples" from_port="example set output" to_op="Split" to_port="example set input"/>
<connect from_op="Split" from_port="example set output" to_op="Nominal to Text" to_port="example set input"/>
<connect from_op="Nominal to Text" from_port="example set output" to_op="Generate Extract" to_port="Example Set"/>
<connect from_op="Generate Extract" from_port="Example Set" to_op="Process Documents from Data" to_port="example set"/>
<connect from_op="Process Documents from Data" from_port="example set" to_port="result 1"/>
<portSpacing port="source_input 1" spacing="0"/>
<portSpacing port="sink_result 1" spacing="0"/>
<portSpacing port="sink_result 2" spacing="0"/>
</process>
</operator>
</process>
Tagged:
0
Best Answer
-
Hi Lionel,the problem seems to be that the whole linecontroller -- Device::UIProfiler::_handleEvent() for _UI-PROFILER_: 1262488101.460: perform BLUETOOTH_CONTROL_S4 => connectDevice: xx:xx:xx:xx:xx:xx (2)is considered for the regex and the first matching is the () from handleEvent(). If you add a Replace operator with replace what = \(\) and replace by = _ before Process Documents then the 2 is extracted. In the Generate Extract operator the handleEvent() is not present because the attribute Att1_2 is specified.
2
Answers
-
If Lionel cries for help, it should be damned complicated.Bonne chance, Lionel!Maerkli1
-
Hallo Lionel,If I understand correctly, the query expression \((.*?)\) must produce 2 as result. I have replaced by \((.*?)\)S or \((.*?)\)W and I get ? under number in the tableau. Regex is not the issue. If you find the issue, is it possible to share with us?Merci,Maerkli
0 -
Hi Lionel,the problem seems to be that the whole linecontroller -- Device::UIProfiler::_handleEvent() for _UI-PROFILER_: 1262488101.460: perform BLUETOOTH_CONTROL_S4 => connectDevice: xx:xx:xx:xx:xx:xx (2)is considered for the regex and the first matching is the () from handleEvent(). If you add a Replace operator with replace what = \(\) and replace by = _ before Process Documents then the 2 is extracted. In the Generate Extract operator the handleEvent() is not present because the attribute Att1_2 is specified.
