Is it possible to check how much an FE model match with its geometry in HyperMesh?
If possible, we could easily check if thickness of shell models was set correctly, for eaxmple.
Hello @Takashi Obana ,
You can find a first tool under Topology ribbon -> Edit section -> CAD/FE Comparison
Both the source and target entities can be set to geometry and or mesh. Once run, it returns you color code with mismatching, overlapping and corresponding entities.

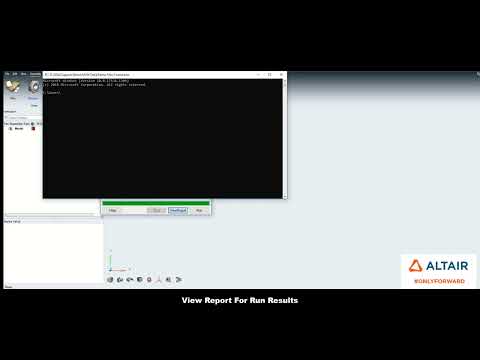

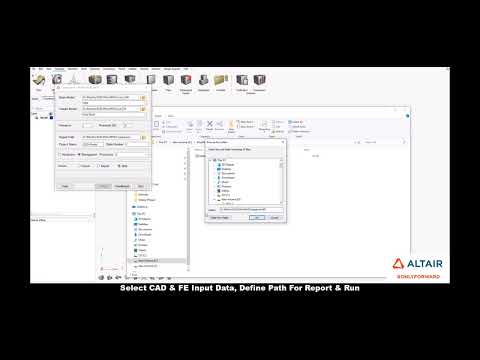

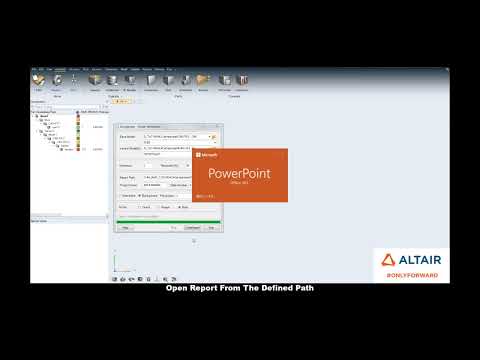

If you want to go further, you can go to Assembly ribbon, there are two tools (Verification and Comparison). Below are some videos about their usage:
https://youtu.be/qToXqsTLMKg?si=dm-RkkChdRWlsOhy
https://youtu.be/PvbDfcGVsyc?si=BvbPnQJ0biGITXFG
https://youtu.be/2_64m6Op2Jo?si=xrOgN2JUamzZrc7O
That said, your requests takes as starting point the fact the thickness can be incoirrect.
We have developped from several years a workflow based on the Part entities, which allows an automatic assignement of material, property and thickness based on the inputs you provided:
https://youtu.be/DL5bsj2FCTk?si=xuukMlexBvxzzWaH
Hope that helps,
Michael
