No results after Optistruct and Multiscale co-simulation

Sevil

Hello all,

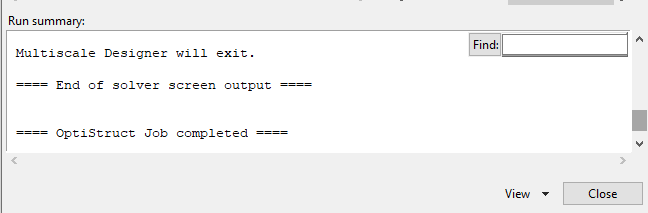

I'm new user in Multiscale designer.My aim is to create material model in Multiscale designer and of course for fiber orientation data I used Inspire mold(I have no problem about that)But in Hyperworks interface,I prepared my model for nonlinear analysis with multiscale material model and when I started solution ,as you see I got this message " job  completed" without results and  with any errors.What is the problem?

In addition my run directory is:

Please help me for the issue. Thanks in advance.

Adriano_Koga

Hi,



can you sahre the .out file of OptiStruct?

Is there anything unusual there?

What version are you using, and what kind of license do you have?

Sevil

Adriano A. Koga_21884 said:

Hi,



can you sahre the .out file of OptiStruct?

Is there anything unusual there?

What version are you using, and what kind of license do you have?

Hello Adriano,

Thank you for the feedback ,in attached file I share and also I use 2021 student version.

Sevil

Adriano A. Koga_21884 said:

Hi,



can you sahre the .out file of OptiStruct?

Is there anything unusual there?

What version are you using, and what kind of license do you have?

In addition There is no unusual situation.If you want,I can share fem file.

Rahul_P1

HI, Can you confirm you have the installation directory set in the settings (gear symbol)

Sevil

Rahul Ponginan_22560 said:

HI, Can you confirm you have the installation directory set in the settings (gear symbol)

Hello Mr.Ponginan,I hope you're well.As you see below,same your inst. directory.I have limited time and really need help about this.
