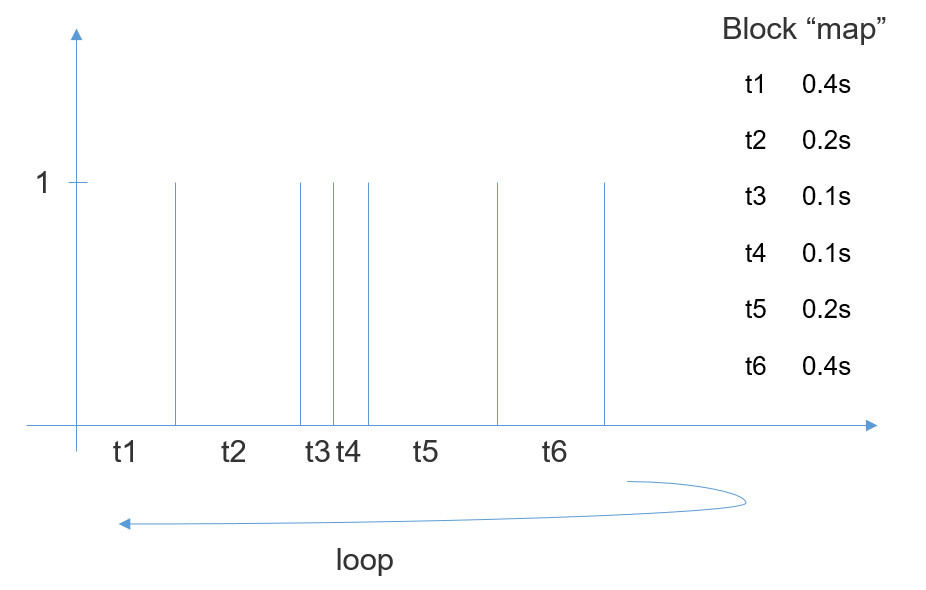

I want to produce customized pulse (or square wave) by using block ''map'' and loop it .
I have tried many methods but none of them can be achieved.
Cloud anyone help me ?
Looking for your information. Thanks a lot.
Hi Robbert,

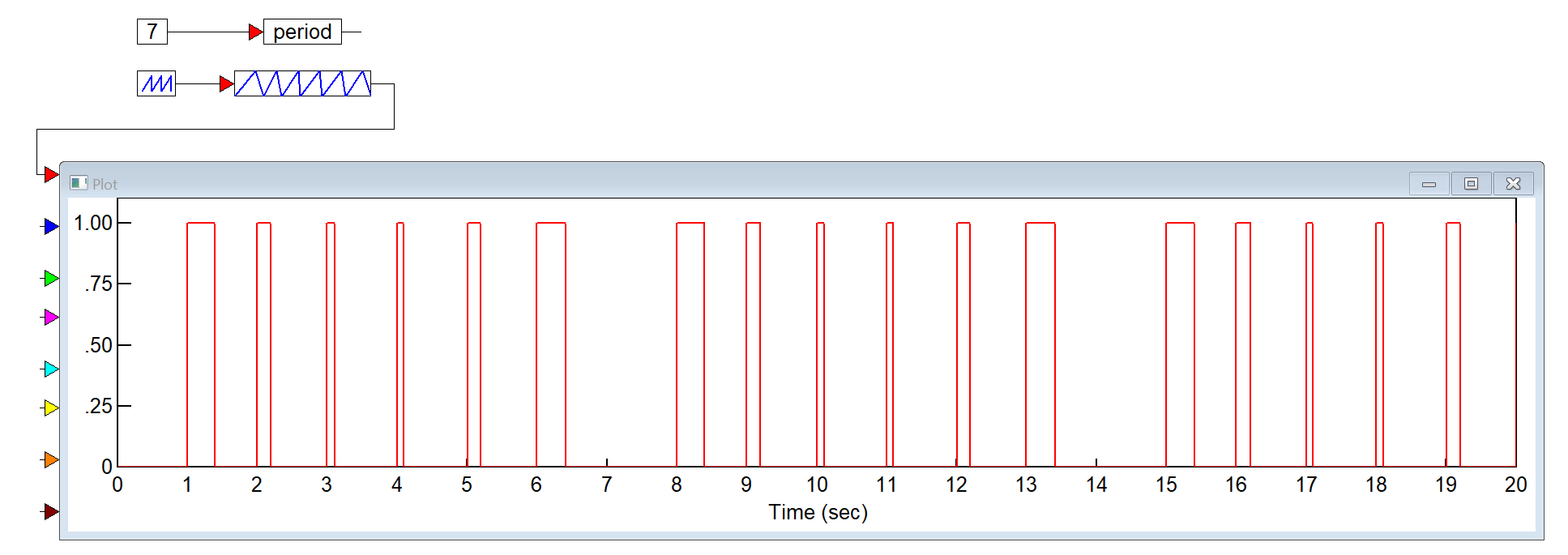

Attached is one way to do it.
Or maybe you want this:

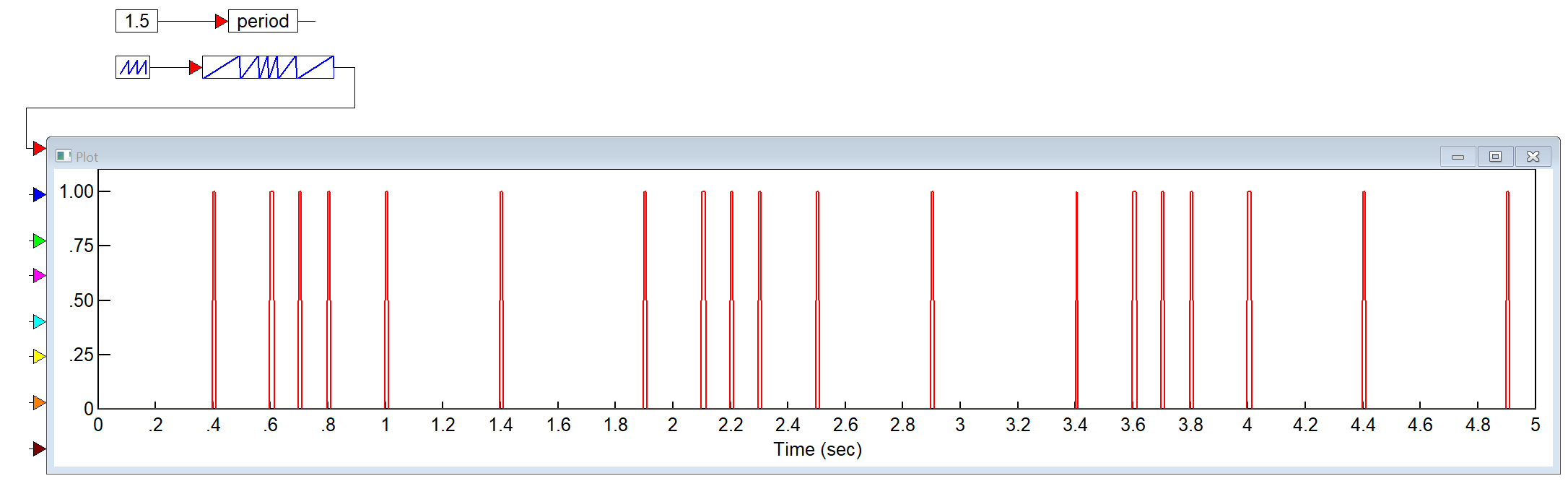

Here's yet another way to do this;
