Tips, Tricks, and Inquiries: Creating Nodal Connections between 2D and 3D Meshes

cfree

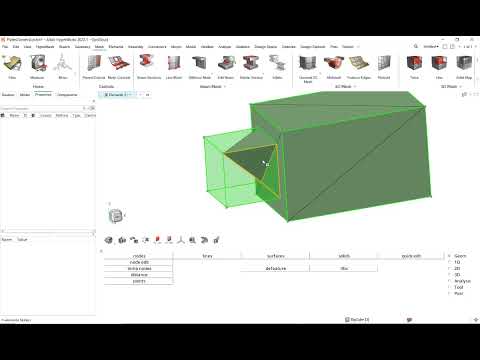

In this Tips, Tricks, and Inquiries demo we explore a couple ways to make connections between meshes in HyperWorks 2022.1.

In this video we will:

Learn how to connect adjacent 2D meshes using the Equivalence, Associate, and Imprint tools.
Use the Boolean tool to combine solid geometry
Apply the imprint tool to 3D meshes

https://www.youtube.com/watch?v=uYRTAk4reSw

In this video we will:

Learn the basics of FE Geometry
See how the Patch tool can be used to fill gaps between 2D meshes
Expand on the Patch workflow to create solid meshes that are connected without using contact or connectors

https://www.youtube.com/watch?v=wNhbwhSjSGI


Find more posts tagged with

English

HyperMesh

v2022.1

Comments

cfree

These videos were inspired by HyperWorks 2021:Working with 2D, Imprint and Fuse, where T connections are made using the Imprint, Fuse, and Split tools.
