To create user toolbars in Hypermesh
Hello everybody,
Thanks Danielle to suggest me to make this blog. I see several members searching scripts, attached files on forum difficultly (me too), hoping this blog will be easier to find!
This script will help to make user toolbar on Hypermesh classic GUI (not Hypermesh X, not Hypermesh Desktop, not Hyperview)
The latest tested version is HM 2019.1 on Windows.
1. Download below attached zip, extract it.
2. From Hypermesh menu, invoke File>Run>Tcl/Tk Scripts
3. Browse to run .../tbopts/Installer.tcl ; this will add a start-up command to C:/users/.../hmcustom.tcl
4. Restart Hypermesh, invoke menu View>Toolbars>Options... to build your own toolbars

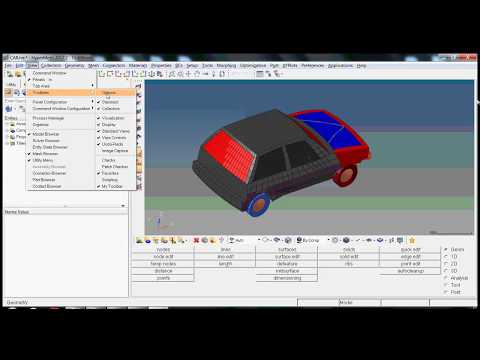

Demo clip:
https://www.youtube.com/watch?v=NqrKKGNIIpA
Comments
-
Master
What about 2021.2 Verion ?
0 -
Brian DO_21608 said:
Master
What about 2021.2 Verion ?
Extensions are the way to do this in the most recent versions. Check out the blog below for a little introduction.
https://community.altair.com/community?id=community_blog&sys_id=0c38fa1fdb7401d0cfd5f6a4e296198f
1 -
Hello Tinh, i'm Chien, a student from Vietnam.
I'm having a problem that i need to export surface pressure from ansys fluent to hyperworks. Can you tell me the way to do that?
Thank you so much and hope to hear from you soon!
0 -
Hello everyone!
I want to export the surface pressure file from Ansys fluent to Hyperworks.
Can you help me to solve this?
Thank you so much!
