Rotation of the structure

Maryam Sasani
Maryam Sasani Altair Community Member
edited May 28 in Community Q&A

Dear S-FRAME Support Team,

I hope this message finds you well.

I am currently working on a project using S-FRAME software and have encountered a challenge that I need assistance with. Specifically, I am looking to rotate the entire structure within my model and am unsure of the steps required to perform this action.

Could you please provide detailed instructions on how to rotate the total structure in S-FRAME? Additionally, any tips or best practices for ensuring accuracy during the rotation process would be greatly appreciated.

Thank you for your time and assistance. I look forward to your prompt response.

Best regards,
Tagged:

Answers

  • Tayen_Aguilar_57
    Tayen_Aguilar_57
    Altair Employee
    edited May 28

    Hello Maryam, thank you for your message.

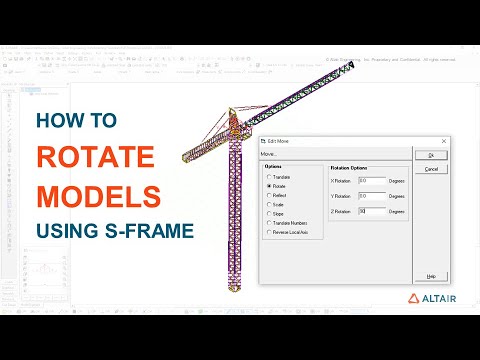

    I made a quick video to showcase S-FRAME's rotation feature, you can find it here


    https://www.youtube.com/watch?v=y_rpSNzQAlY

    This is applied to all the selected members and it's relative to the Global Coordinate System, the structure can be rotated in any of the 3 axes as shown in the video.

    If you have any other questions or issues, feel free to contact us.

    Best regards,

    Tayen Aguilar

    Altair Support
