Warning unsupported type + DOF not selectable

User: "Dogan_22589"
Altair Community Member
Updated by Dogan_22589

Hello,

i have a question regarding the loads and supports in my part. I put all my loads on surfaces. My distributed force is supposed to go around the window in the path that i have partitioned while the pressure is placed all over the backside of my part. After placing the loads i clicked on "measure weight"  and "calculate" and the following message popped up.

Warnings:

Force 2 treated as pt load.

Pressure 2 ignored, unsupported type

Support 3 treated as pt support.

Support 4 treated as pt support.

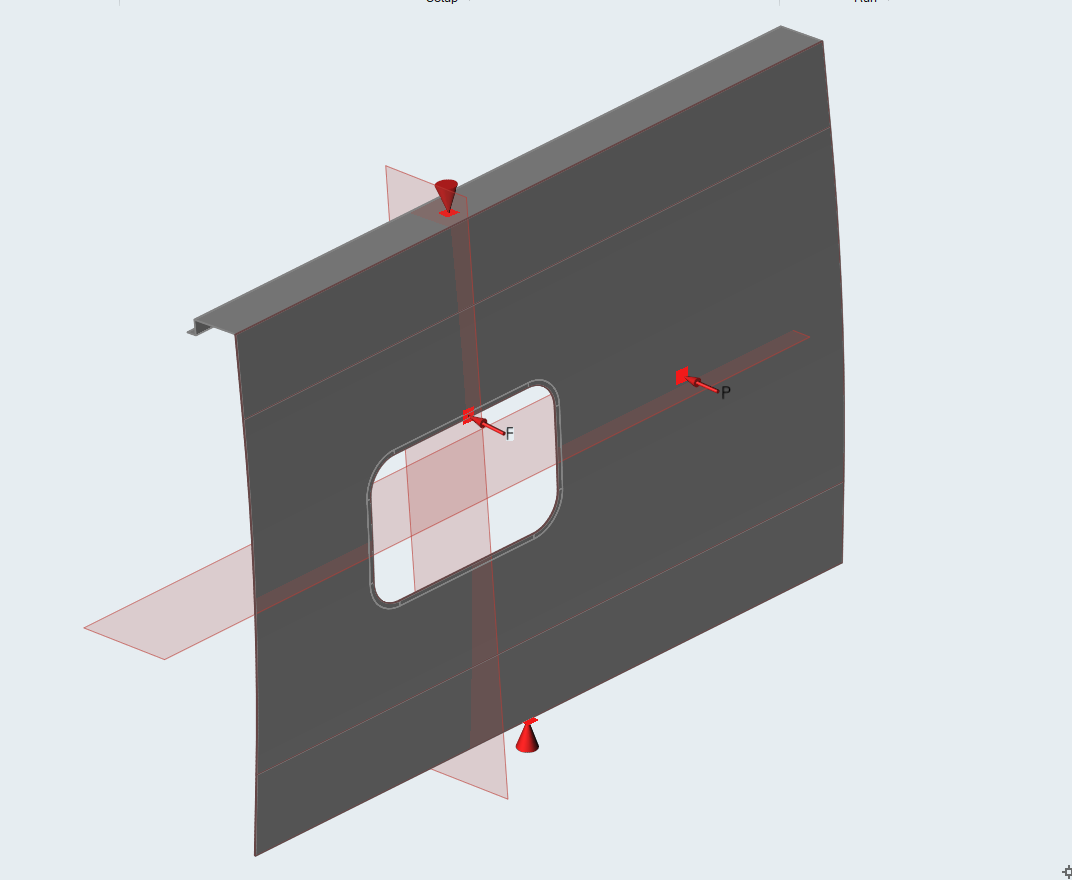

Moreover the top support (shown in image) is supposed to have a DOF regarding the rotation around the x-axis. But it is not possible for me to select the rotational DOFs at all.

All images below.

Thanks a lot for any tips on what I am doing wrong.

Kind regards,

Dogan


Find more posts tagged with

Sort by:
1 - 1 of 11
    User: "GTT Johan"
    Altair Employee
    Updated by GTT Johan

    Hi Dogan
    For the support issue, can you try to make a midsurface of the part. I think when it is solids the DOF is recognized only to have 1-3.

    /johan
