Welds are not visible

JKL_20609

Hi!

I have created spot welds from connectors in Hypermesh and I have also assigned properties and materials to them.

However, when I open them in HyperCrash, it is not visible and shows as a void in the part.

I have also created bolts in the same way and they are visible in HyperCrash.

What can be the problem?

Help!



<?xml version="1.0" encoding="UTF-8"?>

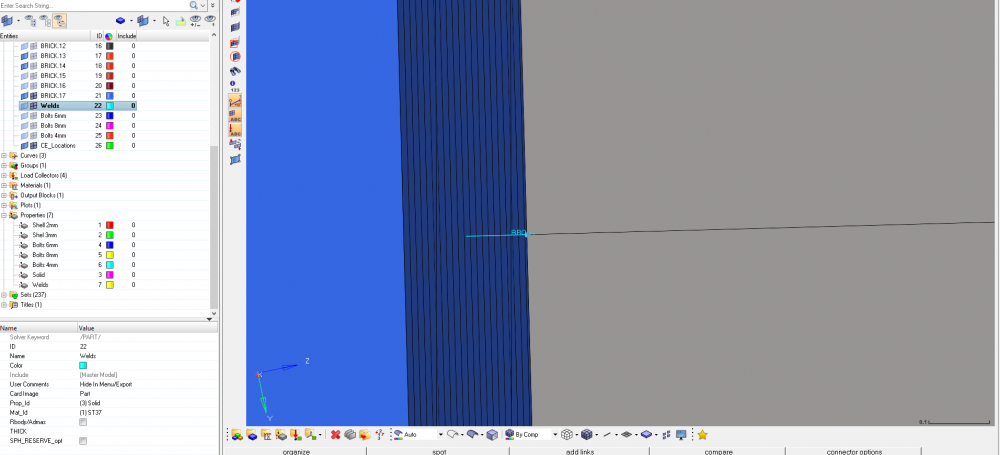

In HyperCrash

Rogerio Nakano_21179

Hi

If HyperCrash detects spring elements to simulate weld connection, and the connection is done via tied contact /INTER/TYPE2 in the model, it will sort the spotwelds out from the part.

In order to have access to the welds, you can go to 'Connections > spotweld>check' for instance.

The browser panel will have the spotwelds listed.

Regards
